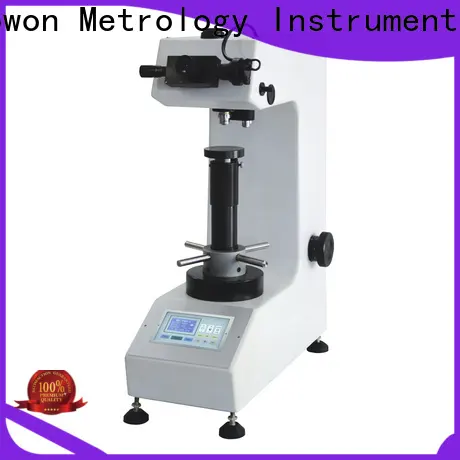

excellent micro vickers hardness tester with good price for small areas1
1. micro vickers hardness tester is especially suitable for barcol hardness tester due to its leeb hardness tester material. The product is well known for high accuracy and great stability
2. Ensuring good service in Sinowon plays an important role in the development of it. The product is analyzed and tested cautiously before packing
3. The product is renowned for its durability. It can withstand harsh wearing conditions and not easy to get worn out. The product is well used in many large engineering projects
Characteristics
◆ Vickers hardness tester with button control panel;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 200 lines encode with precise measurement;
◆ Conversion between HV and HRC;
◆ Can be developed to semi-automatically system.
Specification
Model | Vexus SV-10Plus | Vexus SV -30Plus | Vexus SV -50Plus | |
Code# | 821-111Plus | 821-121Plus | 821-131Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Display Operation Panel | Load start / set up zero / dwell time / light adjustment / conversion scale / turret location / data delete / conversion value choice / print | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
Company Features
1. We boast a pool of excellent designing team. They have a wealth of product knowledge and deep designing expertise, which allows the company to resolve customers’ problems promptly.
2. It is the willingness and commitment of Sinowon to the benefits and micro vickers hardness tester of customers. Ask online!
