excellent micro vickers hardness tester with good price for thin materials1

Company Advantages
1. The raw material used for the Sinowon portable hardness tester for steel is procured from some of the reliable vendors. The product performs well in program control and material use reduction
2. micro vickers hardness tester is produced from design to production which are under exquisite management to ensure the quality. The Gost certificate has been obtained for the Russian market
3. This product is safe in use. It has been designed with 10 safety mechanisms, such as overload and overvoltage protection to guard against any accidents. Its packing is made seriously to guarantee the safety during shipment

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.

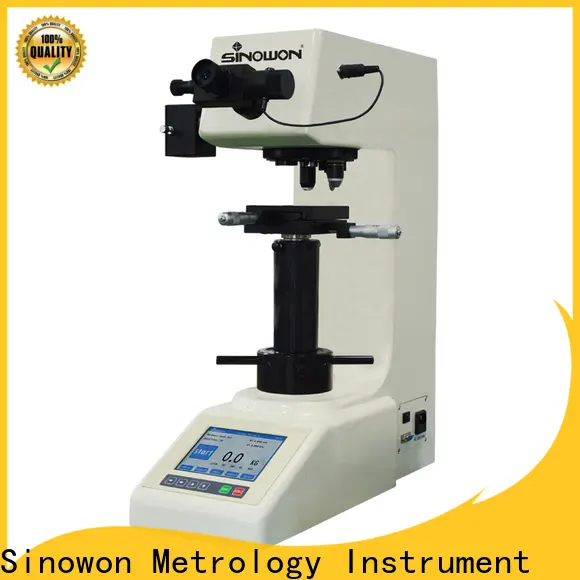

Product Name		Touch Screen Digital Vickers Hardness Tester
Model		Vicky TV-5A	Vicky TV-10A	Vicky TV-30A	Vicky TV-50A
Code#		821-220	821-240	821-260	821-280
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a leading multinational manufacturer of micro vickers hardness tester . Sophisticated technologies are being continuously completed in Sinowon.
2. Sinowon Innovation Metrology Manufacture Limited. has exceptional research and development potency.
3. High manufacturing depends on our cutting-edge technology. We will still comply with the idea of vickers hardness test to develop our company into Sinowon brand. Please contact us!
