Product Characteristics

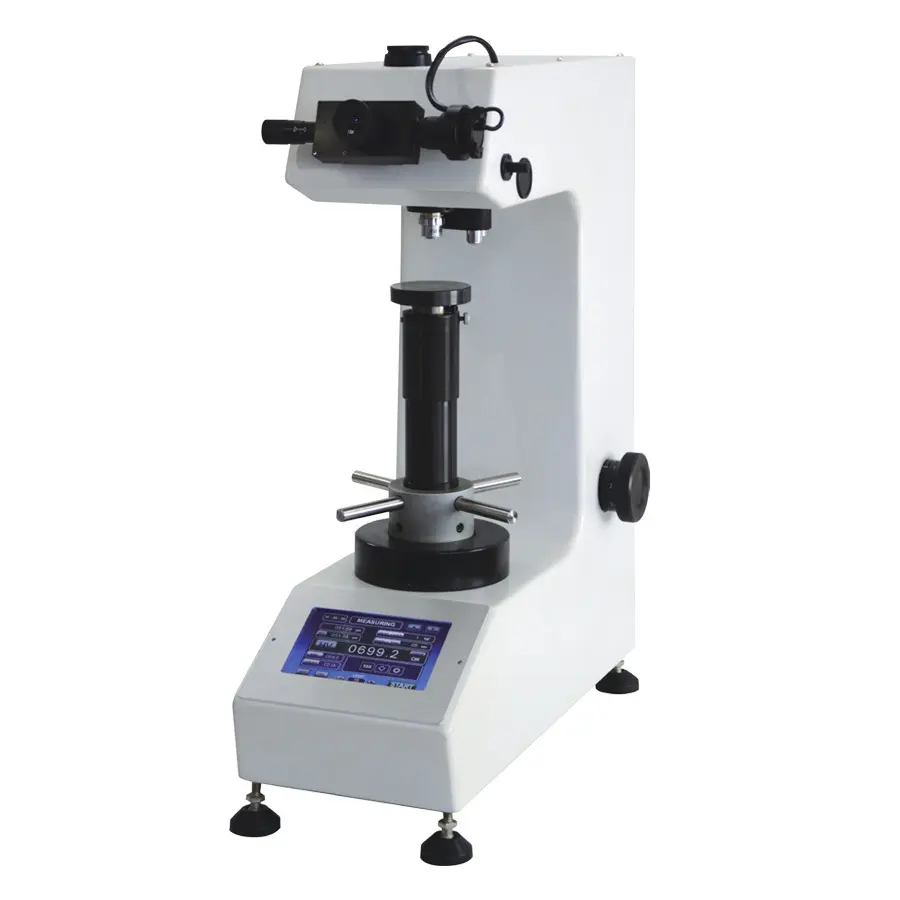

◆ Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen, high resolution, easy to operate;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ Conversion between different scales;
◆ Can be developed to semi-automatically system.
Product Application
Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.
Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.
Specification
Model | MacroVicky VH1002 | MacroVicky VH3003 | MacroVicky VH5010 | ||
Code# | 821-118 | 821-128 | 821-138 | ||
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 | |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | ||
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | ||||
Dwell Time | 5 ~ 99 s | ||||
Turret Mechanism | Automatic | ||||
Diamond Indenter | VICKERS INDENTER (FOR HV) | ||||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X , 20X | |
Option | 40x, 20x, 5X | ||||
Measuring Microscope Eyepiece | Electronic Type 10X | ||||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | ||||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | ||||
Max. Specimen Height | 200mm | ||||
Max. Specimen Depth | 160mm | ||||
Measuring Hardness Scale | HV, HK | ||||
X-Y Stage | Type | Manual | |||
Dimensions | 200 × 180 mm | ||||
Max. movement | 100 × 100 mm | ||||
Min. micro graduation | 1/100 mm | ||||
LCD-Touch Operation Panel | Load start / set up zero / dwell time / light adjustment / transformation scale turret location / data processing ( browse / delete / print )System settings( test conditions / language/Communications/factorysettings ) | ||||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | ||||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | ||||
Light Source | LED Illuminator | ||||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | ||||
Photographic Device | Capable to mount photographic device ( Option) | ||||
Dimensions | W 226 × D 560 × H 660 mm | ||||
Weight | 72KG | ||||
Power Supply | Single phase AC 220 V 50/60 Hz | ||||
