excellent vickers hardness test design for thin materials
1. Sinowon rubber hardness tester has undergone a series of tests during the manufacturing process, such as tests for tear strength, color consistency and color resistance to light. It is easy to operate, with fast speed
2. One reason for using this product for production is efficiency. It can greatly increase the speed and quality of production. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
3. The product stands out for its reliable electrical system. The system has been optimized to prevent power leakage and short circuit. The product is well used in many large engineering projects
Characteristics

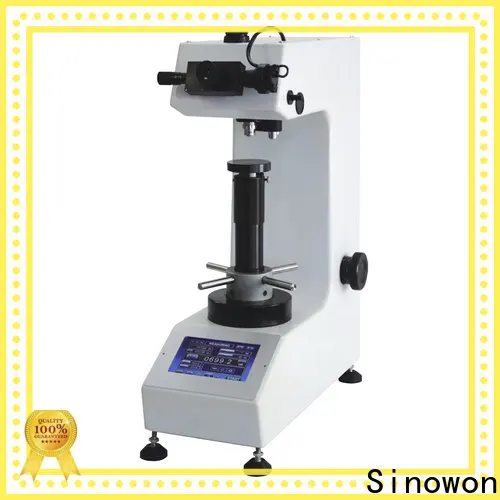

◆ Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen, high resolution, easy to operate;
◆ Strong and stable body;
◆ LED illumination, light, adjustable, long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ Conversion between different scales;
◆ Can be developed to semi-automatically system.
Specification
Model | Vicky TV-10Plus | Vicky TV-30Plus | Vicky TV-50Plus | |
Code# | 821-240Plus | 821-260Plus | 821-280Plus | |
Test Load | Kgf | 0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10 | 0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30 | 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 |
Nf | 1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Loading Mechanism | Automatic loading and releasing method 50~100 µm/s | |||
Dwell Time | 5 ~ 99 s | |||
Turret Mechanism | Automatic | |||
Diamond Indenter | VICKERS INDENTER (FOR HV) | |||
Objective | Normal | 10X , 40X | 10 X , 20X | 10X |
Option | 40x, 20x, 5X | |||
Measuring Microscope Eyepiece | Electronic Type 10X | |||
Max. Measuring length | 900 µm ( In case of 100x ) 230 µm ( In case of 400x ) | |||
Mix. Measuring unit | 0.1µm (0.01µm for CTS type) | |||
Max. Specimen Height | 200mm | |||
Max. Specimen Depth | 160mm | |||
Measuring Hardness Scale | HV, HK | |||
LCD-Touch Operation Panel | Load start / set up zero / dwell time / light adjustment / transformation scale turret location / data processing ( browse / delete / print )System settings( test conditions / language/Communications/factorysettings ) | |||
Numerical Display | D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location | |||
Print Output | Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation ) | |||
Light Source | LED Illuminator | |||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2 | |||
Photographic Device | Capable to mount photographic device ( Option) | |||
Dimensions | W 226 × D 560 × H 660 mm | |||
Weight | 72KG | |||
Power Supply | Single phase AC 220 V 50/60 Hz | |||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is an experienced manufacturer of vickers hardness test , with years of rich experience in design and production. Sinowon has established its own technology center to meet the continuous innovation of technology.
2. Manufactured by our progressive technology, vickers hardness testing machine is of exquisite performance.
3. In order to get better quality, Sinowon Innovation Metrology Manufacture Limited. attracted a large number of senior technical management elites in the micro vickers hardness tester industry. Sinowon believed that the development of company can not do without support of rubber hardness tester . Inquire online!
