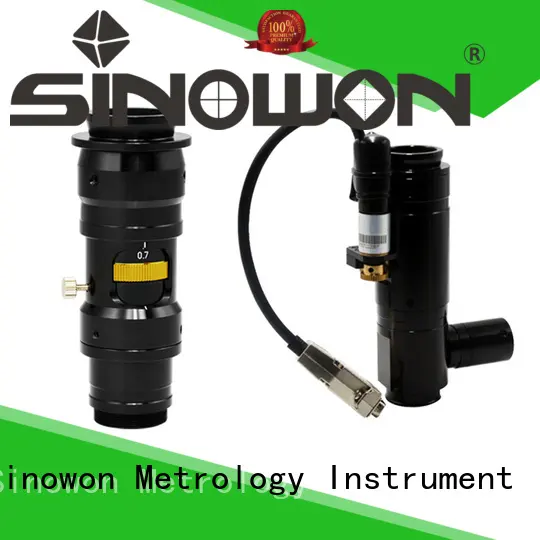

Model

Zoom745

Zoom745C

Zoom745D

Zoom745DC

Zoom745M

Zoom745HC

Type

Zoom Lens

Coaxial Illumination Zoom Lens

Detented Zoom Lens

Detented With Coaxial Illumination

Motorized Zoom

Motorized Zoom Lens With Coaxial Illumination

Zoom Control

Manual Zoom

Manual Zoom

Manual Zoom

Manual Zoom

Motorized Zoom

Motorized Zoom

Optical Magnification

0.7X~4.5X

Working Distance

90±2mm

80±2mm

Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

DOF（mm）

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

2.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution （um）

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

FOV（mm） DxHxV

2/3"

15.71x12.57x9.43

11.00x8.80x6.60

7.33x5.87x4.40

5.50x4.40x3.30

4.40x3.52x2.64

3.67x2.93x2.20

3.14x2.51x1.89

2.75x2.20x1.65

2.44x1.96x1.47

1/2"

11.43x9.14x6.86

8.00x6.40x4.80

5.33x4.27x3.20

4.00x3.20x2.40

3.20x2.56x1.92

2.67x2.13x1.60

2.29x1.83x1.37

2.00x1.60x1.20

1.78x1.42x1.07

1/3"

8.57x8.86x5.14

6.00x4.80x3.60

4.00x3.20x2.40

3.00x2.40x1.80

2.40x1.92x1.44

2.00x1.60x1.20

1.71x1.37x1.03

1.50x1.20x0.90

1.33x1.07x0.80

Max.Sensor Size

2/3"

Mount

C-Mount

Coaxial Illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination.

2. Coaxial illumination structure ensure even illumination.



Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan;Precision mechanical structure.

Motorized Zoom

1.High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control.

2.Single or double motor control system via 9-PIN RS232.

3.Stable quality performance even in the strong vibration environment.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD;

2. Fine focus range: 3mm-12mm;

3. Manual and motorized structure.
