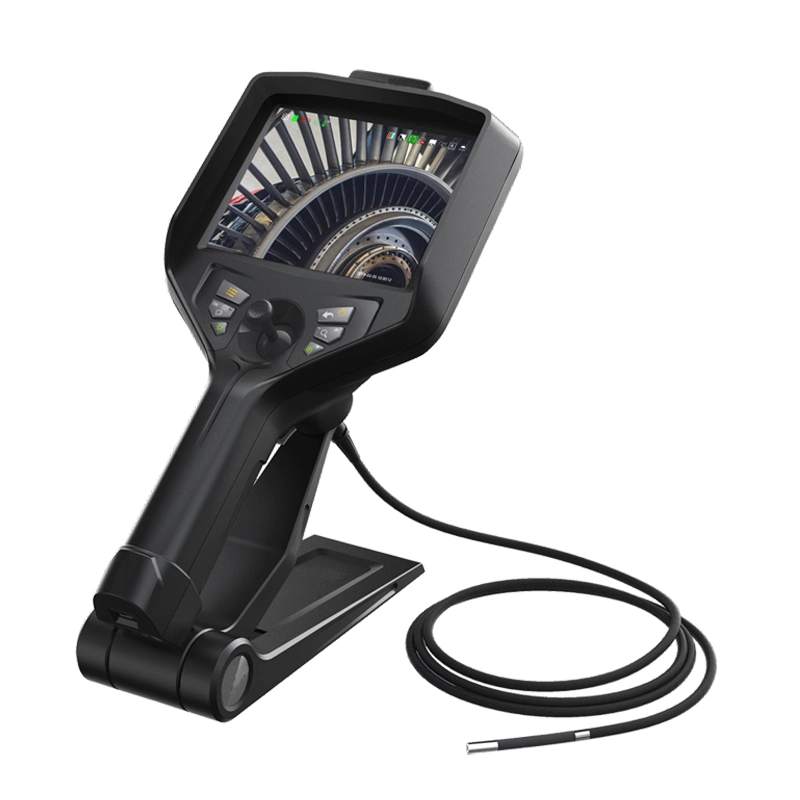

HD Intelligent Videoscope VH510 Series 1
HD Intelligent Videoscope VH510 Series 1

HD Intelligent Videoscope VH510 Series

    oops...!

    no product data.

    Go to homepage

    HD Intelligent Videoscope VH510 Series 2


    INTELLIGENT SOFTWARE


    Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection needs.

    HD Intelligent Videoscope VH510 Series 3

    White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.

    HD Intelligent Videoscope VH510 Series 4

    Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking large cavity, it can be more effective and clearer

    HD Intelligent Videoscope VH510 Series 5

    Normal Mode: HD image effect                                Negative Film Mode: Enhance the ability to compare and analyze the internal defects of the inspected objects.

     HD Intelligent Videoscope VH510 Series 6

    Support 8X zoom in/out


    FLEXIBLE ARTICULATION CONTROL


    360 ° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle 100°, even the tube reaches 10 meters.

    HD Intelligent Videoscope VH510 Series 7

    HD Intelligent Videoscope VH510 Series 8HD Intelligent Videoscope VH510 Series 9


    STRONG HARDWARE


    VH510 series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one button. It is compatible with different diameter tubes like: 2.0mm/2.2mm/2.8mm/3.9mm/6mm, as well as 3.9mm&6mm sideview tubes and 6mm dual lens tube.

    HD Intelligent Videoscope VH510 Series 10


    HD Intelligent Videoscope VH510 Series 11

    High temperature alarm function: Orange alarm when the temperature is above 65 ; Red alarm and shutdown when the temperature is more than 80 .

    HD Intelligent Videoscope VH510 Series 12

    The image can be outputted to HD display by HDMI.

    HD Intelligent Videoscope VH510 Series 13

    Original dual battery design,8 hours working time; real-time battery indication

    HD Intelligent Videoscope VH510 Series 14



    Specification


    Series

    VH510 HD Intelligent Videoscope

    Tube

    System

    Probe Diameter(mm)

    Φ2.2

    Φ2.8

    Φ3.8

    Φ6

    Camera Pixels

    400X400

    640X480

    1280x720

    Display Resolution

    640×480

    1280×960

    DOF

    3mm-50mm/5mm-80mm

    10-100mm/5 -80mm/5-150mm/50mm-∞

    FOV

    90°/120°

    Viewing Direction

    0° front view/ 90° sideview/ front   view& sideview dual lens

    Light Source

    Front ceramic light/ Rear-mounted optic fiber cold

    Illuminance

    Maximum: 100000+Lx & 0~9 levels adjustable light

    Tube Length

    1.0m

    (Customized Size)

    1.0m

    (Customized Size)

    1.0m

    (Customized Size)

    1.0m

    (Customized Size)

    Protecting Device of Durability

    42mm buffer protection device between tube and handle

    Articulation

    2-Direction / 360° joystick-control articulation

    Bending Angle

    Maximun:190°

    Probe Positioning

    Damping positioning & articulation lock device

    Wi-Fi Transmission

    Image transmission to Mobile phone, computer by   Wi-Fi(optional)



    Display

    Monitor

    System

    Display

    5.1" color IPS display, all sight viewing angle,   sunshade design

    Display Resolution

    640x480 or 1280x960

    Zoom In/Out

    8X

    Language

    English / French / German / Spanish / Japanese /

     Traditional Chinese /   Simplified Chinese / Russian / Korean

    White Balance Suppression

    5 levels adjustable

    White Balance

    Auto white balance, automatically adjusts and eliminates   speckles to achieve optimal images.

    Image Effect

    Negative film/ black & white/standard

    Temperature Indication

    High temperature alarm optional

    IP Level

    Probe/tube: IP67

    Software Function

    Playback, image parameters adjust and rotate

    Structure

    Hand-held integrated design

    Image/Video Format

    JPEG/MOV

    Comparative Measurement

    Use measuring probe and analog scale to compare and analyze   the internal defect and size of the inspected object.

    Data Port

    HDMI video output, Micro USB port with water &dust   proof device

    Working Time

    ≥8h

    Battery Capacity

    3.7V3200mAh×2

     Power Charge

    DC5V, 1A

    Weight

    ≤0.8Kg

    Compatibility

    Interchangeable monitor and tube with different diameters

    Accessories

    Standard Configuration

    Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card   reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1   set
