HD vision microscope supplier for steel products

Company Advantages
1. vision microscope is designed with the exquisite craftsmanship and commitment to customer satisfaction. It is aimed at more than 60 countries and regions for exports
2. With its foreseeable development prospects, this product is worth expanding over the market. The production is supported by professional engineers
3. This product is safe to use. It has undergone a series of rigorous electrical testing in production and has meet the highest safety standards. The product is well used in many large engineering projects

◆ Integral design, exquisite, fashion, generous;

◆ Built-in high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos;

◆ With high definition 0.7~4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification;

◆ With adjustable LED surface reflection illumination, is able to control brightness independently;

◆ With 2 mega pixel auto focus camera, no need to waste time for manual focus frequently;

◆ Multiple optional mobile control platform, ensure precision position measurement;

◆ With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.

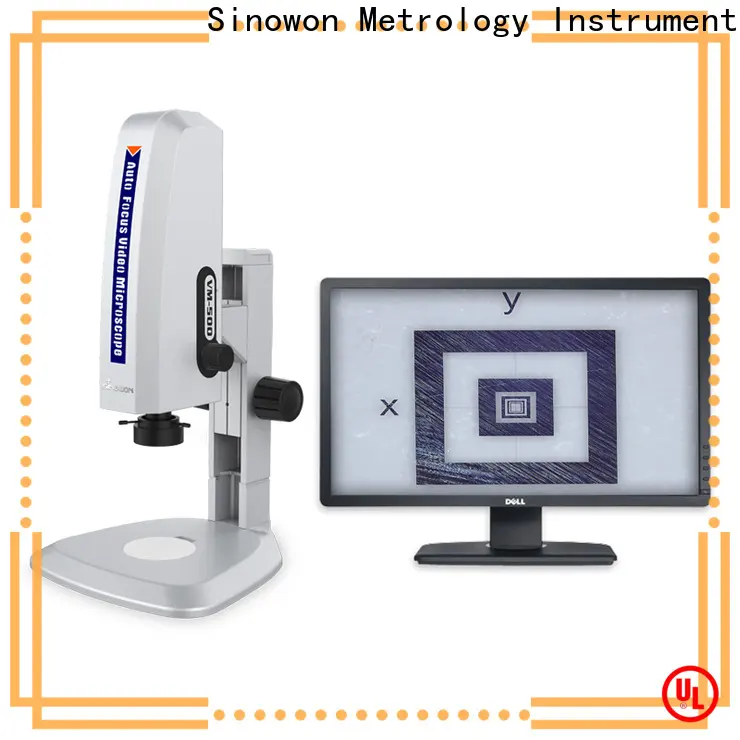

Product Name	Auto Focus Video Measuring Microscope
Model	VM-500Plus
Code#	#451-450P
Electronic Magnification	32X-206X ( HDMI 16:9 24”Monitor）
Optical Objective	0.7X~4.5X Zoom Lens
	Zoom ratio：6.5:1
	0.5X C-mount camera adapter mirror
Camera Parameters	2MPixel（1920*1080）
	Image Size:1/2.8”
	Frames：1080P@60fps
Measuring Function	Linear dimensions such as distance, perimeter, area, angle,   radian, width, height, and radius elements are measured
Measurement Accuracy	0.02mm~0.003mm
Illumination	Adjustable LED Surface Illumination
Microscope Stand	Z-axis Travel: 100mm
Electrical Parameters	AC90~240V/50~60HZ
Dimension	375*285*500 mm
Weight	6.5Kg

Company Features
1. The cutting edged technology of Sinowon Innovation Metrology Manufacture Limited. is internationally recognized.
2. Our mission is to establish strong relationships with all our partners and to ensure client satisfaction by the highest quality products.
