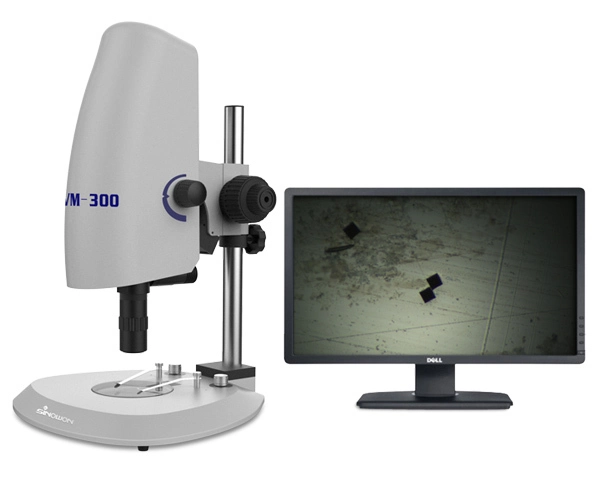

Coaxial Illumination Video Microscope VM-300 1
Coaxial Illumination Video Microscope VM-300 1

Coaxial Illumination Video Microscope VM-300

    oops...!

    no product data.

    Go to homepage

    Coaxial Illumination Video Microscope VM-300 2

    Application:
    Video Microscope is widely used in observing  translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry such as metal ceramic, integrated block, printed circuit boards, liquid crystal plate, film, fiber, coating and other non-metallic materials. Trinocular Video Microscope is also suitable for medicine, agriculture, forestry, public security, schools, scientific research departments for observation and analysis.


    Product Feature


     Integral design, exquisite, fashion, generous;

     With high definition 0.7~4.5X horizontal zoom lens, it is more convenient and fast to switch objective magnification, and it can enlarge with high magnification with optional APO 5X/10X lens;

     With precision coarse and fine lifting system, ensure perfect focus and clear image;

     With adjustable LED bottom and surface illumination, when equipped with APO lens, it can used contour illumination and control brightness independently;

     Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;

     Simple external interface: 12V power supply input and USB/VGA video output, SD card hole to make installation simpler.


    Specification



    Product NameCoaxial Illumination Video Microscope
    ModelVM-300
    Code#451-430
    Electronic Magnification16X~206X (16:9  21”Monitor)
    Optical Objective0.7X~4.5X horizontal zoom lens; Zoom ratio 6.5:1; 1X C-mount Camera Adapter;10X APO Lens: WD:35mm
    Camera Parameter2 million pixel (1920*1080);Image Size:1/2.86”;Frames Per Second:30fps
    Camera Function

    Photograph and Video Record

    Cross Line

    VGA/USB Output, SD Card Storage

    OSD: Comprehensive digital UI design, Wireless USB 2.0 Mouse Operation

    White Balance; Brightness Control; Digital Noise Reduction

    Picture Frozen,10X Digital Magnification

    Measuring FunctionOptional PC System and measuring software can measure image in the field of view.
    IlluminationBottom: Adjustable LED Illumination;Surface: Adjustable LED Illumination
    Microscope Stand

    Z-axis Travel: 150m

    mCoarse/Fine Lifting System

    Electrical ParametersAC90~240V;50~60HZ
    Dimension290*280*400 mm
    Gross/Net Weight7.0/4.7Kg


    Standard Delivery:


    Product NameSpecification
    Microscope Main BodyVM-300
    Power AdapterDC12V
    MouseWireless
    SD Card8G
    Operation Manual/Warranty Card/Certificate/Packing listVM-300


    Camera Parameter:


    ImageImage Sensor1920*1080 FULL HD Sensor 1/2.86”
    Effective Pixel1920*1080
    Pixel Dimension2.75*2.75um
    Frame Rate30
    DefinitionFULL HD
    FunctionWhite BalanceAuto, Manual
    Digital MagnificationSupport 10X zoomed in and out
    Brightness ControlAuto, Manual
    ColorR/G/B Adjustable
    FrozenSupport
    OSDComprehensive digital UI design, Mouse Operation
    Enhance Edge DefinitionSupport
    Photograph and Video RecordSupport
    Cross CursorSupport, multiple color optional, coarse/fine adjustable
    Horizontal and Vertical LineSupport, multiple color, four horizontal and vertical line, position movable, coarse line adjustable
    Image ComparisonSupport
    Wide DynamicSupport
    Digital Noise ReductionSupport
    InterfaceVGA InterfaceStandard VGA output
    Storage InterfaceSD Card Slot
    USB InterfaceStandard USB2.0 Interface, can connect to mouse and PC System


    Field of View:


    Auxiliary

    objective

    Field of view (0.5X Camera Adapter)


    Remark

    0.7X1X2X3X4X4.5X
    LengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonal

    0.5X

    WD:108mm

    Magnification 0.18X-1.12X


    Optional

    25.2922.8634.0917.7016.0023.868.858.0011.935.905.337.954.434.005.973.933.565.30

    1.0X

    WD:91mm

    Magnification 0.35X-2.25X


    Standard

    12.6411.4317.048.858.0011.934.434.005.972.952.673.982.212.002.981.971.782.65

    2.0X

    WD:35.3mm

    Magnification0.70X-4.50X


    Optional

    6.325.718.524.434.005.972.2122.981.481.331.991.111.001.490.980.891.33


    10X APO

    WD:35mm



    Optional
    12.64
    114.3
    170.4
    88.580.0119.344.340.059.729.526.739.822.120.029.819.717.82.65
