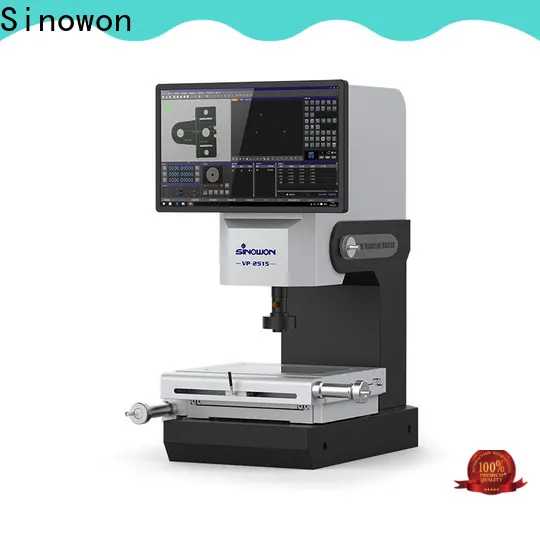

horizontal visual measurement manufacturer for thin materials
1. The necessary tests for Sinowon comparator machine have been conducted. These tests include voltage compatibility, electromagnetic safety, electric shock hazards, and materials insulation performance. The product performs well in program control and material use reduction
2. Thanks to its breathability, this product is not likely to cause many common skin problems including blisters, rashes, and infections. The Gost certificate has been obtained for the Russian market
3. The product quality completely conforms to the industry standard. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. The products have passed strict quality examination and inspection before they leave the factory. Imported materials and accessories are used in product manufacturing
5. The products are internationally certified and have a longer service life than other products. It is well recognized by more than 5000 customers
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200mm;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption.
Specification
| Product Name | Vertical Video Projector | ||||||||
| Model | VP-2010 | VP-2515 | VP-3020 | ||||||
| Code# | 541-200 | 541-210 | 541-220 | ||||||
| Working Stage Travel | 200x100mm | 200x150mm | 300x200mm | ||||||
| Focusing Travel | 150mm | ||||||||
| Measurement Accuracy* | ≤3+L/200um | ||||||||
| Resolution | 0.0005mm | ||||||||
| Load Capacity | 10kg | ||||||||
| CCD | HD700 TVL Color CCD | ||||||||
| Zoom Objective Lens ** | HD 6.5X Detented Zoom Lens | ||||||||
| Optical Magnification:0.7X-4.5X; Video Magnification:26X~172X(21.5” LCD) | |||||||||
Field of View (mm) Diagonal*Horizontal*Vertical | Lens Magnification | 0.7X | 1X | 2.0X | 3.0X | 4X | 4.5X | ||
| 1/3”CCD | 8.57x6.86x5.14 | 6x4.8x3.6 | 3x2.4x1.8 | 2x1.6x1.2 | 1.5x1.2x0.9 | 1.33x1.07x0.8 | |||
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination | ||||||||
| Contour: LED Parallel illumination | |||||||||
| LED Laser navigation illumination | |||||||||
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ | ||||||||
| Measurement Software | iMeasuring 2.1 | ||||||||
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit | ||||||||
| Power | AC110V/60Hz; 220V/50Hz,600W | ||||||||
| Dimension(L×W×H) | 1460x1120x580mm | 1725x675x620mm | 1725x675x760mm | ||||||
| Weight | 280kg | 330kg | 380kg | ||||||
