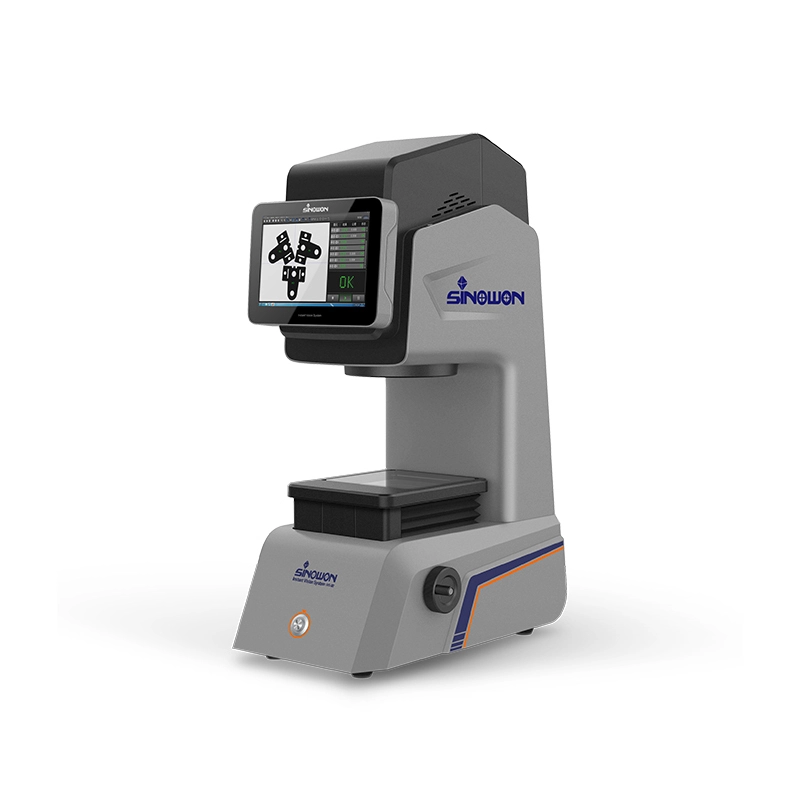

Instant Vision measurement System 1
Instant Vision measurement System 1

Instant Vision measurement System

    oops...!

    no product data.

    Go to homepage


    Instant Vision measurement System 2



    Product Feature


    High accuracy and excellent repeatability

    High depth of field, low distortion double telecentric lens, no need to repeat focus.

    Software processes the image by the way of Sub-pixel edge detection and automatic removal of burrs and outliers and the least-square method to ensure accuracy.

    Friendly operation

    Automatic location and orientation correction, automatically detect and measure based on the recorded shape of the sample, measure with a click of button.

    Efficient batch measurement

    Automatically identify multiple parts, test elements, then conduct automatic measurement, satisfied with batch measurement requirements.

    Entire image, no need to move the working stage, both high efficiency and high accuracy.

    Improve efficiency, save labor cost, eliminate operator error.

    Quality Control and Statistical Process Control (SPC)

    Automatic memory and output measuring values, and make test data simple applied.


    Technical Specification



    ModeliVS-30iVS-60iVS-80iVS-160
    Code#500-030500-060500-080500-160
    Lens0.3X Double Telecentric Lens0.17X Double Telecentric Lens0.088X Double Telecentric Lens0.088X Double Telecentric Lens
    Working Distance110 mm110 mm120 mm390mm
    Wide FieldØ 30mm(28x24)Ø 60mm(56x50)Ø116mm(94x76)Ø229.6mm(146.7x110)
    Measurement Accuracy±2um±3um±4um±7um
    Repeatability Accuracy±1um±2um±2um±5um
    Camera2/3’’ 5 million pixel B/W camera (Ethernet)
    IlluminationDigital controls, automatic memory
    Telecentric Green LED Contour illumination
    Ring White LED illumination
    PC SystemDELL (I5 Intel processors)
    MonitorsBuilt-in 10.4 inch LCD Monitor(1920*1080)
    External 21.5 inch LCD Monitor(1920*1080)
    Measuring SoftwareiMeasuring 2.0
    Measuring AmountMax.99
    Test Time<5S (Less than 100 tests)
    Output dataTest data, reports, determine the results (OK, NG, WAIT), etc
    Function2D measurements: points, lines, circles, arcs, angles, distance, oval, O-rings, Groove, rectangle, parallelism
    Auxiliary FunctionIntersection, parallel, perpendicular, tangent, bisection.
    Geometric TolerancesDimension tolerances and position tolerances, tolerances of form and position (Point position concentricity, straightness, parallelism, roundness, straightness, profile, etc)
    Measurement ModeManual / Automation
    SPC Data Management and Control
    CAD Data Input / Output
    Power SupplyAC100~240V,50~60Hz


    Application



    Instant Vision measurement System 3

    It is widely used in quick batch measurement of precision screws, precision springs, gears, cell phone case, cell phone glass, precision metal parts and other parts in small size.


    Product Details



    Instant Vision measurement System 4
    Instant Vision measurement System 5
    Instant Vision measurement System 6
