linear scales i vision software for sale personalized for commercial
1. i vision software for sale is designed and assembled in state-of-the-art production plant which meets the latest lean manufacturing and quality standards. Its quality and accuracy are improved every year
2. This product will provide exclusivity to space. Its look and feel will help reflect the individual style sensibilities of the owner and gives the space a personal touch. The quality is reliable and the service life is long
3. industrial vision software solution perfects the performance of i vision software for sale during its actual use. The product performs well in program control and material use reduction

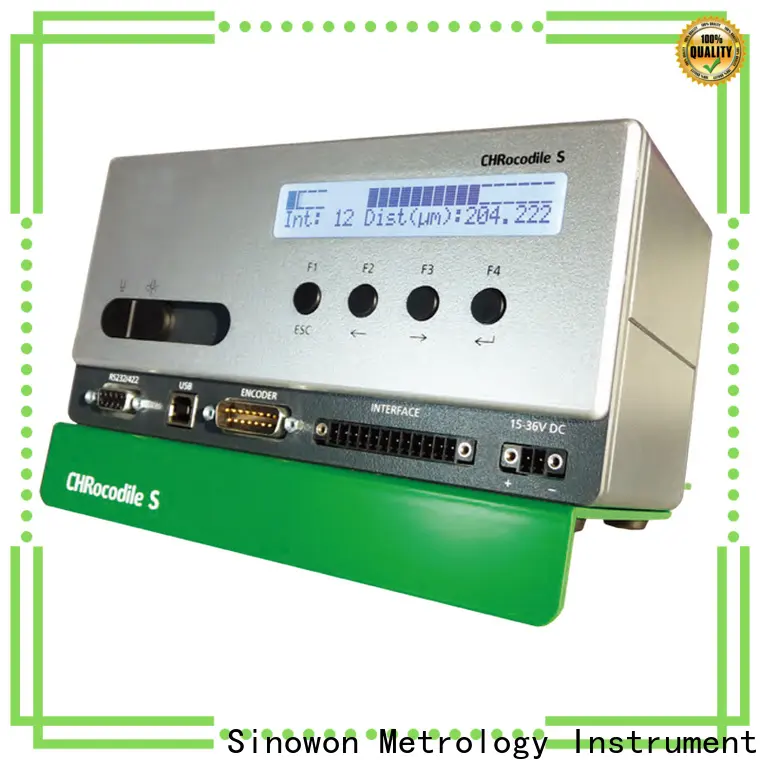

The CHRocodile S optical sensor is the all-rounder with an excellent price/performance ratio. It is perfectly suited for challenging measuring tasks, such as the non-contact measurement of topography and thickness. The sensor employs two different methods of measurement and thus is able to measure thicknesses of a wide measuring range.
The extraordinarily high dynamic response and the outstanding signal-to-noise ratio of the CHRocodile sensors ensure the best measuring results on surfaces with differing reflectivity and from different angles.
Characteristics
EFFICIENT
◆Precise
◆Rapid
◆Non-contact
VERSATILE
◆Distance and topography
◆Wide thickness measuring range
◆Measurements on all surfaces
◆Inline and offline
User Friendly
◆Maintenance-free
◆Simple to integrate
◆Nondestructive measurement
◆Robust
◆Automatic light control
Specification
Application | Distance, thickness |
Measurements /second | 32 - 2000 |
Interferometric Measuring Range 1) | 3 μm - 180 μm |
Chromatic Measuring Range | Depends on optical probe |
Pitch Error 2) | < 10 -3 |
Linearity Error 2) | < 3.3 x 10 -4 x upper measuring range limit |
Resolution | 10 -7 x upper measuring range limit |
Reproducibility | 9 x 10 -5 x upper measuring range limit |
Number of measuring channels | 1 |
Synchronization with external devices | Trigger input, synchronizing output, 3 encoder inputs |
Interface | USB, RS-232, RS-422, 2 x analog (0 V to 10 V, 16 Bit), LVDT 3) |
Transfer Rate | RS-232 (9600 - 921600 Baud); RS-422 (9600 - 921600 Baud); USB: virtual comport (921600 Baud) |
Light Source | LED |
Length Optical Fiber4) | 2 m - 40 m (multi mode fiber) |
Fiber Connection | E 2000 |
Operating Temperature | +5°C up to +50°C |
Dimension (w x h x d) | 200 mm x 100 mm x 93 mm |
Weight | 1.1 kg |
Supply Voltage | 16 - 30 V DC (with separate power supply 90 - 264 V AC) |
Rated Power | 10 W |
1) Optical length
2) Measuring accuracy = linearity error + (pitch error x measuring value)
3) Optional
4) Metal cover up to 15 m also available
Company Features
1. As a renowned i vision software for sale supplier, Sinowon excels in producing high quality computer vision price .
2. Sinowon Innovation Metrology Manufacture Limited. has the technology and experience to improve quality machine vision programming .
3. Sinowon will continue to serve every customer with professional service. Get quote!
