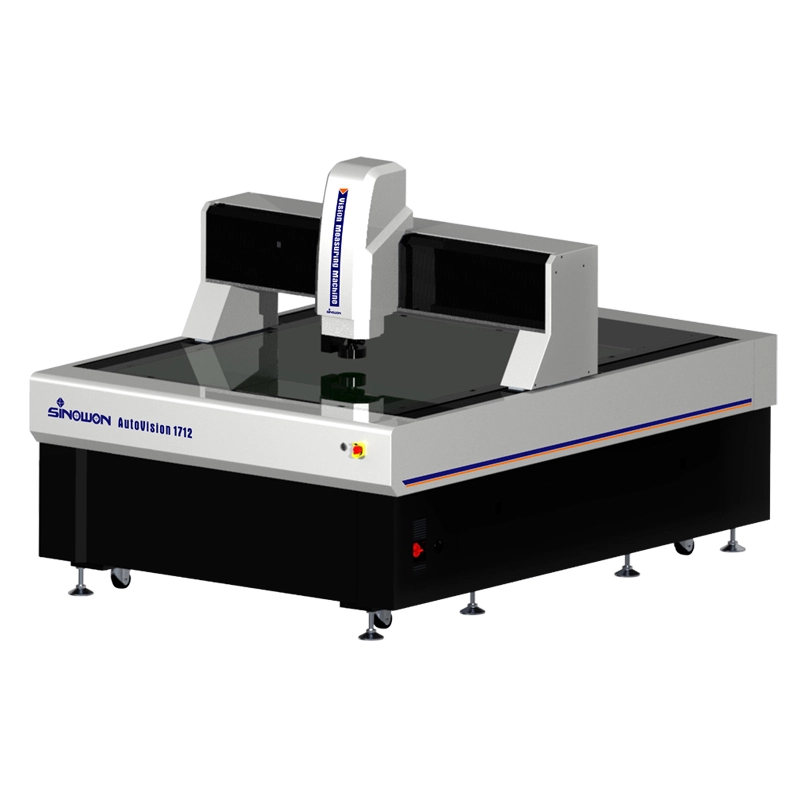

2.5D AutoVision Super-travel-size Automatic Video Measuring System
Product Feature
◆ Moving bridge structure, measurement workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ Marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.001mm, high accuracy, great stability;
◆ Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
◆ Optional laser probe, it can also be customized according to customer request;
◆ Optional 3D Touch probe is available.
.
Specification
| Commodity | 2.5D Super-travel-size Automatic Vision Measuring Machine | |||||||||
| Model | AutoVision 1008 | AutoVision 1210 | AutoVision 1512 | AutoVision 1712 | ||||||
| Code# | 526-210 | 526-220 | 526-230 | 526-240 | ||||||
| X-Y axis Travel(mm) | 1000x800mm | 1200x1000mm | 1500x1200mm | 1700x1200mm | ||||||
| Z axis Travel(mm) | 200mm | |||||||||
| X/Y/Z 3-axis Linear Scale | Imported Open Linear Scale, resolution：1mm | |||||||||
| Guidance Method | Imported P grade linear guide，double-track double slider guide | |||||||||
| Operation Method | Joystick controller, Mouse operation, automatic detection program | |||||||||
| Accuracy* | XY Axis：≤4+L/200(um) | |||||||||
| Z Axis：≤5+L/200 (um) | ||||||||||
| Repeatability | 5um | |||||||||
| Video System** | High definition Digital Camera, Image navigation system | |||||||||
| 6.5X Automatic Zoom Lens; | ||||||||||
| Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | ||||||||||
| Field of View mm *** | Lens | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | |||
| 1/1.8"CCD | 12.86x10.29x7.71 | 9.00x7.20x5.40 | 4.50x3.60x2.70 | 3.00x2.40x1.80 | 2.25x1.80x1.35 | 2.00x1.60x1.20 | ||||
| Illumination | 5-ring 8-division 0~255 grade continue adjustable | |||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | |||||||||
| Load Capacity | 50Kg | |||||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | |||||||||
Standard Delivery:
| No | Product Name | No | Product Name |
| 1 | Automatic measuring software | 8 | 6.5X Automatic Zoom Lens |
| 2 | Optical calibration plate | 9 | 5-ring 8-division LED illumination |
| 3 | Motion controller | 10 |
Imported 1/1.8“ colorful industry camera |
| 4 | Imported Lineal scale 0.001mm | 11 | Video Capture card |
| 5 | Operating handle | 12 | PC and monitor |
| 6 | Certification of qulity | 13 | Manual opeartion |
Optional Delivery:
| No | Product Name | No | Product Name |
| 1 | Import MCP probe | 4 | Coaxial zoom lens |
| 2 | Imported Laser sensor | 5 | 2X objective lens |
| 3 | 3D measuring software | 6 | 0.5X objective lens |
