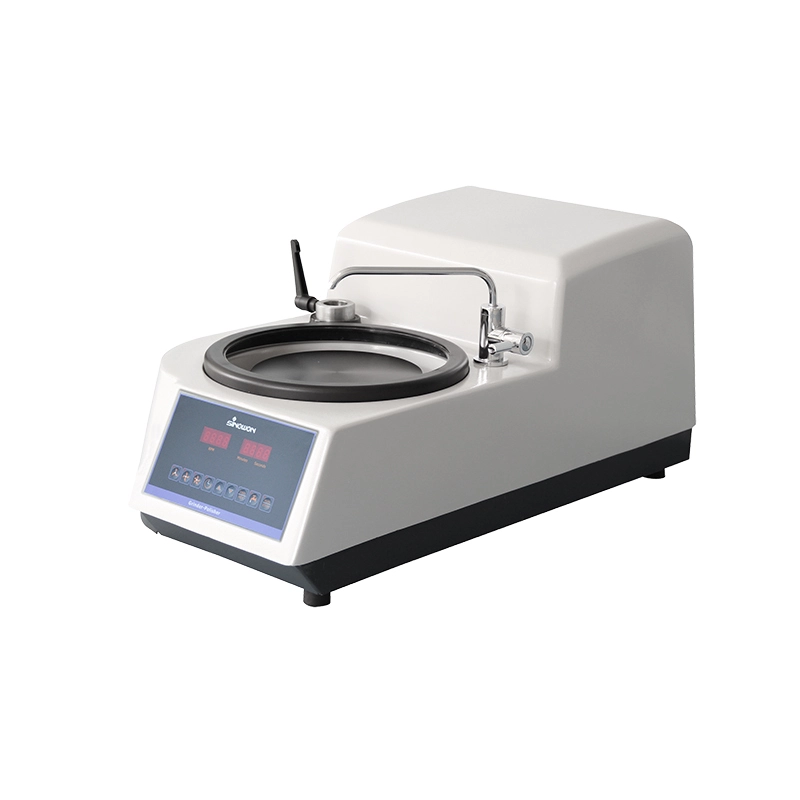

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 1

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 2

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B

Model:

GP-1B; GP-2B

Accuracy:

≤3+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 3

Product Feature

◆ Variable speed, multiple usage, metallographic sample rough grinding, finishing grinding, rough polishing & finishing polishing, it is ideal for metallographic laboratory as well as for industrial or production applications.

◆ Efficient and low-noise motor and controlling system, the machine running is reliable and low-noise.

◆ Working wheels installed for precision grinding and surface dealing can make sample surface smooth.

◆ Elegant GRP ( glass reinforced plastic) construction, rugged and durable, anti-rust.

◆ Pluggable universal faucet, convenient cleaning work area.

◆ Anti- dust Cover plate, preventing the base from dust and impurities.

◆ Removable Anti-water rings.

◆ Standard transparent bowl liner, preventing the working area from corrosion, avoiding debris build-up.

Specification

Description	GP-1B	GP-2B
Work Disk Dia	φ203mm Standard	φ203mm Standard
Work disk jerk value	0.005/100mm	0.005/100mm
Speed (rpm)	50-1000rpm	50-1000rpm
Input Power	220v50/60Hz(single phase)	220v 50/60Hz(single phase)
Motor Power	550w	550w
Size W x H x D	710 x 430 x 330mm	710 x 760 x 330mm
Weight	46kg	70kg

Standard Accessories

Sandpaper, Buckle, Anti-water rings, Anti- dust Cover r, Sandpaper, Polishing cloth, Inlet and outlet pipe, Product Manual

Product Name	GP-1B	GP-2B
203mm Working Disk	1	2
203mm Sand Paper	1	2
Anti-water Rings	1	2
Anti- dust Cover	1	2
Inlet Tube	1	1
Outlet Tube	1	1
Power Line	1	1
Product Manual	1	1
Packing List	1	1

Option Accessories

Diamond grinding disc, magnetic disc, magnetic anti-sticking disc, diamond spray, diamond suspension, diamond grinding paste, alumina polishing powder, alumina suspension, silicon dioxide suspension.

Product Name	Specification	Product Name	Specification
Working Disk	9, 10 inch	Sand Paper Ring	9, 10 inch
Glue Magnetic Disk	8, 9, 10 inch	Magnetic anti sticking plate	8, 9, 10 inch

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 4

Pluggable Tap

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 5

Integrated Forming High Strength Shell

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 6

Diamond Disk（Optional）

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 7

Fine-grinding Disc

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 8

Magnetic Polishing System

Metallographic Grinding &Polishing Machine Single Wheel Grinder Polisher GP-1B Double Wheel Grinder Polisher GP-2B 9

Control Panel Easy Operation
