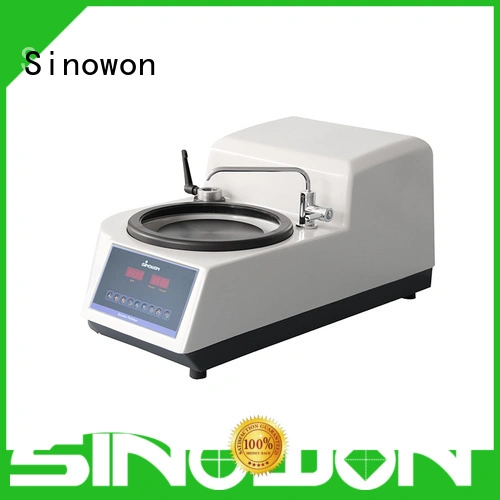

metallurgical testing equipment gp1000agp2000a for electronic industry Sinowon
- Sinowon always insists on the idea that service comes first. We are committed to fulfilling customers' needs by providing cost-effective services.
1. The manufacturing process of Sinowon metallurgical testing equipment is safe and reliable.
2. The product is not susceptible to high temperatures. The wood materials used are kiln dried and measured for moisture to prevent any distortion.
3. The future development prospects of this product are worth looking forward to.
4. Fully meets the customer requirements, it will have good market prospects.
Product Feature
◆ Variable speed, multiple usage, metallographic sample rough grinding, finishing grinding, rough polishing & finishing polishing, it is ideal for metallographic laboratory as well as for industrial or production applications.
◆ Efficient and low-noise motor and controlling system, the machine running is reliable and low-noise.
◆ Working wheels installed for precision grinding and surface dealing can make sample surface smooth.
◆ Elegant GRP ( glass reinforced plastic) construction, rugged and durable, anti-rust.
◆ Pluggable universal faucet, convenient cleaning work area.
◆ Anti- dust Cover plate, preventing the base from dust and impurities.
◆ Removable Anti-water rings.
◆ Standard transparent bowl liner, preventing the working area from corrosion, avoiding debris build-up.
Specification

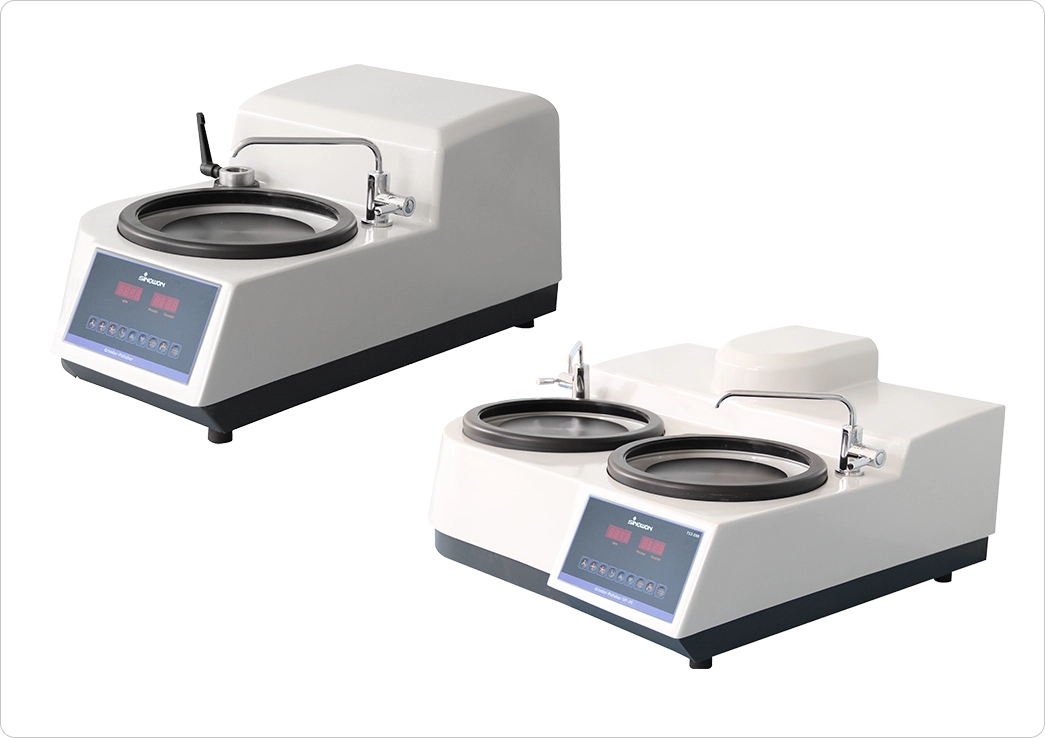

| Description | GP-1B | GP-2B |
| Work Disk Dia | φ203mm Standard | φ203mm Standard |
| Work disk jerk value | 0.005/100mm | 0.005/100mm |
| Speed (rpm) | 50-1000rpm | 50-1000rpm |
| Input Power | 220v50/60Hz(single phase) | 220v 50/60Hz(single phase) |
| Motor Power | 550w | 550w |
| Size W x H x D | 710 x 430 x 330mm | 710 x 760 x 330mm |
| Weight | 46kg | 70kg |
Standard Accessories
Sandpaper, Buckle, Anti-water rings, Anti- dust Cover r, Sandpaper, Polishing cloth, Inlet and outlet pipe, Product Manual
| Product Name | GP-1B | GP-2B |
| 203mm Working Disk | 1 | 2 |
| 203mm Sand Paper | 1 | 2 |
| Anti-water Rings | 1 | 2 |
| Anti- dust Cover | 1 | 2 |
| Inlet Tube | 1 | 1 |
| Outlet Tube | 1 | 1 |
| Power Line | 1 | 1 |
| Product Manual | 1 | 1 |
| Packing List | 1 | 1 |
Option Accessories
Diamond grinding disc, magnetic disc, magnetic anti-sticking disc, diamond spray, diamond suspension, diamond grinding paste, alumina polishing powder, alumina suspension, silicon dioxide suspension.
| Product Name | Specification | Product Name | Specification |
| Working Disk | 9, 10 inch | Sand Paper Ring | 9, 10 inch |
| Glue Magnetic Disk | 8, 9, 10 inch | Magnetic anti sticking plate | 8, 9, 10 inch |

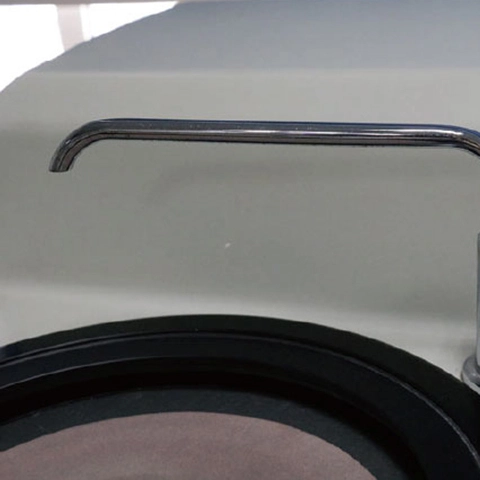

Pluggable Tap

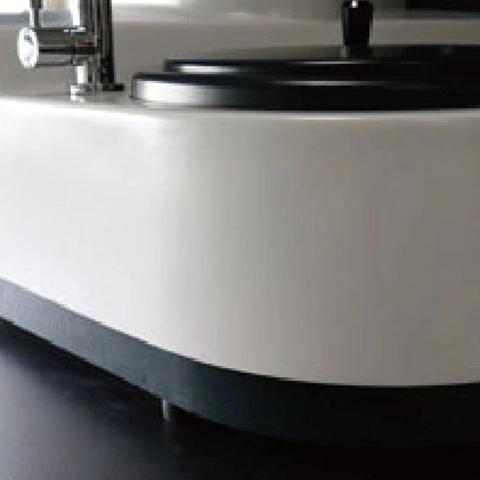

Integrated Forming High Strength Shell

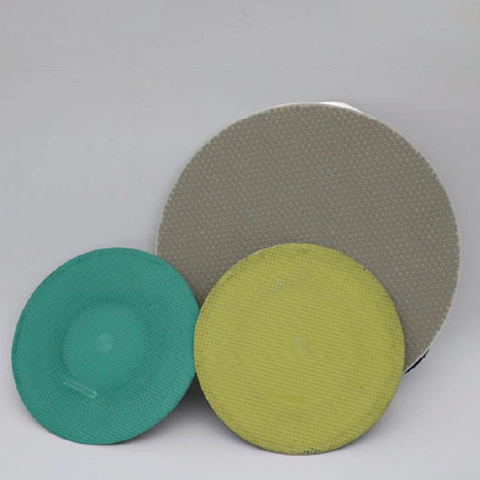

Diamond Disk（Optional）

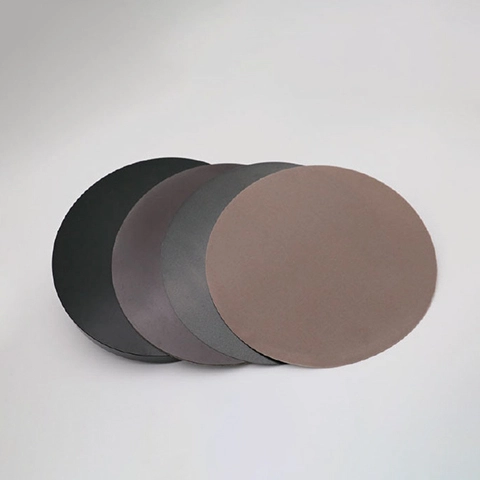

Fine-grinding Disc

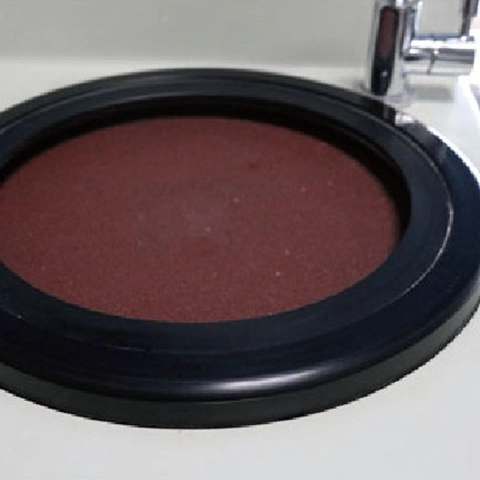

Magnetic Polishing System

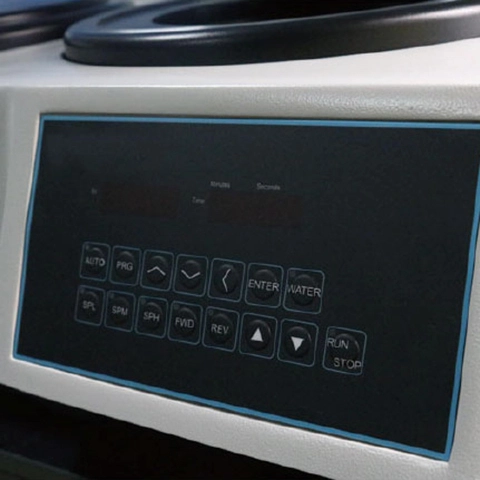

Control Panel Easy Operation
