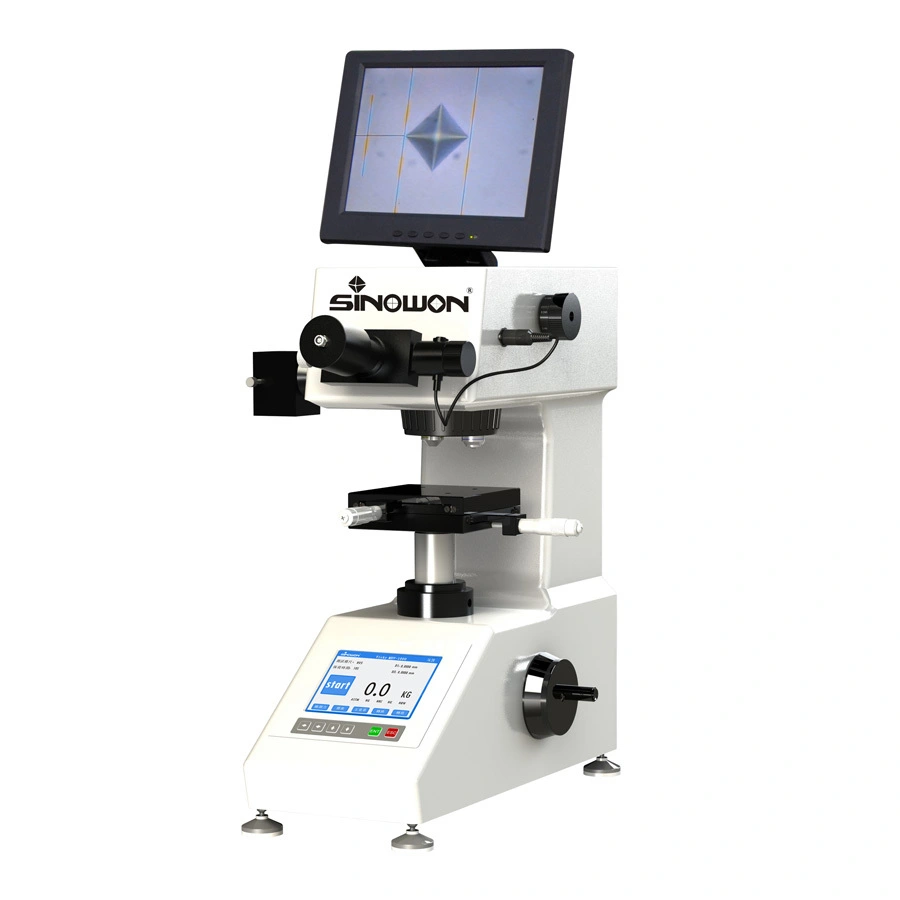

    Micro Hardness Tester with Measurement Monitor MV-1000V 2


    Characteristics


    ◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

    ◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

    ◆ Combined with MV-1000 video measuring devices, It improves efficiency, reduces visual fatigue of the operator.




    Application Range


    ◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

    ◆ Measuring hardness of the surface of a part, small parts or small areas;

    ◆ Measuring individual micro-structures;

    ◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.




    Specification


    Product NameMicro Hardness Tester with Measurement Monitor
    ModelMV-1000V
    Code#823-101V
    Loading forceN0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
    Kgf 10、25、50、100、200、300、500、1000
    Indentation Measuring DeviceMV-100
    Switch of Objectives and Pressure Switch Auto-turret
    Loading ControlAuto Loading, Dwell and Unloading
    Magnification of ObjectiveObservation:10x/40x;Measurement:10x/40x
    Video SystemCMOS Measuring Eyepiece, 8 "Display
    Dwell Time5-60s
    Measuring Range1HV-2967HV
    X-Y AnvilSize:100X100mm;  Travel:25mm X 25mm;Resolution:2um
    Maximum Height and Width of SpecimenMaximum Height:70mm; Maximum Width:95mm
    Power supplyAC220/50Hz; AC110V/60Hz
    Dimension425X245X490mm
    Gross/Net Weight45kg/35Kg
    Executive StandardGB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384
