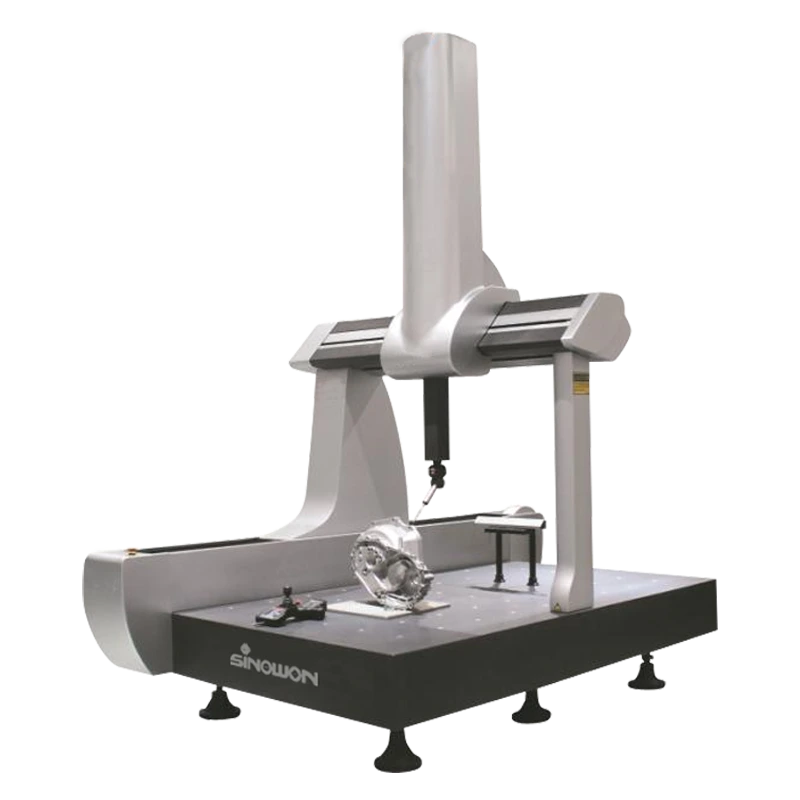

    Coordinate Measuring Machine Taquina Series 2



    Taquina CMM Stroke Size:  400x500x400 ~ 2000x3000x1500mm

    CMM Introduction:

    Taquina series of CMMs are made of aviation-grade aluminum alloys, which can meet customers' requirements for high measurement efficiency, and can locate and measure at extremely fast speeds.

    The Y-direction adopts a four-sided air-floating structure, which eliminates the motion torsion and ensures the high rigidity and high stability of the machine.



    CMM Characteristics:

    l  Granite fixed worktable, XZ axes are made of high-performance aluminum alloy, Good temperature adaptability and faster movement speed;

    l  Granite worktable with integral ”dovetail” guide in Y axis, eliminate the pitch and yaw, also provides superior motion stability;

    l  Z axis air-balance with self-protection, improve motion capability;

    l  Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.;

    l  High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped;

    l  Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes;

    l  RENISHAW tonic steel scale, Free expansion with the temperature change;

    l  Famous parts from all over the world are used in every important sub system.



    Technical Specification:


    MODEL

    Working Travel

    Measuring Accuracy

    CMM Size

    Work Envelope

    Weight

    Allowed Parts

    Weight

    3D

    Max Speed

    3D Max Accelerated Speed

    X

    Y

    Z

    P

    PH

    mm

    mm

    mm

    MPEE

    (um)

    MPEP

    (um)

    MPEE(um)

    MPEP

    (um)

    mm

    mm

    mm

    mm

    mm

    mm

    Kg

    Kg

    mm/s

    mm/s2

    Taquina 454

    400

    500

    400

    1.3+3L/1000

    1.3

    1.2+3L/1000

    1.2

    1000

    1240

    2240

    525

    995

    600

    590

    500

    800

    1900

    Taquina 564

    500

    600

    400

    1.3+3L/1000

    1.3

    1.2+3L/1000

    1.2

    1100

    1340

    2240

    625

    1095

    600

    720

    500

    800

    1900

    Taquina 686

    600

    800

    600

    1.5+3L/1000

    1.5

    1.3+3L/1000

    1.3

    1200

    1650

    2660

    730

    1400

    800

    980

    700

    800

    1900

    Taquina 8106

    800

    1000

    600

    1.7+3L/1000

    1.7

    1.4+3L/1000

    1.4

    1400

    1850

    2660

    930

    1600

    800

    1290

    1000

    800

    1900

    Taquina 8156

    800

    1500

    600

    1.7+3L/1000

    1.7

    1.4+3L/1000

    1.4

    1400

    2350

    2660

    930

    2100

    800

    1620

    1000

    800

    1900

    Taquina 10128

    1000

    1200

    800

    1.9+3L/1000

    1.9

    1.5+3L/1000

    1.5

    1690

    2370

    3150

    1190

    1814

    1040

    2490

    1800

    580

    1800

    Taquina 10158

    1000

    1500

    800

    1.9+3L/1000

    1.9

    1.5+3L/1000

    1.5

    1690

    2670

    3150

    1190

    2114

    1040

    2850

    1800

    580

    1800

    Taquina 10208

    1000

    2000

    800

    1.9+3L/1000

    1.9

    1.5+3L/1000

    1.5

    1690

    3270

    3150

    1190

    2614

    1040

    3440

    1800

    580

    1800

    Taquina 121510

    1200

    1500

    1000

    2.2+3L/1000

    2.2

    1.9+3L/1000

    1.9

    1890

    2750

    3330

    1390

    2200

    1200

    3370

    2000

    500

    1100

    Taquina 122010

    1200

    2000

    1000

    2.2+3L/1000

    2.2

    1.9+3L/1000

    1.9

    1890

    3350

    3330

    1390

    2700

    1200

    3950

    2000

    500

    1100

    Taquina 152010

    1500

    2000

    1000

    2.8+3L/1000

    2.8

    2.5+3L/1000

    2.5

    2190

    3350

    3370

    1690

    2700

    1200

    5260

    3000

    500

    1100

    Taquina 152512

    1500

    2500

    1200

    3.2+3L/1000

    3.2

    2.9+3L/1000

    2.8

    2190

    3850

    3870

    1690

    3200

    1400

    6770

    3000

    450

    1100

    Taquina 153010

    1500

    3000

    1000

    3.2+3L/1000

    3.2

    2.9+3L/1000

    2.8

    2260

    3910

    3420

    1690

    3700

    1200

    8160

    3000

    450

    1100

    Taquina 153512

    1500

    3500

    1200

    3.5+3L/1000

    3.5

    2.9+3L/1000

    3.0

    2260

    4410

    3890

    1690

    3700

    1400

    9250

    3000

    450

    1100

    Taquina 152515

    1500

    2500

    1500

    3.5+3L/1000

    3.2

    2.9+3L/1000

    2.8

    2190

    3980

    4500

    1680

    3330

    1700

    7000

    3000

    400

    900

    Taquina 153015

    1500

    3000

    1500

    3.5+3L/1000

    3.5

    3.2+3L/1000

    3.0

    2260

    4040

    4520

    1680

    3830

    1700

    8490

    3000

    400

    900

    Taquina 163515

    1600

    3500

    1500

    3.5+3L/1000

    3.5

    3.2+3L/1000

    3.0

    2360

    4540

    4520

    1780

    4330

    1700

    10010

    3000

    400

    900

    Taquina 203015

    2000

    3000

    1500

    4.0+4L/1000

    4.0

    3.5+3L/1000

    3.5

    2760

    4240

    4520

    2180

    3930

    1700

    11250

    3000

    400

    900



    Installing Surrounding

    Power   Voltage

    110/60Hz;   220V/50Hz

    Filter   Accuracy:

    0.3μm

    Thermal   Gradient:

    0.5℃/m

    Hourly   Temperature Cycle:

    0.5℃/h

    Air   Pressure:

    0.5~1.0Mpa

    Air   Supply:

    0.12~0.45m3/min

    Relative   Humidity:

    55%~65%

    Temperature   Range:

    18~22℃



    Software Introduction:  RATIONAL-DMIS for WINDOWS(64 bit CAD + +)

    l  Graphic display, full-scale measuring

    l  DMIS 5.0 programming, supports advanced programming techniques

    l  Graphical display includes the measurement process, features, sensor models and output reports

    l  Outputs available in various formats, including PDF, HTML, EXCEL, DMO, OUT, TXT

    l  Supports user-defined PDF and Excel templates Complete coordinate system creation, numerous constructions, form error evaluation

    l  Supports point cloud import & export as well as 3D analysis of curves and surfaces

    l  Supports 21 parameter CMM error compensation maps

    l  Supports temperature compensation and real-time temperature compensation of machine/work-piec

    l  Supports 14 language libraries and provides a quick switch language interface with one button

    l  Add full-automatic and scan probe Includes all functions in the LITE version of RationalDMIS

    l  Adds fully automatic probing and continuous contact scanning probes

    l  Supports all series of Renishaw sensors and sensor changers CAD export/import, sheetmetal/check fixture measurement

    l  Including all functions in the Lite version of RationalDMIS Contains sheet-metal solutions and check fixture measurement with material offsets etc

    l  Supports CAD export/import and seamless direct connections with CAD software

    l  Supports reading and editing of CAD layer and colors

    l  Supports Q-DAS and DML format data exporting.

    l  Supports IGES, STEP, DXF, STL

    l  Auto identification of CAD features, quick CAD-based programming, real time results comparison

    l  Supports measurement path simulation and planning, anti-collision measurement, intelligent measurement planning measuring path

    l  CAD seamless connection, all-series sensors, dedicated measuring modules

    l  Additional optional modules include touch screen, network reporting, and network offline.
