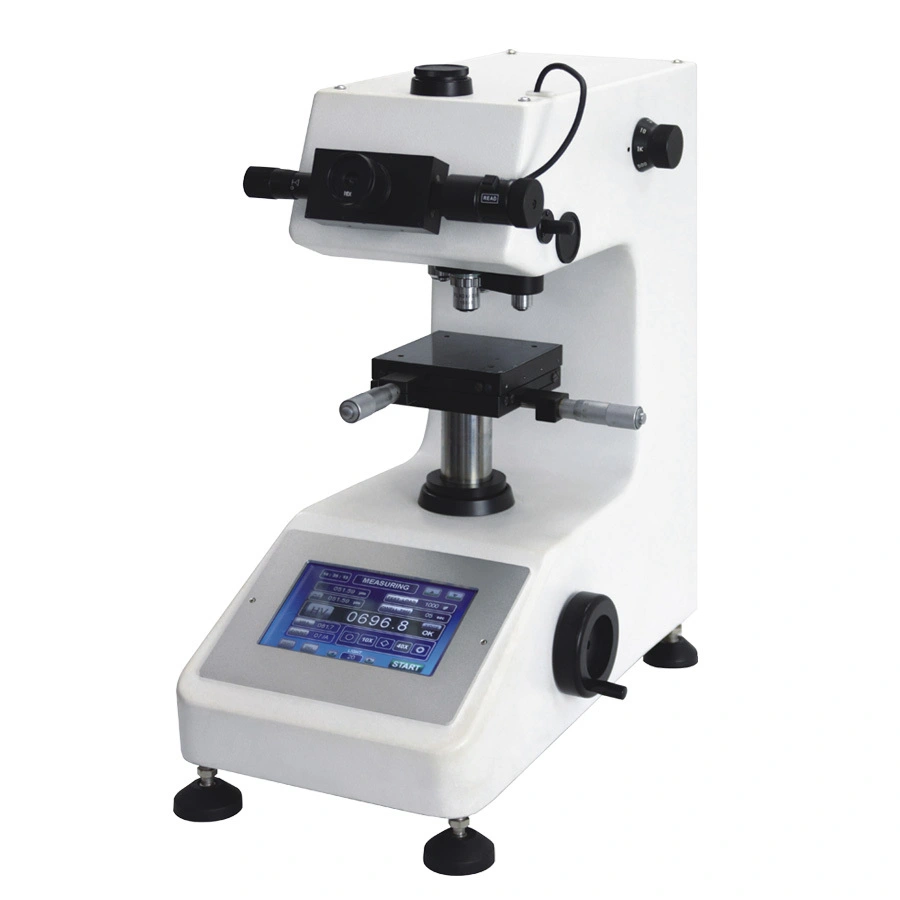

MicroVicky VH1010 Digital Micro Hardness Tester 1
MicroVicky VH1010 Digital Micro Hardness Tester 1

MicroVicky VH1010 Digital Micro Hardness Tester

    oops...!

    no product data.

    Go to homepage

    MicroVicky VH1010 Digital Micro Hardness Tester 2



    Product Characteristics


    ◆ Micro-Vickers hardness tester with colour touch screen;

    ◆ 8 inches colour touch screen , high resolution , easy to operate;

    ◆ Strong and stable body;

    ◆ LED illumination , light , adjustable , long life and no heat;

    ◆ Data storage for review and printing;

    ◆ Rotatable turret with five working positions;

    ◆ 250 lines encode with more precise measurement;

    ◆ Conversion between different scales;

    ◆ Two indenters available (Vickers and Knoop);

    ◆ Can be developed to semi-automatically or full-automatically system.



    Product Application


    Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

    Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification


    Model

    MicroVicky VH1010

    Code#

    823-118

    Test   Load

    gf

    10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000

    mN

    98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807

    Loading Mechanism

    Automatic loading   and releasing method 50 ~100 µm/s

    Dwell Time

    5 ~ 99 s

    Turret Mechanism

    Automatic

    Objective

    40x/10x

    Magnification of   Microscope

    For measurement   :400x ( Objective 40X and Eyepiece 10X )

    For observation :   100x ( Objective 10X and Eyepiece 10X )

    Mix. Measuring unit

    0.1µm   (0.01µm for TS type)

    Max.Specimen   Height

    90mm

    Max.Specimen Depth

    110mm

    Measuring Hardness   Scale

    HV,  HK

    X-Y Stage

    Type

    Manual

    Dimensions

    200 × 180 mm

    Max. movement

    100 × 100 mm

    Min. micro   graduation

    1/100 mm

    Light Source

    LED Illuminator

    Accuracy

    Conform to :  JIS B -7735, ASTM E-384 and ISO 146

    Photographic Device

    Capable to mount   photographic device  ( Option)

    Dimensions

    W190 × D 430 × H   520 mm

    Weight

    50Kg

    Power Supply

    Single phase AC 220   V  50/60 Hz
