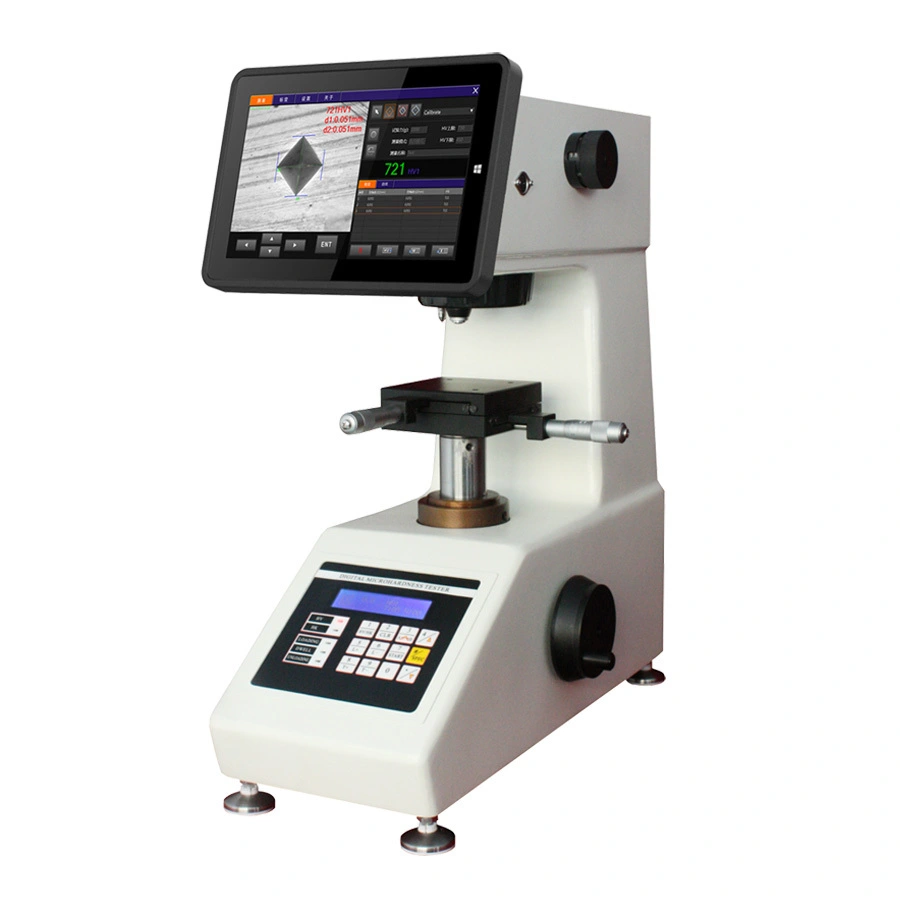

MicVision VH-1 Vision Micro Hardness Tester 1
MicVision VH-1 Vision Micro Hardness Tester 1

MicVision VH-1 Vision Micro Hardness Tester

    oops...!

    no product data.

    Go to homepage

    MicVision VH-1 Vision Micro Hardness Tester 2


    Application


    ◆ MicVision main use in testing materials allows for the measurement of the hardness of small or thin specimens and small areas of larger specimens, MicVision testing is commonly used to determine characteristics of thin sheets, foils, fine wire, epoxies, paints, etc. and is often employed in R&D applications .

    ◆ MicrVision hardness is especially useful in determining hardness variations, caused by hardening, quenching, plating, fabrication, welding or annealing, bonding, etc. Micro hardness testing can be accurately employed using loads as slight as 10 gram, somewhat less and considerably more in certain situation.




    Features


    MicVision is intelligentized Vickers system, adopted vision measuring technical and auto measuring indenter system, and auto output reports. There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.


    Specification



    Product NameVision Micro Hardness Teater
    ModelVH-1
    Code#823-110V
    Test ForceN0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
    gf10、25、50、100、200、300、500、1000
    Optical SystemObserve and Measure Objectives:10X/40X
    Turret SystemAuto Rotating Turret
    Measuring Range1HV-2967HV
    X-Y Work TableSize:100 X 100mm;Travel:25X25mm;Resolution Ratio:2um
    Loading ControlAutomatic (Loading, Dwell, Unloading)
    Dwell Time5-60s adjustable
    IlluminationLED / Halogen adjustable
    Measuring SystemiVicky 3.0 Auto Measuring Vickers System
    PC System Operation SystemWin10
    Screen size10.6”
    CPUIntel I3
    USBDouble USB (could insert USB and soft dog)
    RAM2GB
    Hard Disc32GB
    Camera1.3MP Pixel, 1/2”CMOS Color Camera
    Max Height of Specimen70mm
    Instrument Throat95m
    Power SupplyAC220V/50Hz; AC110V/60Hz
    Tester Dimension425x245x490mm
    Packing Dimension500x490x700mm
    Gross / Net Weight47Kg/36Kg
    Execution Standard

    ISO6507,ASTM E92,JIS Z2244,GB/T434
