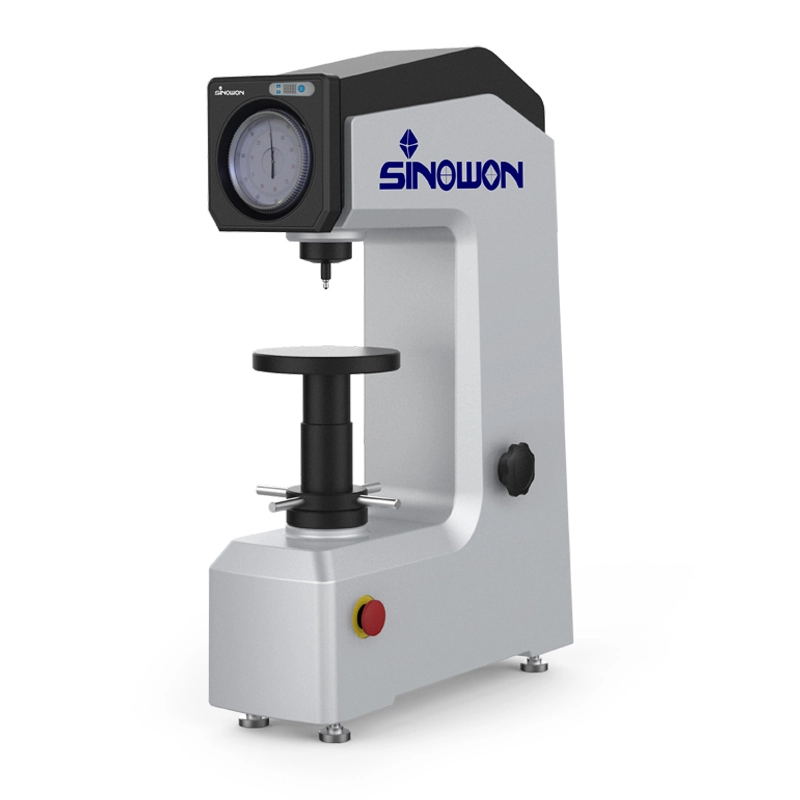

DigiRock MS2 Motorized Superficial Rockwell Hardness Tester
5.0
Model:
DigiRock MS2
Code#:
811-220
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ISO 6508，ASTM E18，GB/T230
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Feature
◆ DigiRock MS2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;
◆ DigiRock MS2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;
◆ DigiRock MS2 force knob adopts the metal material to replace the plastic,it largely improves the instrument using-lifet;
◆ DigiRock MS2 loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum;
◆ DigiRock MS2 intenter protector is available to improve the using lifetime of indenter.
Specification
| Product Name | Motorized Superficial Rockwell Hardness Tester |
| Model | DigiRock MS2 |
| Code# | 811-220 |
| Rockwell Scales | HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Preliminary Test Force | 3Kgf(29.42N) Permitted Error：±2.0% |
| Addtional Test Fore | 147.1N(15kg)、294.2N(30kg)、441.3N(45kg) Permitted Error:±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | Analogue Display |
| Resolution | 0.5HR |
| Loading Control | Motorized |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T230 |
