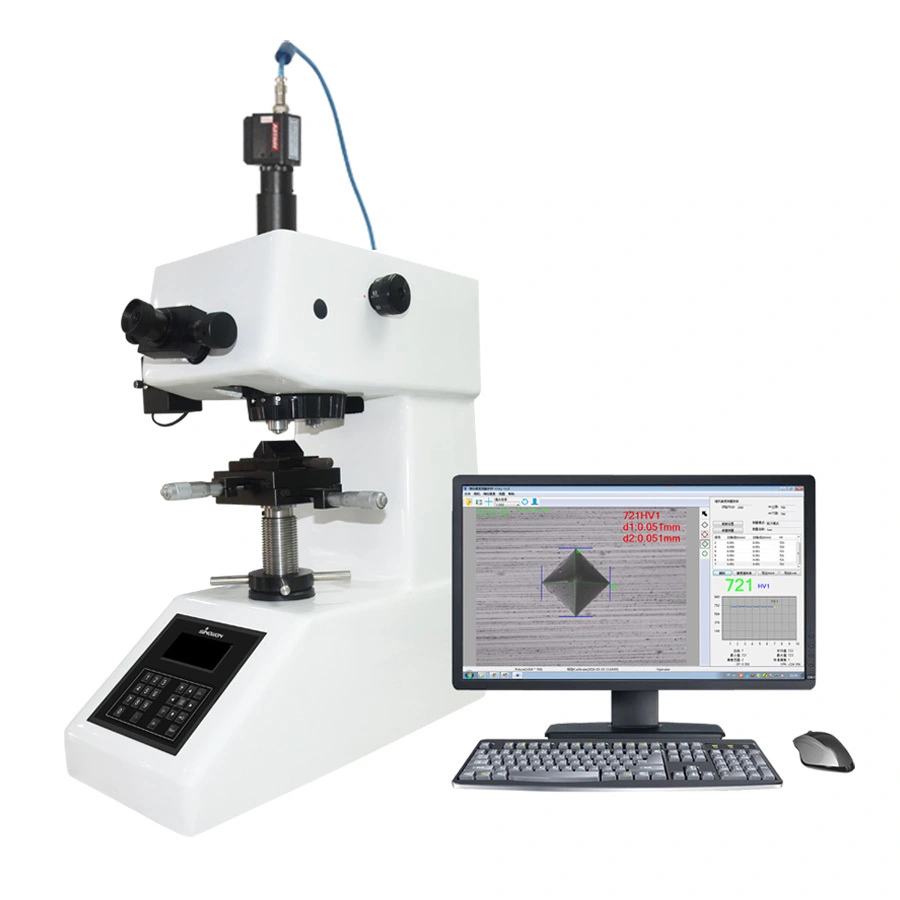

    MV Series Vision Micro Vickers Hardness Tester with Measurement Software 2

    The MV-1000 series not only has all the measurement functions of the ordinary visual microscope hardness tester, but also with the iVicky V2.0 Vickers hardness measurement software, which eliminates the measurement error of the operator using the visual optical reading, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results, while reducing the operator's work intensity and improving the efficiency of the measurement.


    Characteristics


    ◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

    ◆ The dot positioning uses a three-point position to be more precise, and the repeated dot position is not skewing.

    ◆ It is equipped with 10X and 40X HD lens and HD USB camera, excellent image quality in optical imaging systems and video measurements;

    ◆ The operation interface adopts the humanized format, the digital area and the function distinguish the column type, the menu function is classified clearly and meticulously, and the light brightness, the menu selection and the objective lens selection all have the memory function.

    ◆ The powerful video measurement software iVicky V2.0 can convert the measured Rockwell hardness into Brinell Hardness HBW and Rockwell hardness HRC, HRA, HRB, and can also generate hardness gradient curve. Output WORD format measurement report.

    ◆ Measurement through the measuring software eliminates the operator's measurement error with visual optical readings, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results.



    Application Range


    ◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

    ◆ Measuring hardness of the surface of a part, small parts or small areas;

    ◆ Measuring individual micro-structures;

    ◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.



    Specification



    Product NameMicro Hardness Tester with Measurement SoftwareAuto-Turret Micro Hardness Tester with Measurement Software
    ModelMV-1000PCMV-1000AC
    Code#823-101MV823-101AC
    Test ForceN0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
    gf10、25、50、100、200、300、500、1000
    Indentation MeasurementiVicky V2.0 Measuring Software
    Switch of Objectives and IndenterManual
    Loading ControlAuto Loading, Dwell and Unloading
    Magnification of ObjectiveObservation:10x;Measurement:40x
    Eyepiece10x Eyepiece
    Dwell Time5-60s
    Measuring Range1HV-3000HV
    X-Y AnvilSize: 100X100mm; Travel:25mm X 25mm;Resolution: 0.25um
    Video Measuring SystemUSB Camera, 1X Camera Adapter, Micro Measuring Software iVicky V2.0
    Maximum Height and Width of SpecimenMaximum Height: 70mm; Maximum Width:95mm
    Power supplyAC220/50Hz; AC110V/60Hz
    Dimension530X290X490mm
    Gross/Net Weight50kg/40Kg
    Execution StandardISO 6507,ASTM E92,JIS Z2244,GB/T4340
