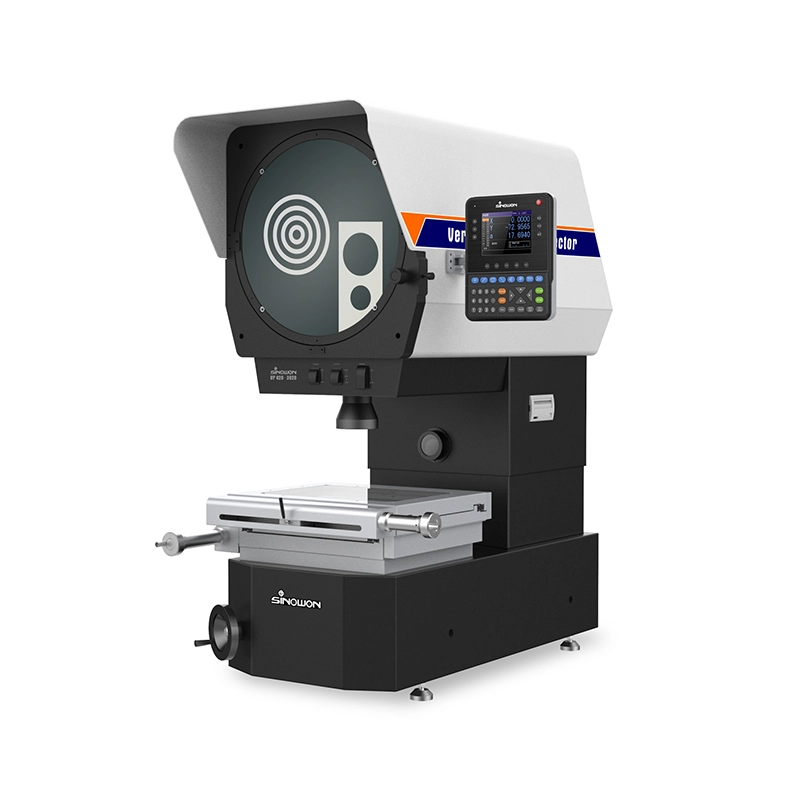

Optical Vertical Profile Projector Ø400mm AutoFocus VP420
5.0
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification
| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ40mm | Φ20mm | Φ8mm |
| Working Distance | 65mm | 80mm | 67.5mm | 51.4mm |
