portable brinell hardness test experiment directly sale for steel products
Model:
MHB-3000
Code#:
832-113
Warranty:
12month
Delivery Time:
15-30days
Standard:
Complies with ISO 6506
Certificate:
CE
Features

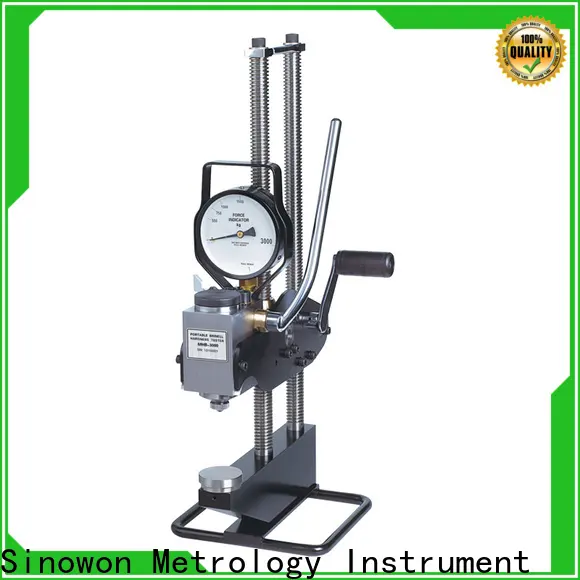

◆ MHB-3000 is a portable Brinell hardness tester. It has a hydraulic system and the test force is applied by means of a handle;
◆ MHB-3000 condition is applying 3000kg test force on a 10mm carbide indenter. It can result in permanent indentations for reinspection. The test condition meets the requirements of ISO 6506 and ASTM E110.
Specification
| Product Name | Portable Brinell Durometer | |
| Model | MHB-3000 | |
| Code# | 832-113 | |
| Testing Force | 3000kg (500kg, 750kg, 1000kg, and 1500kg available) | |
| Indenter | Ф10mm carbide ball indenter (Ф 5mm available) | |
| Testing Range | 8-650HBW (Expendable to 28-650HBW) | |
| Max. Specimen Height | 320mm | |
| Throat Depth | 100mm | |
| Accuracy | Complies with ISO 6506 | |
| Repeatability | Complies with ISO 6506 | |
| Net Weight | 13.8kg | |
