A professional manufacturer of measuring & testing equipment.

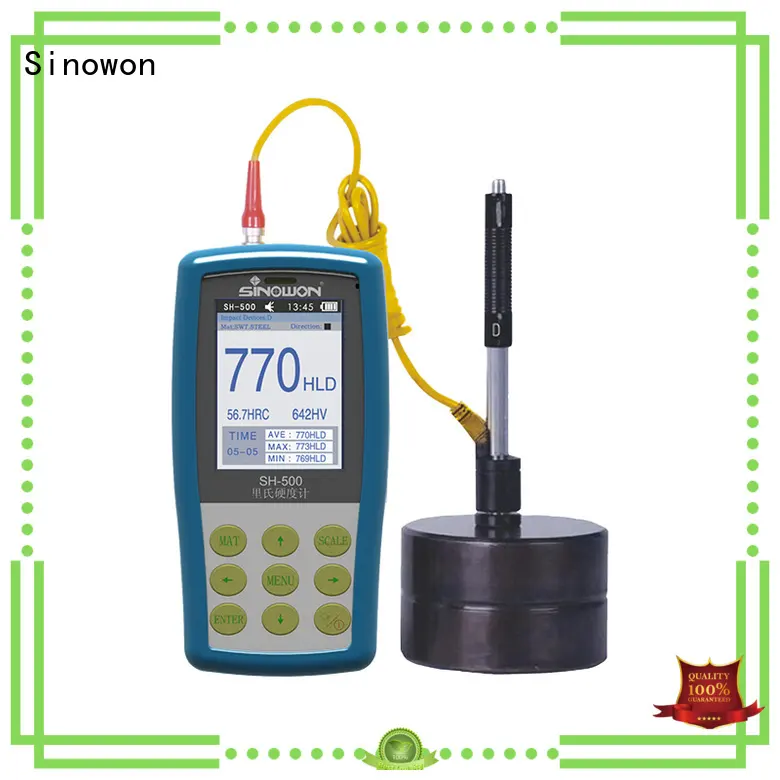

portable rockwell tester tester for precision industry Sinowon 1
portable rockwell tester tester for precision industry Sinowon 2
portable rockwell tester tester for precision industry Sinowon 1
portable rockwell tester tester for precision industry Sinowon 2

portable rockwell tester tester for precision industry Sinowon

Model:
SH-500
Code#:
852-150
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
DIN 50156,ISO 18625,ASTM A956 , GB/T17394
Certificate:
CE
Inquiry
Company Advantages
1. portable hardness tester machine is designed by renowned designers in the field. Imported materials and accessories are used in product manufacturing
2. Sinowon Innovation Metrology Manufacture Limited.'s reliable service and dedicated staff have always been valued by customers around the world. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
3. The product has to be tested before coming into the market to ensure it meets all national and international regulations, giving you an assurance in its safety and overall performance. The product is well known for high accuracy and great stability


portable rockwell tester tester for precision industry Sinowon 3



Product Feature


Metal shell, nice appearance design.

Available to save 2000 groups test results.

Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.

4” LCD to display hardness result, conversion results, Max, Min,Mean value;

Support blue tooth printer, with RS232 to connect computer for software running;

Can test all kinds of metal which more than 5kg;

Indicating error ±5HLD, conform standard ASTM A956;

Support 7 types of impact devices.


Application


Die cavity of molds;

Bearings and other parts;

Failure analysis of pressure vessel, steam generator and other equipment;

Heavy work piece;

The installed machinery and permanently assembled parts;

Testing surface of a small hollow space;

Material identification in the warehouse of metallic materials;

Rapid testing in large range and multi-measuring areas for large-scale work piece.


Specification



Product NamePortable Leeb Hardness Tester
ModelSH-500
Code#852-150
Measuring Range(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB
Measuring Direction0~360°
Data Storagemaximum 2000 Groups test Results
Data-OutputRS232/Printer
Hardness Indication240x160 graphic dot color LCD display
Hardness ScaleHL、HBW、HRB、HRC、HRA、HV、HS
Shell MaterialMetal
Indicating ErrorHLD:±6  HRC:±1   HB:±4
Language OptionChinese, English, German, Portuguese, Turkish
StatisticsAverage value, min-max ,upper-lower limits
Impact DeviceD (standard)
Optional impact DevicesDC/D+15/DL/G/C/E
Work piece radius(convex/concave)Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple5mm, G:10mm,C:1mm
Workpiece min. case hardened depth0.08mm C: 0.2mm G:1.2mm
Power Supply4.2V
Operating Temperature0 ℃-40 ℃
Dimension160x 80 x 31mm
Weight500g(Excluding impact device and printer)


Standard Delivery:


Standard DeliveryCode#
Instrument Main Body852-150
Impact device type D852-410
Hardness Block(750-830)HLD852-630
Cleaning brush852-860
SINOWON  certificateSH-500
Recharger852-850
Accessories Box852-900
Instrument ManualSH-500


Measuring Range / Materials:


MaterialHLDHRBHRCHBHVHSD
Steel and cast steel300-90038-10020-6881-65481-95532-100
Cold work tool steel300-84020-6780-898
Stainless steel300-80046-10185-65585-802
Grey cast iron360-65093-334
Nodular cast iron400-660131-387
Cast aluminum alloys170-57023-8419-164
Brass200-55013-9540-173
Bronze300-70060-29
Copper200-69045-315




Company Features
1. Developing into a large scale enterprise, Sinowon Innovation Metrology Manufacture Limited. is well-known in the manufacturing of portable hardness tester machine. We have defeated many other competitors and stand at the top. We boast multi mature production lines with world-advanced technology, with a high annual production capability. This proofs that we have realized complete and scale operation.
2. Our manufacturing plant is equipped with up-to-date production facilities. They are imported from the United States, Japan, and Germany, which ensure the smooth progress of our production plan.
3. Establishing a quality management system is the basic guarantee for achieving the Sinowon quality policy and quality objectives. Our popular portable hardness tester conveys our culture and mission. Check now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
