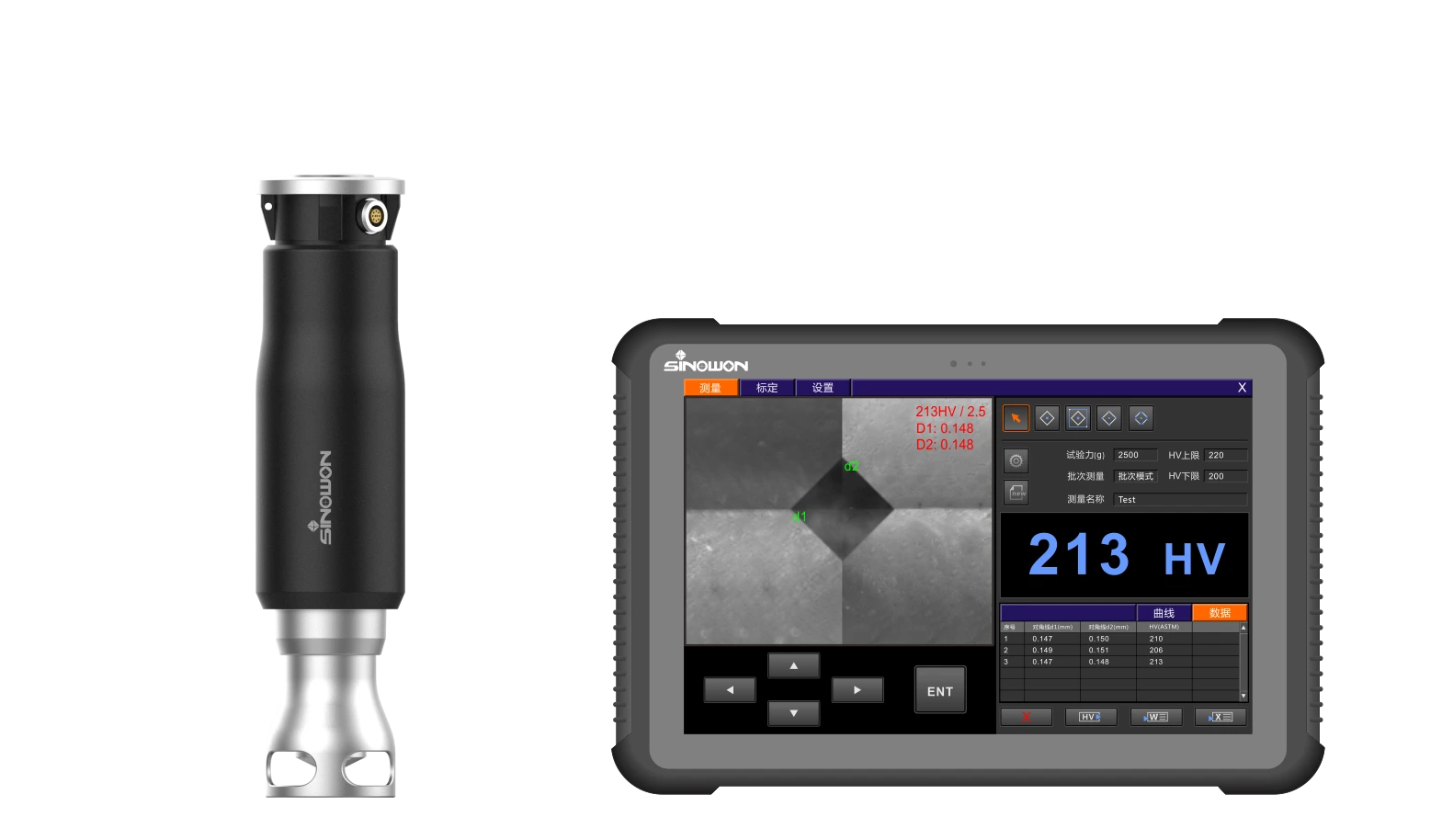

Portable Vicker Hardness Tester POT Series

    oops...!

    no product data.

    Go to homepage

    Why POT

    Rockwell hardness tester is suitable for measuring specimen with mid-high hardness. Brinell hardness tester is fairly suitable for soft material. But Vicker hardness tester could measuring kinds material from soft to hard. The traditional Vickers hardness tester due to limit of the optical mechanism and mechanical mechanism, it can not be applied to the scene of large parts for non-destructive measurement. And the Lee hardness tester and ultrasonic hardness tester are compared to the hardness of Titanium and other new materials can not be accurate measurement, in particular, the Lee hardness have higher requirement of the specimen thickness and roughness. Therefore, POT is a portable mini Vickers hardness tester, which will be the traditional desktop Vickers hardness tester into a hand-held probe inside, can easily carry, at any time in the laboratory, production workshop, field workstations on the specimen Vickers hardness measurement.

    Measurement and evaluation: Direct, Automatic, Fast

    Through Indenter Viewing means that you can see the indentation of the Vickers diamond "grow" on the surface of the test object at the same time as the test load is applied – this is ensured by special optics and a CCD camera. As soon as the test load is reached, the indentation is automatically evaluated and transferred, which means that the diagonals are directly determined, without making a detour via a measuring microscope. Your benefits: the measurement is not only faster but also excludes subjective errors in the determination of diagonal lengths

    Plus: by representation on the display, the POT is the only hardness tester to enable direct control and immediate evaluation of the measurement quality. In addition, the image of the indentation enables direct recognition of the diamond's condition.

    Portable Vicker Hardness Tester POT Series 5

    POT  Advantages – your benefit:

    POT can be used irrespective of the material – without any additional calibration. You can use the same instrument to measure the hardness of all sorts of materials without any reference specimen and without any laborious settings: from steel and nonferrous metals through plastics, carbide metals, glass, and ceramics up to different coatings. The static application of the test load reduces the vibration of the test object and therefore the influence of the test material’s elastic properties on the test result.

    Yet another benefit: you can use the POT to measure even very thin test objects(0.1mm), such as coils or sheet metal and metal foils, on which stationary or mobile hardness testers have previously failed, without any problem. Consequently, hardness testing becomes independent not only of the material but also of the mass and geometry of the test object. This means that the POT opens up new application fields for mobile hardness testing.

    POT can measuring any quality material ( only thickness 0.1mm).

    Portable Vicker Hardness Tester POT Series 6

    POT Extensive fields of application

    POT‘s standards in mobile hardness testing: tests are not only independent of the test position and direction of testing but in this case also of the test object’s material and mass or geometry. Hereby the POT opens up a large variety of new application fields which were previously not open to portable hardness testers. Some application examples of possible application areas for the POT hardness tester are as follows:

    • Heat treat shops – easy and fast determination of surface hardness, no calibration required

    • Aviation – on-site hardness testing on thin-walled components and on different alloys without any additional

    calibration

    • Manufacturers of coils – at last reliable mobile hardness testing on sheet metal

    • Testing companies – on-site measurement by means of a universal, portable unit

    • Research institutes, labs, and training companies – ”view through the diamond”:observation of the indentation process, and measurement control

    POT Specifications and Accessories

    Product Name

    POT Portable Vicker Durometer

    Model

    POT-H1

    POT-H2

    POT-A1

    POT-A2

    Code

    888-111

    888-121

    888-131

    888-141

    Loading Method

    Manual

    Manual

    Automatic

    Automatic

    Measurement Method

    Manual

    Automatic

    Manual

    Automatic

    Test Probe

    3N/10N/50N Optional (one probe, one test force)

    Conversion scales

    100 HV1000 HV

    Data Processor

    and Display

    3-proof Table PC

    HD 10.1”display

    1/2.8”200M pixels the optical system

    Dialog languages

    Chinese/English

    Resolution

    1HV

    Conversion Standard

    DIN 50150ASTM E140

    Report Form

    Test data curve, output in tabular form, including picture, statistical   data calculation report format output

    Input Device

    Keyboard and Mouse

    Power Supply

    Adapter100V–240V),NI-MH Battery 3.7V/10000mAh

    Operating Time

    approx. 240 mins continuous operation

    Temperature ranges

    Operation temp0°C-50°CStorage temp- 20°C-60°C

    Weight

    Approx 3Kg

    Size

    ProbeD:62mm x H:255mm

    Host272mmx195mmx22mm

    POT Standard Delivery

    POT Probe 1 set

    Table Computer 1 set

    Control Line 1pc

    Tool Kit 1 pc

    Vicker Software 1 pc

    U disk 1 pc

    POT Optional Delivery

    Micro Vicker hardness block 1pc

    Portable Polisher Machine

    Note: POT is MINI's Vickers hardness tester.

    Please use the polisher machine before testing surface, Because of it is important affect of the surface roughness of the measurement result. Please refer to the surface roughness equivalent level of the Vicker hardness tester.
