practical brinell hardness test procedure customized for cast iron

Company Advantages
1. Sinowon brinell hardness test procedure is the outcome of various disciplinary knowledge. It is developed under the guideline of mechanical engineering, applied mechanics, power machinery, CNC technology, and so on. The product is well known for high accuracy and great stability
2. Sinowon Innovation Metrology Manufacture Limited.'s service policy has resulted in a higher level of customer satisfaction. The product is excellent in dust prevention
3. This product has a precise dimension. Its manufacturing process adopts the CNC machines and advanced technologies, which guarantee its accuracy in size and shape. It, up to the requirements from different industries, is widely applied
4. This product is highly resistant to abrasion. It has the ability to resist friction or rubbing through continual and frequent abuse. Its packing is made seriously to guarantee the safety during shipment

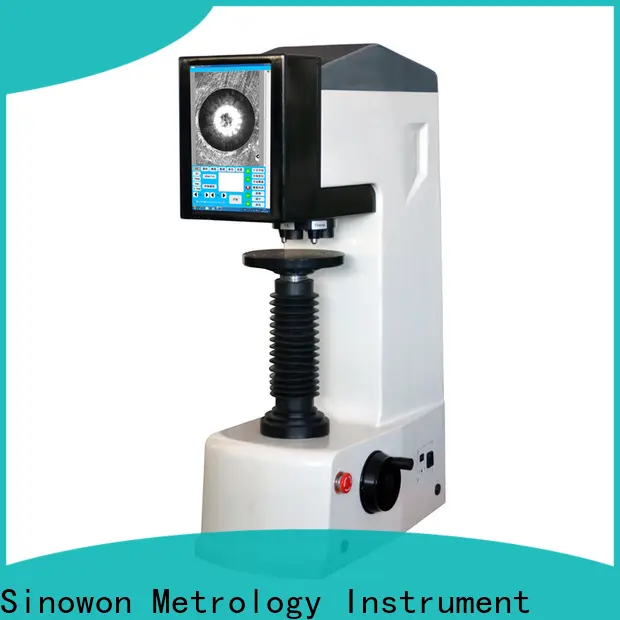

AutoBrin AB-3000V fully automatic three indenters digital Brinell hardness tester adopts casting shell with strong rigidity and precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact. The test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high. With built-in panel computer, it makes the parameter setting and results show directly with easy operation, it also avoids the stimulation and visual fatigue of the light source of the eyepiece, and reduces the measuring error. After select the scale, the instrument will automatically select the indenter and objective, the test table rises automatically and then back to the focusing position after loading the test force, it shows the clear image of the indentation and automatically measures, which realizes the fully automation of the Brinell test.

◆ This instrument has 10 level of test force, 13 Brinell hardness test scales, suitable for different kinds of metal materials;

◆ With three indenters and two objectives, no need to change the indenters when testing different samples; with rigorous optical structure and high magnification, it makes the indentation observed clearly;

◆ According to the selected scale, with automatic shifting the instrument will automatically select the corresponding indenter and objective for measurement;

◆ The automatic lifting test table adopts precise structure with high stability, it automatically rises when start measuring, and then back to the focusing position for measuring after loading the test force, which realizes the one key automation;

◆ It adopts the integrated design of hardness tester and panel computer; With Windows 7 operating system, it has all functions of computer;

◆ With CCD image measuring system, touch screen operating and displaying, it can preset the test force dwell time, adjust intensity of light source, show the indentation length, hardness value, test range and test number etc.;

◆ The software has the function of calibration, manual fine tuning and set up and down limit etc., which ensures the accuracy of measurement;

◆ Conversion scales of different kinds of hardness;

◆ Test result can be saved as WORD or EXCEL report and can be printed out;

◆ With USB port, VGA interface and network interface, it can connect to the internet and other devices for more optional functions.

Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Model		AutoBrin AB-3000V
Code#		831-160
Test Force	kgf	62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf,   500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
	N	612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N,   7355N, 9807N, 14710N, 29420N
Test Range		3.18～653HBW
Loading Method		Automatic (Loading/Dwell/Unloading)
Hardness Reading		12 inch Touch Screen, Automatic Measuring
Micro Computer		CPU: Intel I5，Memory: 8G，SSD: 128G
CCD Pixel		3.00 Million
Conversion Scale		HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK,   HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW
Data Output		3×USB, 1×VGA，1×LAN
Turret		Automatic Recognition and Shifting (Three Indenters, Two Objectives)
Objective		1×，2×
Effective Field of View		1×：6mm，2×：3mm
Min. Measuring Unit		1×：4.6μm，2×：2.3μm
Dwell Time		0~95s
Max. Sample Height		260mm
Throat Depth		150mm
Power Supply		AC220V，50Hz
Execute Standard		ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2
Dimension		690×360×1000mm， Packing Dimension: 830×490×1300mm
Weight		Net Weight: 200kg，Gross Weight:   230kg

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has steadily grown to be a Chinese leading manufacturer of brinell hardness test procedure . At present, most of the brinell hardness test series produced by us are original products in China.
2. Our technology is always one step ahead than other companies for brinell hardness tester.
3. The cutting-edge technology adopted in brinell hardness number helps us win more and more customers. Focus on brinell testing machine , Sinowon Innovation Metrology Manufacture Limited. has established a good brand image in brinell hardness unit industry. Get an offer!
