professional portable hardness tester machine wholesale for precision industry
1. Sinowon Innovation Metrology Manufacture Limited. adopts appropriate material to align with functions of portable hardness tester machine . A team of experienced talents is gathered to support the product sales
2. Our portable hardness tester machine can always grace the portable rockwell tester of our customers with even the most discerning tastes. It is well recognized by more than 5000 customers
3. The QC team adopts professional quality standards to ensure the quality of this product. The product is excellent in dust prevention
Product Feature
◆ Metal shell, nice appearance design.
◆ Available to save 2000 groups test results.
◆ Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.
◆ 4” LCD to display hardness result, conversion results, Max, Min,Mean value;
◆ Support blue tooth printer, with RS232 to connect computer for software running;
◆ Can test all kinds of metal which more than 5kg;
◆ Indicating error ±5HLD, conform standard ASTM A956;
◆ Support 7 types of impact devices.
Application
◆ Die cavity of molds;
◆ Bearings and other parts;
◆ Failure analysis of pressure vessel, steam generator and other equipment;
◆ Heavy work piece;
◆ The installed machinery and permanently assembled parts;
◆ Testing surface of a small hollow space;
◆ Material identification in the warehouse of metallic materials;
◆ Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specification

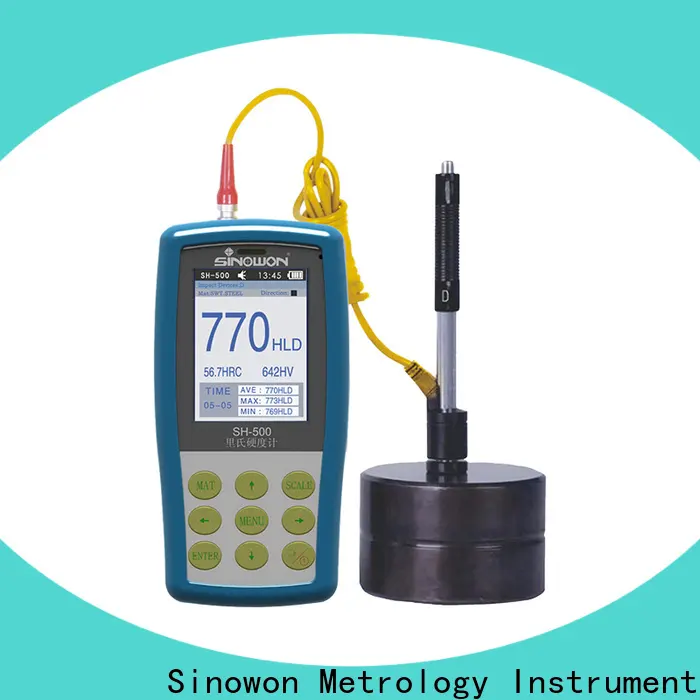

| Product Name | Portable Leeb Hardness Tester |
| Model | SH-500 |
| Code# | 852-150 |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Data Storage | maximum 2000 Groups test Results |
| Data-Output | RS232/Printer |
| Hardness Indication | 240x160 graphic dot color LCD display |
| Hardness Scale | HL、HBW、HRB、HRC、HRA、HV、HS |
| Shell Material | Metal |
| Indicating Error | HLD：±6 HRC：±1 HB：±4 |
| Language Option | Chinese, English, German, Portuguese, Turkish |
| Statistics | Average value, min-max ,upper-lower limits |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius(convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm, G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm C: 0.2mm G:1.2mm |
| Power Supply | 4.2V |
| Operating Temperature | 0 ℃-40 ℃ |
| Dimension | 160x 80 x 31mm |
| Weight | 500g(Excluding impact device and printer) |
Standard Delivery:
| Standard Delivery | Code# |
| Instrument Main Body | 852-150 |
| Impact device type D | 852-410 |
| Hardness Block(750-830)HLD | 852-630 |
| Cleaning brush | 852-860 |
| SINOWON certificate | SH-500 |
| Recharger | 852-850 |
| Accessories Box | 852-900 |
| Instrument Manual | SH-500 |
Measuring Range / Materials:
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper | 200-690 | — | — | 45-315 | — | — |
