quality coord3 cmm directly sale for small areas

Company Advantages
1. The whole production of Sinowon coord3 cmm is supported by the technicians with extensive industry expertise and the leading production technology. The Gost certificate has been obtained for the Russian market
2. The product has been a part of people's lives. It plays an important role in replacing human to finish the dangerous or tedious tasks. It is aimed at more than 60 countries and regions for exports
3. The product is safe and durable and can be used for a long time. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
4. The quality of the product is consistent with the requirements of international quality standards. The product is well known for high accuracy and great stability
5. The product is regularly reviewed for quality to ensure reliable quality. It is up to both domestic and international standards

Application:

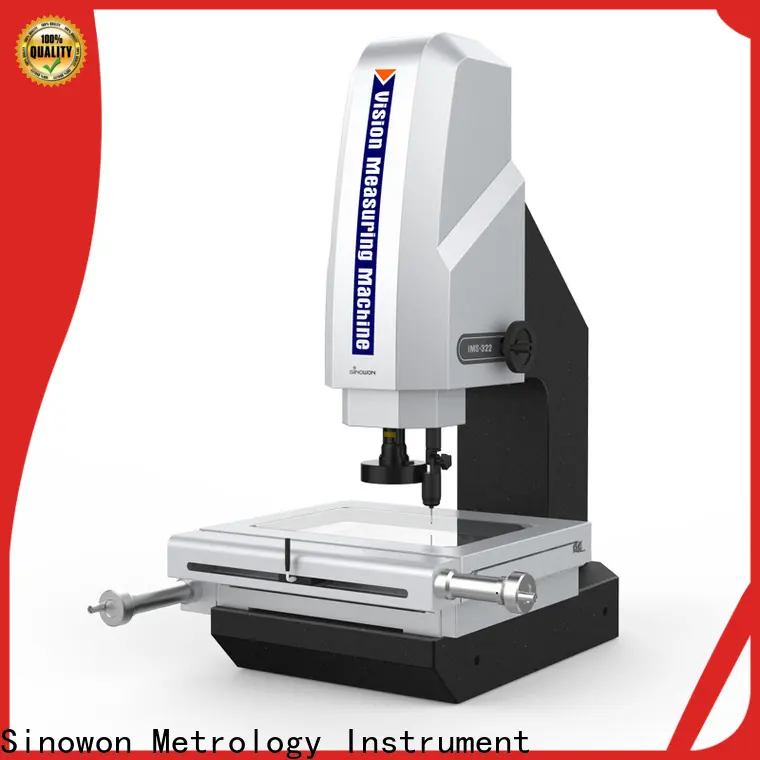

Sinowon IMS-322R is multisensor vision coordinate measuring machine, it not only can measure the linear size, such as: point, line, cycle, arc, angle, rectangular hole, but also can measure the geometrical size, such as: straightness, flatness, circularity, cylindricity, perpendicularity, parallelism, angularity, concentricity, symmetry, position, profile, surface In the workshop and laboratory, most of measurement job can be done by multisensor measuring machine, it is widely applied to measure the dimension of Hardware, Mold, Machining, Precision Manufacturing, Automotive Parts, Stampings, Aerospace Components, Plastic & Rubber Products, Mobile Phone Industry, PCB Boards, Electronic Components, Semiconductor Components, Flat Glass (Touch Panels & LCD Panels), Medical Devices , tools and other fields, etc.

Product Features:

l  High precision marble base and pillar, to ensure high stability and accuracy;

l  High precision linear guide, toothless rod and fast-moving locking device, to ensure hysteresis error is within 2um;

l   High accuracy A grade optical linear scale with precision working stage, to ensure the accuracy is within 2.2+L/200um;

l  6.5X Electronic zoom lens and high-resolution digital camera, to ensure clear image without distortion;

l  With programmable surface LED Cold Illumination, LED coaxial Cold Illumination, contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness;

l  Powerful function RationalVue Measuring Software, highly enhance the quality control;

l  Imported contact probe and powerful function 3D Measuring Software, highly enhance the quality control.



Technical Specification：

Commodity	3D Multi-sensor   Vision Measuring Machine
Mode	iMS-322R
Code#	521-260R
Marble Table	458x358mm
Glass Table	356x248mm
X/Y/Z Travel	300x200mm
Z-axis Travel	High-precision linear guide, working travel 200mm
X/Y/Z 3-Axis Linear Scale	High Accuracy A-grade linear scale, Resolution: 0.0005mm
X/Y axis Guidance Mode	High precision linear guide, toothless rod and fast-moving locking device
Base and Pillar	High Accuracy Marble Base and gantry Pillar
3D probe measuring system	Renishaw MCP-K Probe 3D measuring system 100mm calibration block or optional 25mm calibration ball
Accuracy	E1xy ≤2.2+L/200(um)
	E1z ≤4+L/200(um)
Repeatability	2um
Vision Touch Sensor	High Resolution digital camera
	6:5:1 High Resolution Electronic Zoom Lens
	Magnification: 0.7X~4.5X; Video Magnification: 26X~172X
Illumination System (Software Adjustment)	Surface: Stepless adjustable LED Cold Illumination.
	Coaxial: LED Parallel Illumination
	Contour: LED Parallel Illumination
	LED Laser Navigation Light
Measuring Software	RationalVue Measuring Software
Load Capacity	20Kg
Operation System	Support WIN 10, 32/64 operating system
Language	English, Korean, Chinese, Spanish, German, Korean etc.
Power Supply	220V/50Hz; 110V/60Hz
Dimension(WxDxH)	838x667x1000mm
Packing Size(WxDxH)	1080x780x1290mm
Net /Gross Weight	185Kg/275Kg

Standard Delivery：

Optional Accessories：

Company Features
1. Thanks to the brand popularity for Sinowon, Sinowon Innovation Metrology Manufacture Limited. is growing stronger and stronger in field of coord3 cmm . We have the best management team. They have experience in selecting, assigning, managing, and monitoring staff to make progress and increase working efficiency.
2. Our company has assembled an incredibly dedicated manufacturing team. With years of combined experience, they have been specialists in providing high-quality products for our customers.
3. We have professional staff, some of whom are recognized and accepted as leading experts in their field. They have deep expertise that gives the company a base of intellectual capital. Sinowon Innovation Metrology Manufacture Limited. always puts customers at first place and will actively help customers solve problems. Please contact us!
