rockwell hardness examples from China for measuring Sinowon
- Sinowon innovates business setup and sincerely provides one-stop professional services for consumers.
1. The distinguished design of Sinowon hardness measuring device makes it look more attractive.
2. The product has a smooth surface without bumps. All parts are welded seamlessly together welding materials and are grinded and polished.
3. The product is quite efficient. It has a couple of components that help it get started, consuming less energy when getting the system to work.
4. Our rockwell hardness examples are popular overseas.
Product Feature

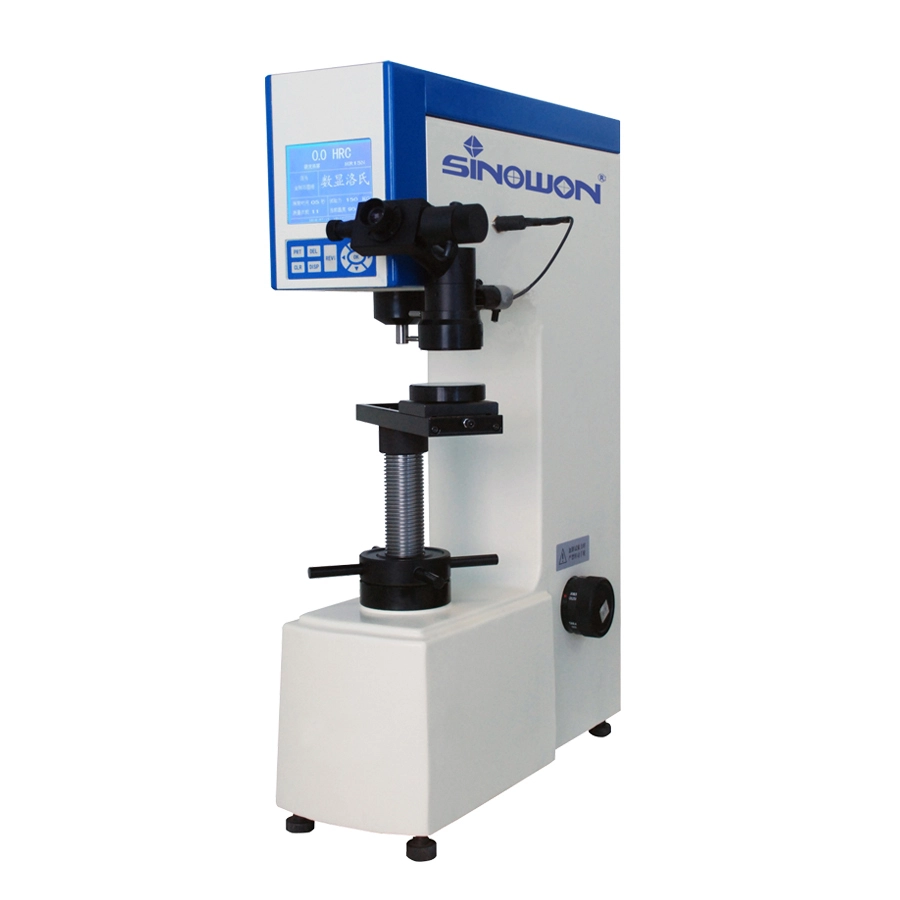

◆ Vexus SHR-187.5 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
◆ Vexus SHR-187.5 equips 7-testing-foce and 5-indenter, it is universal to measure most of metal material.
◆ Vexus SHR-187.5 dwell time from 2 to 60S can be setup on LCD panel, it is much convenient than the setup on the manual hardness tester;
◆ Vexus SHR-187.5 loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum ;
◆ Vexus SHR-187.5 doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.
Specification
| Product Name | Digital Universal Hardness Tester |
| Model | Vexus SHR-187.5D |
| Code# | 811-161 |
| Rockwell Scales | HRA, HRB, HRC |
| Rockwell Testing Force | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
| Brinell Scales | HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
| Brinell Testing Force | 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
| Vickers Scales | HV 30、HV100 |
| Vickers Testing Force | 30Kgf(294.2N)、100Kgf(980.7N) |
| Rockwell Hardness Indication | Digital LCD display |
| Rockwell Resolution | 0.1HR |
| Loading Control | Automatic |
| Magnification of Microscope | Brinell:37.5x; Vickers:75x |
| Dwell Time | Adjustable 2~60s |
| Max. Height Of Specimen | Rockwell:170mm; Brinell, Vickers:140m |
| Instrument Throat | 165mm |
| Dimension(LxWxH) | 520 x215 x700mm |
| Packing Dimension | 630 x440 x960mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T230 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. enjoys good fame in the marketplace. We are highly recognized as a qualified manufacturer for the well-made hardness measuring device .
2. rockwell hardness examples is well-known for its quality.
3. The ultimate goal of Sinowon Innovation Metrology Manufacture Limited. is to achieve continuous improvement in product quality and service. Ask online! Sinowon Innovation Metrology Manufacture Limited. aims to create a famous brand with high efficiency, high quality and excellent service. Ask online! Sinowon Metrology Instrument serves the customer, understands the needs and try to meet those needs. Ask online!
