    SU-320R Roller Ultrasonic Hardness Tester 4

    Brief Introduction

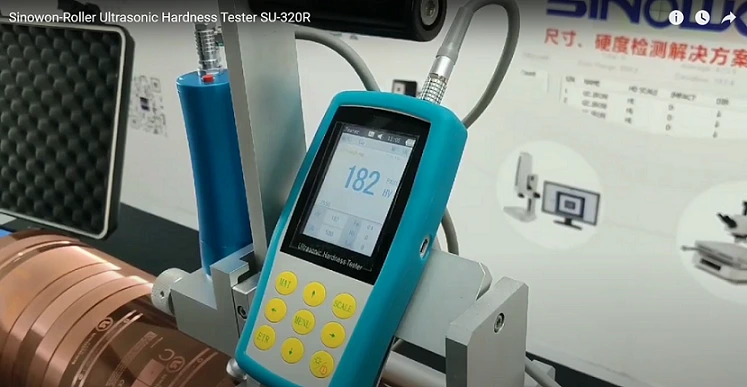

    l  SU-320R Roller Motorized Ultrasonic Hardness Tester is a professional portable durometer made by Sinowon group. It applies method of ultrasonic contact independence to make hardness testing of copper plating and chrome in the workshop of Rotogravure industry.

    l  SU-320R standard motorized probe is MP-300 with 3N testing force. 2N motorized probe is option available if the chrome coating thickness is less tan 15um.

    l  SU-320R conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.

    Product Characteristic:

    l  Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB.

    l  Microscopic Indentation——the indentation only can be observed by high-power microscope

    l  Quick Measurement——Result in 6 seconds.

    l  Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.

    l  Friendly Operation——The precise resultt will be display after one shot press

    l  Promised Warranty——2-Year warranty for main unit (Excludes Probe).

    l   Mass Storage——Save 1000 groups measurement data.

    l   Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.


    Technical Specification:

    Commodity

    Roller  Ultrasonic Hardness Tester

    Model

    SU-320R

    Code

    882-141R

    Standard Probe

    3N Motorized Probe

    Hardness Range

    HV:20-1700;

    Accuracy(%)

    Scale

    250HV

    250~500HV

    500~800Hv

    800HV

    HV0.3

    ±3%

    ±3%

    ±3%

    ±3%

    Display Scales

    VickersHV); RockwellHRAHRBHRC; BrinellHB);)

    Display   Screen

    3.2“ Color LCD

    Statistics

    Hardness value, Max, Min, Average, hardness conversion and Test Mode

    Language

    Chinese,English, German, Portuguese, Turkish

    Data Output

    USB

    Printing

    Portable Bluetooth Printer

    Memory

    To save 1000-groups of measuring data and 20-groups of   calibration data

    Word input

    Letters and numerals

    Working Environment

    Temperature: -10°C to 50°C ;    Humidity   :30%-80% R.H.

    Battery Voltage

    Rechargeable lithium battery  ; Voltage :4.2V,   4800mAh

    Re-charger Voltage

    AC220V/50Hz, 110V/60Hz

    Unit Dimension

    Main unit Dimension :160 x 80 x 30mm (L x W x H);

    Packing Dimension

    Packing Dimension 320 x 430 x 155mm (L x W x H)

    Net/Gross Weight

    2Kg/8Kg

    Standard Delivery:

    Product Name

    Code #

    Product Name

    Code #

    Product Name

    Code #

    Instrument

     Main Body

    882-141R

    3N Motorized Probe

    882-221

    Anti Vibration Case

    882-901

    Testing Stand

    MU-200

    Probe Cable

    882-801

    Screw

    882-951

    USB Re-charger

    882-851

    USB Cable

    882-810

    Operation Manual Qualification Certificate

    Warranty Card

    SU-320R




    Application


    SU-320R Roller Ultrasonic Hardness Tester 5
