Sinowon autofocus optical gaging products factory price for small parts
Product Feature
◆ The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
◆ Coating process reflector, clearer image and great dustproof;
◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;
◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;
◆ High resolution optical system with clear image and magnification error is less than 0.08%;
◆ Powerful Bi-axial fan cooling system，highly increase using life;
◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;
◆ Built-in Mini-printer, can print and save data;
◆ With standard 10X objective, optional 5X,20X，50X，100X objective，rotary table, foot switch ,clamp, etc.
Specification

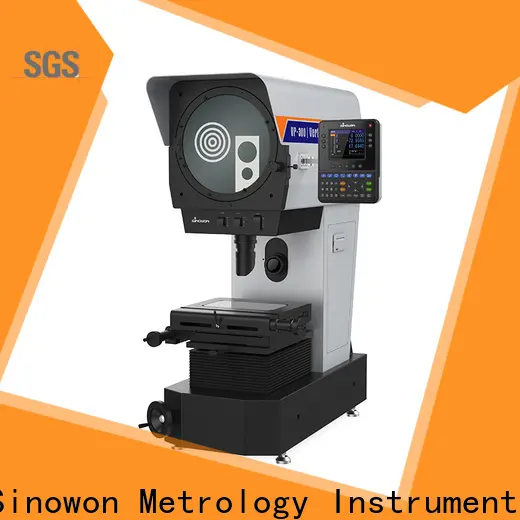

| Product Name | Ø300mm Digital Vertical Profile Projector | ||
| Reverse Image | VP300-1510A (#511-330A) | VP300-2010A (#511-340A) | |
| Obverse Image | VP300-1510AZ(#511-330AZ) | VP300-2010Z(#511-340AZ) | |
| Metal Stage Size | 258x308mm | 258x358mm | |
| Glass Stage Size | 148x206mm | 148x256mm | |
| Stage Travel | 150x100mm | 200x100mm | |
| Product Dimension(L×W×H) | 988x563x1157mm | 988x563x1157mm | |
| Packing Dimension(L×W×H) | 1200x800x1500mm | 1200x800x1500mm | |
| Focusing | 90mm | ||
| Accuracy | ≤3+L/200(um) | ||
| Resolution | 0.0005mm | ||
| Load Capacity | 10Kg | ||
| Screen | Dia:φ312mm,Measurement Range ≤ Ø300 | ||
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6’ | |||
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout | ||
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED | ||
Working Environment | Temp 20℃±5℃，Humidity 40％－70％RH | ||
| Power Supply | AC110V/60Hz; 220V/50Hz,150W | ||
| Cold-air Blowing System | 3-axis Powerful Fan | ||
| Gross/Net Weight | 210/165kg | 240/180kg | |
