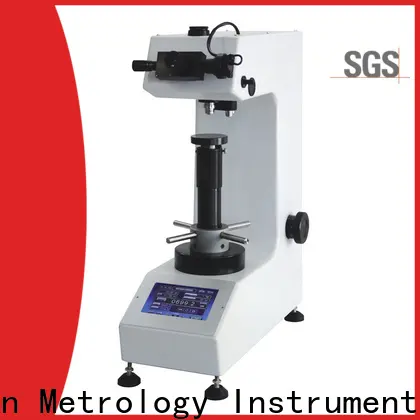

Sinowon automatic micro vickers hardness tester customized for small parts

Model:

Vicky TV-10Plus

Code#:

821-240Plus

Warranty:

12 month

Delivery Time:

15-30days

Standard:

JIS B -7735, ASTM E-384 and ISO 6507-2

Certificate:

Inquiry

Sinowon automatic micro vickers hardness tester customized for small parts 2

Characteristics

◆ Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen, high resolution, easy to operate;

◆ Strong and stable body;

◆ LED illumination, light, adjustable, long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ Conversion between different scales;

◆ Can be developed to semi-automatically system.

Specification

Model		Vicky TV-10Plus	Vicky TV-30Plus	Vicky TV-50Plus
Code#		821-240Plus	821-260Plus	821-280Plus
Test Load	Kgf	0.2 / 0.3 / 0.5 / 1 / 2 / 3 / 5 / 10	0.3 / 0.5 / 1 / 3 / 5 / 10 / 20 / 30	1 / 2 / 3 / 5 / 10 / 20 / 30 / 50
	Nf	1.961 / 2.942 / 4.903 / 9.807 / 19.614 / 29.42 / 49.035 / 98.07	9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35	9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35
Loading Mechanism		Automatic loading and releasing method 50~100 µm/s
Dwell Time		5 ~ 99 s
Turret Mechanism		Automatic
Diamond Indenter		VICKERS INDENTER (FOR HV)
Objective	Normal	10X , 40X	10 X , 20X	10X
	Option	40x, 20x, 5X
Measuring Microscope Eyepiece		Electronic Type 10X
Max. Measuring length		900 µm ( In case of 100x ) 230 µm ( In case of 400x )
Mix. Measuring unit		0.1µm (0.01µm for CTS type)
Max. Specimen Height		200mm
Max. Specimen Depth		160mm
Measuring Hardness Scale		HV, HK
LCD-Touch Operation Panel		Load start / set up zero / dwell time / light adjustment / transformation scale turret location / data processing ( browse / delete / print )System settings( test conditions / language/Communications/factorysettings )
Numerical Display		D1 value / D2 value / HV-HK Instructions / hardness value /conversion value / load value / dwell time / test times / turret location
Print Output		Measured data and statistic data ( Max. Value / Min. value / Mean value / Range / Standard deviation )
Light Source		LED Illuminator
Accuracy		Conform to : JIS B -7735, ASTM E-384 and ISO 6507-2
Photographic Device		Capable to mount photographic device ( Option)
Dimensions		W 226 × D 560 × H 660 mm
Weight		72KG
Power Supply		Single phase AC 220 V 50/60 Hz

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
