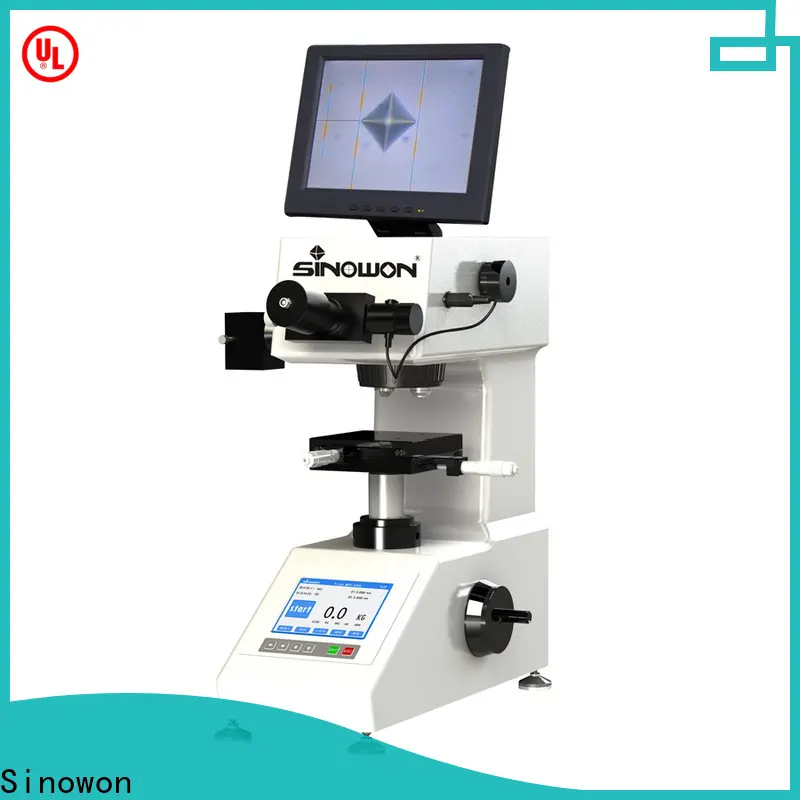

Sinowon automatic micro vickers hardness tester customized for thin materials

Company Advantages
1. The touch screen of Sinowon micro vickers hardness testing machine adopts resistive touch screen technology which relies on the pressure of fingers, pens or anything. Its quality and accuracy are improved every year
2. The product is able to help business owners save time, eliminate data duplication, and thus increases the efficiency of the operation. The product is analyzed and tested cautiously before packing
3. The product has a smooth surface. The sprue on each piece is cut off and the ring castings are cleaned up to remove any imperfections. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
4. The product has been improved in the heat dissipation capacity. Adopting reasonable and reliable electric circuits, the whole operation process features high efficiency. It is aimed at more than 60 countries and regions for exports
5. The product is durable enough. It is made of 304 stainless steel and formed by automated laser welding, thus there is no possibility of damage. It is up to both domestic and international standards

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

◆ Combined with MV-1000 video measuring devices, It improves efficiency, reduces visual fatigue of the operator.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Product Name		Micro Hardness Tester with Measurement Monitor
Model		MV-1000V
Code#		823-101V
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Indentation Measuring Device		MV-100
Switch of Objectives and Pressure Switch		Auto-turret
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Video System		CMOS Measuring Eyepiece, 8 "Display
Dwell Time		5-60s
Measuring Range		1HV-2967HV
X-Y Anvil		Size：100X100mm；  Travel：25mm X 25mm;Resolution：2um
Maximum Height and Width of Specimen		Maximum Height：70mm; Maximum Width：95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		425X245X490mm
Gross/Net Weight		45kg/35Kg
Executive Standard		GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a very wide range of products. No other company can compare to the strong technical strength of Sinowon Innovation Metrology Manufacture Limited. in the industry.
2. Sinowon has high requirements on quality before delivering to customers.
3. With its stable product quality and its brand, Sinowon Innovation Metrology Manufacture Limited. has established service networks nation-wide to serve consumers. Sinowon's work adheres to the policy of micro vickers hardness testing machine development. Inquire!
