Sinowon Brand pipelines video system military vision measurement system

Model:

MVS-3020/MVS-4030

Code#:

523-360

Accuracy:

XY-axis：≤2.2+L/200(um) Z-axis：≤5+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GBT 24762' ISO30160

Certificate:

Gost CE

Inquiry

Application Scope

The vision measuring machine of is applicable in the following scenes.With a focus on vision measuring machine, is dedicated to providing reasonable solutions for customers.

Product Details

Next, will present you with the specific details of hardness testing machines.

Company Advantages
1. The product has been installed in many countries such as the US, Canada, Mexico, and Germany. Sinowon team members work in close harmonization to accomplish the specified requirements of the industry.
2. vision measurement system offers several advantages in terms of video measuring system prices. The product is excellent in dust prevention
3. The product is well used in many large engineering projects. the professionals recruited by us are holds detailed knowledge and vast experience in this domain.
4. Innovation is always made to update the product. the daily development habits of Sinowon helps it produce the top-notch quality vision measurement,video measuring equipment.

Sinowon Brand pipelines video system military vision measurement system 9

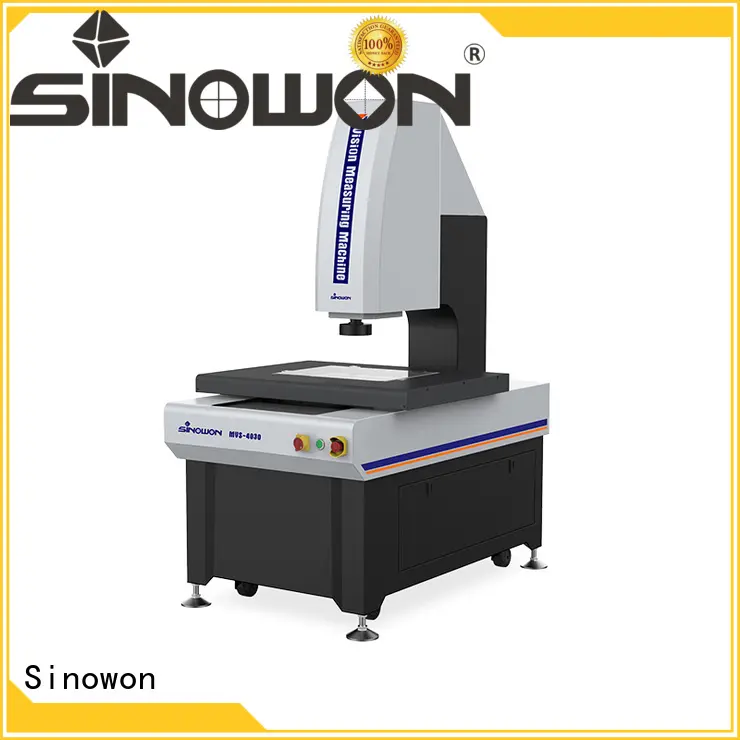

MVS is an economic Fully Auto Vision Measuring Machine for basic measurement, three-axis motorized control, with click zoom lens, accurate manual zoom, high configuration, to meet with different application. It is widely used in Metal mold, electronic industry, medical equipment and flat panel display industry, as well as research institutes, colleges and universities, metrology institutions and dimension inspection on production line.

Product Characteristics

◆ High precision X/Y/Z-axis CNC fully auto control, high position accuracy;

◆ Marble base and pillar, stable and reliable;

◆ 0.5um high precision linear scale, ensure position and measurement accuracy;

◆ Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;

◆ 6.5X click zoom lens, precision manual zoom, only need to make pixel calibration once time;

◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

◆ With proprietary powerful function fully auto measuring software iMeasuring 4.1;

◆ Can set auto measurement, and finish batch measurement with high efficient;

◆ Laser, probe, coaxial illumination and other parts are optional;

◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification

Product Name		2.5D Automatic Vision Measuring Machine
Model		MVS-3020			MVS-4030
Code#		523-360			523-370
X/Y-axis Travel（mm）		300x200			400x300
Z-axis Travel（mm）		200
X/Y/Z 3-axis Linear Scale（mm）		High precision linear scale，resolution：0.0005mm
Guidance Mode		Precision linear guide，double-track double slider guide
Operation Mode		Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy*		XY-axis：≤2.2+L/200(um)
		Z-axis：≤5+L/200(um)
Repeatability		±2um
Video System**		High definition 1/3" Color CCD Camera,
		6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification:26X~172X(21.5”monitor)
Field of View(mm) (Diagonal * Horizontal*Vertical)	Lens Magnification	0.7X	1X	2.0X		3.0X	4X	4.5X
	1/3"CCD	8.57x6.86x5.14	6.00x4.80x3.60	3.00x2.40x1.80		2.00x1.60x1.20	1.50x1.20x0.90	1.33x1.07x0.80
Illumination	Contour	LED Parallel Contour Illumination
	Surface	5-ring 8-division 0~255 grade continue adjustable
Software System		iMeasuring 4.0 Fully Auto Measuring Software
Load Capacity		25Kg			25Kg
Working Environment		Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz
Power		220V/50Hz/10A
Dimension		1132x720x1665mm			1280x840x1688mm
Weight		380Kg			450Kg

Product Details

Software Introduction

Company Features
1. Since many years ago, Sinowon Innovation Metrology Manufacture Limited. has set up its own factory to manufacturing high quality vision measurement system.
2. Sinowon Innovation Metrology Manufacture Limited.'s developing level of technical strength has far exceeded its vision measurement rivals.
3. Our entire company strives to provide the best possible service to you. Inquire!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
