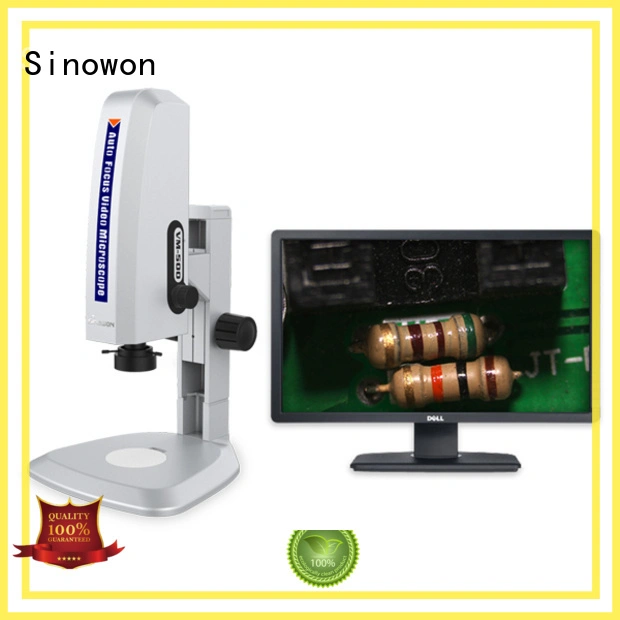

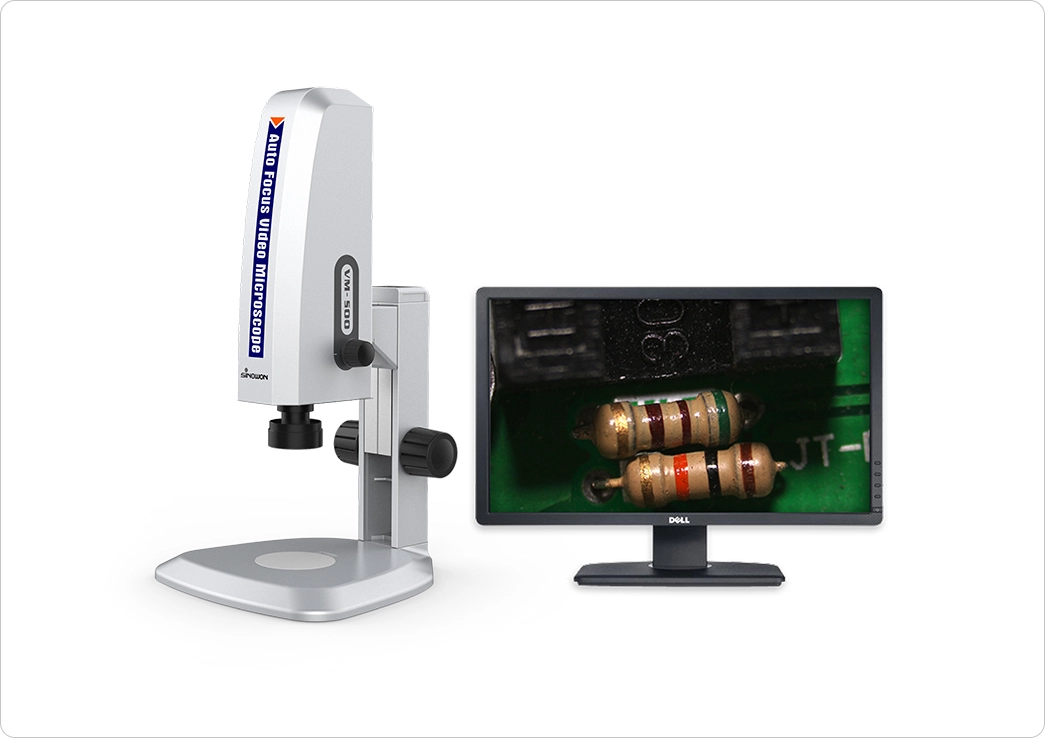

Sinowon Brand production line weld detects electronic industry china microscope exquisite
1. More than 10,000 pcs have been delivered and installed. On-time delivery, client-centric approach, transparent dealings and easy payment modes make us competent to become the preferred choice for Sinowon customers and achieve the utmost position in the industry.
2. The Sinowon Video Microscope includes a motorized china microscope in lieu of hand-wheel version. The product is verified by ISO9001:2015 to be quality ensured.
3. It is easy to operate, with fast speed. using the best grade material, we are successfully manufacturing, trading, wholesaling and supplying a wide gamut of digital microscope review,digital binocular microscope.
Application:

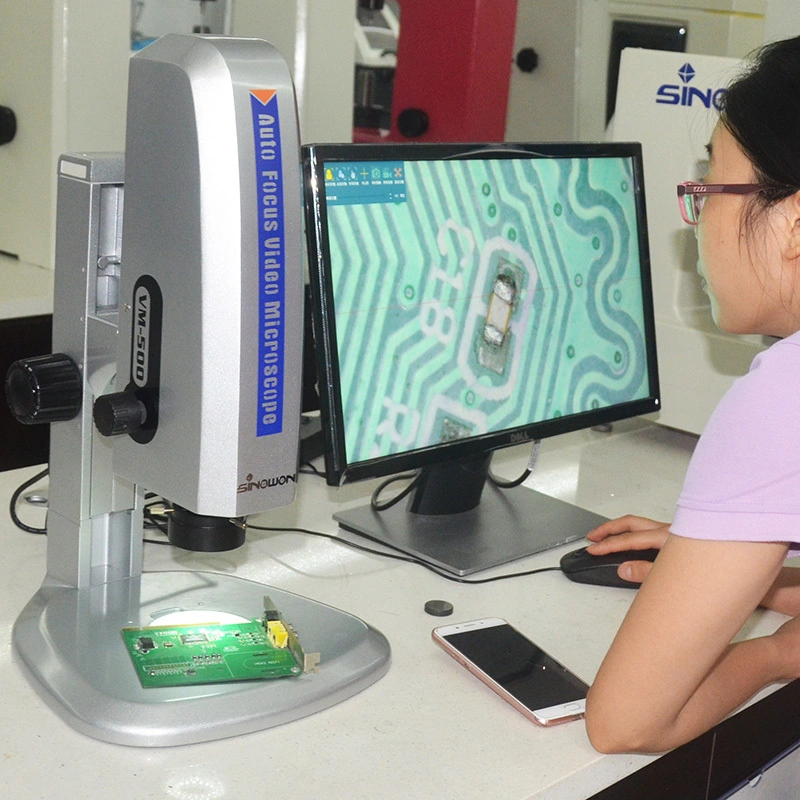

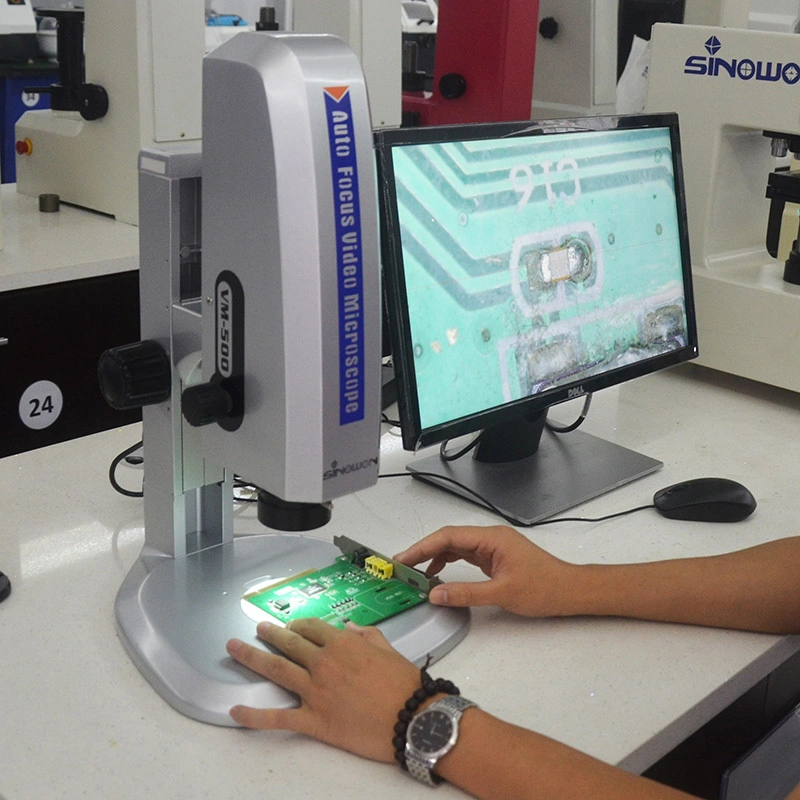

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Specification
| Product Name | Auto Focus Video Microscope |
| Model | VM-500 |
| Code# | 451-450 |
| Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor；） |
| Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount Camera Adapter | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.86” | |
| Frames Per Second：30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output： HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |
| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Accessories:
| Product Name | Specification |
| Microscope Main Body | VM-500 |
| Power Adapter | DC5V（Camera）、DC12V（Illumination） |
| Monitor | Optional 4:3 21.5” |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-500 |
Field of View:
| Auxiliary objective | Field of view （0.5X Camera Adapter) | ||||||||||||||||||||
| 0.7X | 1X | 2X | 3X | 4X | 4.5X | Remark | |||||||||||||||
| Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
| 0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
| 25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
| 1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
| 12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
| 2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
| 6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 | ||||
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is the first large manufacturer in China specializing in producing Video Microscope.
2. Sinowon has the ability to produce the highest quality digital microscope review.
3. We will supply high quality vision microscope with excellent service. Call!
