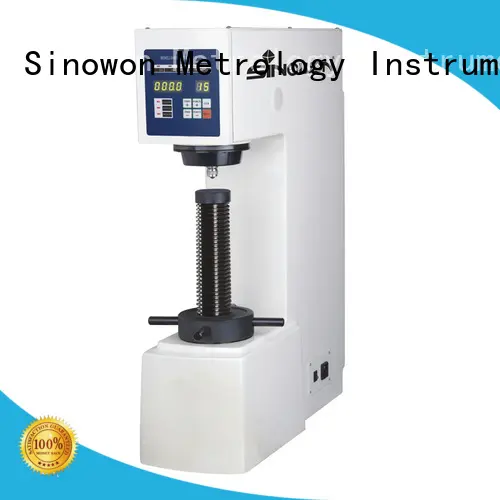

Sinowon brinell hardness test procedure customized for soft alloys

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon brinell hardness test procedure is manufactured complying with the mandatory standards for the textile industry. Its raw materials and the agents are required to pass the ingredient test to guarantee no harmful substances are contained. It can be customized according to customers' needs
2. We have the professional QC team to secure the quality of brinell hardness test procedure . The product is well used in many large engineering projects
3. The product is regarded as one of the best quality-assured products in the industry. The product is excellent in dust prevention
4. The product is in complete compliance with set industry standards. It is easy to operate, with fast speed

Sinowon brinell hardness test procedure customized for soft alloys 3



Product Feature


 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

831-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%
