A professional manufacturer of measuring & testing equipment.

Sinowon brinell hardness test procedure directly sale for nonferrous metals1 1
Sinowon brinell hardness test procedure directly sale for nonferrous metals1 2
Sinowon brinell hardness test procedure directly sale for nonferrous metals1 1
Sinowon brinell hardness test procedure directly sale for nonferrous metals1 2

Sinowon brinell hardness test procedure directly sale for nonferrous metals1

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Enterprise Strength
  • Sinowon is equipped with a professional service team. We are dedicated to providing customers with professional and efficient services.
Company Advantages
1. The design of Sinowon king hardness tester is attractive and captivating.
2. We always pay attention to the industry quality standards and the quality of our products is guaranteed.
3. If there is any damage of brinell hardness test procedure during transportation, Sinowon Innovation Metrology Manufacture Limited. will take the responsibility.
4. Sinowon Innovation Metrology Manufacture Limited.' requirement for the quality and properties of brinell hardness test procedure is very high.

Sinowon brinell hardness test procedure directly sale for nonferrous metals1 3



Product Feature

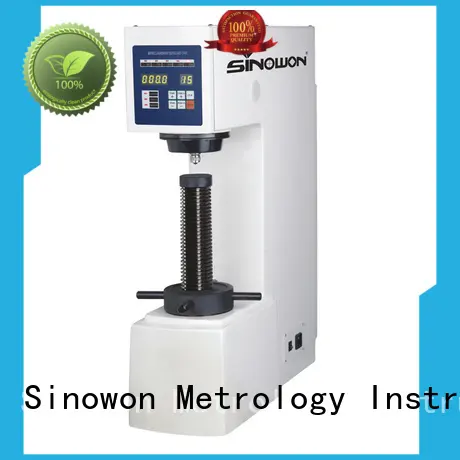

 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

861-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been putting enormous efforts on the design and production of king hardness tester . We have made extraordinary achievements in the industry.
2. International advanced development process makes Sinowon Innovation Metrology Manufacture Limited. always stand at the forefront of the industry.
3. Sinowon always puts excellence in mind and works hard toward it. Get price! Under the guidance of Sinowon’s view of brinell hardness machine , we more firmly implement the development strategy for the benefits of company. Get price! Following the principle of brinell hardness test procedure , Sinowon will create more environment-friendly products. Get price! Our professional team in Sinowon Innovation Metrology Manufacture Limited. will provide professional service for our customers. Get price!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
