Sinowon brinell hardness unit wholesale for nonferrous metals
Product Feature

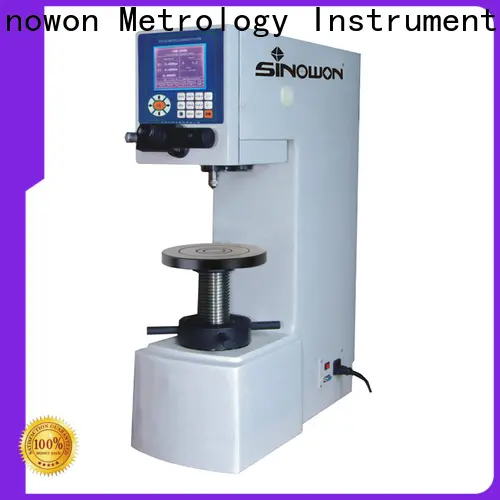

◆ SHB-3000C is a half automatic and intelligent Brinell hardness testing machine, it adopts the load cell to replace the traditional quality weight, this innovative design makes the instrument more accurate;
◆ SHB-3000C selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;
◆ SHB-3000C adopts digital Brinell microscopes with adjustable LED illuminator, it doesn’t need the operator to read the detail length of indentation, it only needs operator to aim the D1, D2 diagonal of indentation and press the length key twice above the Microscope, then the built-in computer can computer the Brinell scale and display the final testing result on LCD display automatically;
◆ SHB-3000C supports the hardness conversion , it can use Brinell scale to get conversion scale of HRC, HRB, HRC, HV, etc.
Specification
| Product Name | Digital Brinell Hardness Tester | |
| Model | SHB-3000C | |
| Code# | 831-131 | |
| Loading Force | Kgf | 62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf |
| N | 612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N | |
| Output Data | RS 232/Printer | |
| Brinell Range | (8-650) HBW | |
| Hardness Display | LCD Display | |
| Magnification of Microscope | 20x Digital Microscope | |
| Auto Hardness Conversion | HR, HV, HK, etc | |
| Vertical Space | 225mm | |
| Horizontal Space | 135mm | |
| Dimension | 893 x720 x747mm | |
| Gross/Net Weight | 160Kg/130Kg | |
| Power Supply | AC220V/50Hz;110V/60Hz | |
| Conform Standard | ISO 6506，ASTM E10 – 12，JIS Z2243，GB/T 231 | |
Accuracy | ||
| Hardness Range | Permitted Error | Repeatability |
| HBW≤ 125 | ≤± 3.5％ | ≤ 3.5％ |
| 125＜HBW≤225 | ≤± 2.5％ | ≤ 3.0％ |
| HBW＞ 225 | ≤± 2.0％ | ≤ 2.5％ |
