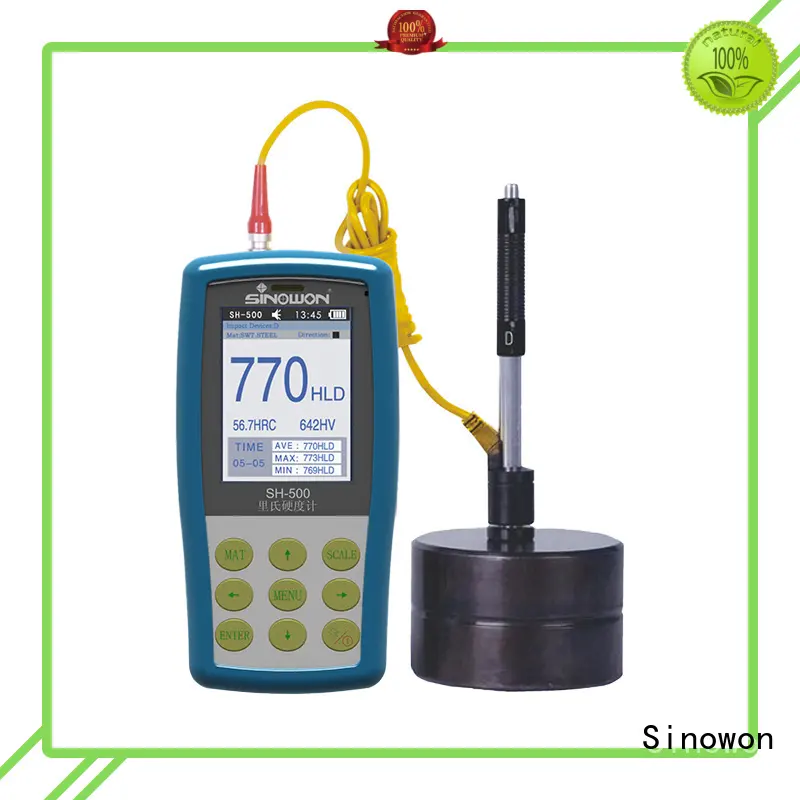

Sinowon certificated portable hardness tester machine factory price for commercial
Model:
SH-500
Code#:
852-150
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
DIN 50156,ISO 18625,ASTM A956 , GB/T17394
Certificate:
CE
Product Details
With the pursuit of excellence, Sinowon is committed to showing you unique craftsmanship in details.vision measuring machine is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.
Enterprise Strength
- Sinowon always adheres to the service concept of 'quality first, customer first'. We return society with high-quality products and thoughtful services.
1. Sinowon hand held rockwell hardness tester is provided by a strong R&D team with technical improvements.
2. Products are tested by our quality experts in strict accordance with a series of parameters to ensure the quality and performance.
3. Basic quality and safety evaluation is performed at every production stage. The product produced under these circumstances meets the strictest quality criteria.
4. Sinowon Innovation Metrology Manufacture Limited. has strong growth, upgrade and optimization capabilities.
5. Sinowon Innovation Metrology Manufacture Limited. ensures the perfection and the mobility of services.
Product Feature
◆ Metal shell, nice appearance design.
◆ Available to save 2000 groups test results.
◆ Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.
◆ 4” LCD to display hardness result, conversion results, Max, Min,Mean value;
◆ Support blue tooth printer, with RS232 to connect computer for software running;
◆ Can test all kinds of metal which more than 5kg;
◆ Indicating error ±5HLD, conform standard ASTM A956;
◆ Support 7 types of impact devices.
Application
◆ Die cavity of molds;
◆ Bearings and other parts;
◆ Failure analysis of pressure vessel, steam generator and other equipment;
◆ Heavy work piece;
◆ The installed machinery and permanently assembled parts;
◆ Testing surface of a small hollow space;
◆ Material identification in the warehouse of metallic materials;
◆ Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specification
| Product Name | Portable Leeb Hardness Tester |
| Model | SH-500 |
| Code# | 852-150 |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Data Storage | maximum 2000 Groups test Results |
| Data-Output | RS232/Printer |
| Hardness Indication | 240x160 graphic dot color LCD display |
| Hardness Scale | HL、HBW、HRB、HRC、HRA、HV、HS |
| Shell Material | Metal |
| Indicating Error | HLD：±6 HRC：±1 HB：±4 |
| Language Option | Chinese, English, German, Portuguese, Turkish |
| Statistics | Average value, min-max ,upper-lower limits |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius(convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm, G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm C: 0.2mm G:1.2mm |
| Power Supply | 4.2V |
| Operating Temperature | 0 ℃-40 ℃ |
| Dimension | 160x 80 x 31mm |
| Weight | 500g(Excluding impact device and printer) |
Standard Delivery:
| Standard Delivery | Code# |
| Instrument Main Body | 852-150 |
| Impact device type D | 852-410 |
| Hardness Block(750-830)HLD | 852-630 |
| Cleaning brush | 852-860 |
| SINOWON certificate | SH-500 |
| Recharger | 852-850 |
| Accessories Box | 852-900 |
| Instrument Manual | SH-500 |
Measuring Range / Materials:
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper | 200-690 | — | — | 45-315 | — | — |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a promising enterprise in field of portable hardness tester machine.
2. We have an extensive range of quality control facilities. They enable us to carry out intensive quality control for all incoming raw materials and the finished products.
3. Survive with quality, seek development with technology, and create profit with scale. Inquire now! Sinowon Innovation Metrology Manufacture Limited. takes talented personnel as the foundation of its development. Inquire now!
