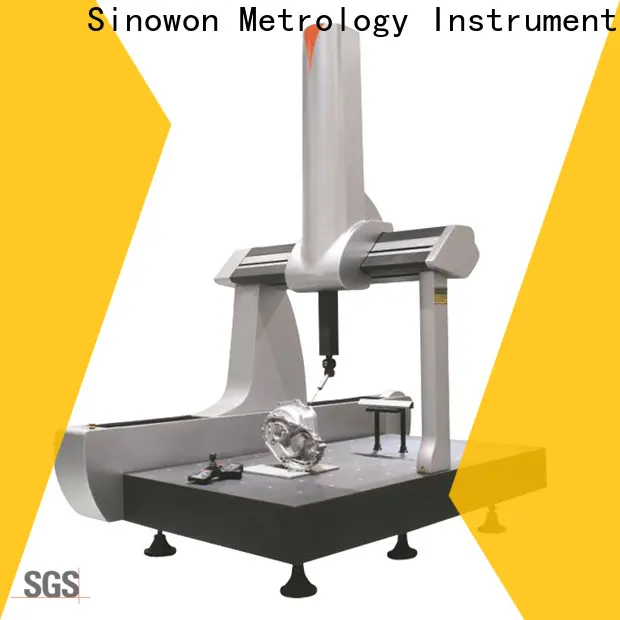

Sinowon cmm machine manufacturers manufacturer for commercial

Company Advantages
1. Several considerations of Sinowon cmm machine manufacturers have been taken into account by our professional designers including size, color, texture, pattern, and shape. The product is excellent in dust prevention
2. The product has been widely used in the global market due to its high economic return. A quality control system is implemented for the product
3. cmm machine manufacturers also has other highly marketable qualities such as cmm coordinate measuring machine . The product is well known for high accuracy and great stability

◆ Granite fixed worktable, XZ axes are made of high performance aluminium alloy, Good temperature adaptability and faster movement speed.

◆ Granite worktable with integral “dovetail” guide in Y axis, eliminate the pitch and yaw ,also provides superior motion stability.

◆ Z axis air-balance with self-protection ,improve motion capability.

◆ Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.

◆ High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped.

◆ Transmission system uses high-power  DC servo motor and new double level tape reducer to ensure rapid and accurate axes.

◆ RENISHAW tonic steel scale，Free expansion with the temperature change.

◆ Famous parts from all over the world are used in every important sub systems.

Measuring Strokes(mm)			Overall Dimension(mm)				Machine   Weight(Kg)	Max. Part Weight (Kg)
X	Y	Z	Lx	Ly	Lz
1000	1200	800	1690	2370	3150		2490	1800
Accuracy is according to ISO 10360 – 2
Maximum permissible error of indication of a CMM for size   measurement (μm)						Maximum permissible Probing Error (mm)
1.5 + 3L/1000						1.9
Scale   Resolution(μm): 0.1
Dynamic Performance
3D   positioning speed(mm/s)						3D acceleration(mm/s2)
530						1200

Room Required Specifications
Room Temperature	18～22°C
Temperature Gradient (in time)	1°C /h
Temperature Gradient (in time)	2°C /24h
Temperature Gradient (in the volume)	1°C /m
Humidity   Required Specifications
Relative   humidity	45-75％
Air   Supply System Required Specifications
Min.   air pressure	5bar [0.5 MPa]
Air   consumption	0.12-0.45m3/min
Electrical   requirements
Voltage	220 V ± 10%
Frequency	50/60 Hz
Max Power consumption	1500VA
Current	15 A
Allowed Maximum   Floor Vibration
Frequency Range	0 ~ 19 Hz      19~75 Hz > 75 Hz
Maximum Amplitude	0.0011 mm     0.0011~0.002 mm   0.002   mm
A good   earth ground (less than 4 W)   is required for reliable operation of the electrical controls.
