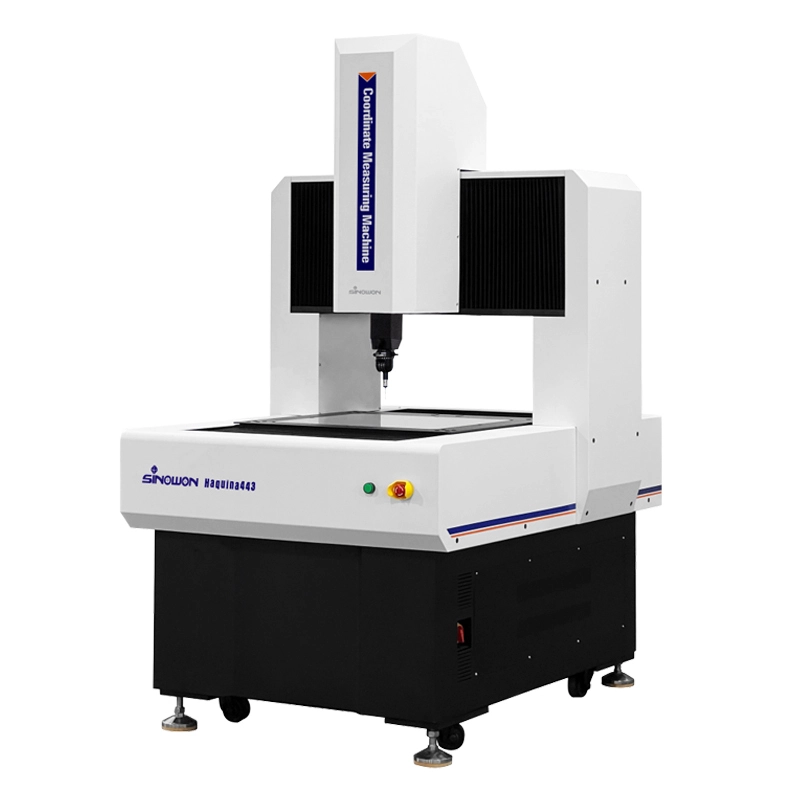

Coordinate Measuring Machine Haquina443 1

Coordinate Measuring Machine Haquina443 2

Coordinate Measuring Machine Haquina443

Model:

Haquina443

Code#:

528-210

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Coordinate Measuring Machine Haquina443 3

Product Characteristics

◆ Grade 00 marble gantry mobile structure, to ensure the stability of the machine;

◆ High-precision P class (special) three-axis guide rail, to ensure the high precision of the reference, with effective deformation resistance and good rigidity, dynamic geometric error deformation minimum;

◆ Mute screw drive device, improve the stability of three shafts;

◆ Closed-Loop Control System and Haquinasoft measurement software, which made it a cost-effective product in its class to meet your needs and provide you with a complete measurement solution.

Technical Specification

Commodity	Coordinate Measuring Machine
Model	Haquina443
Code#	528-210
Working Travel (mm)	400400300
Motor	DC Servo Motor
Control System	Renishaw UCC Close-Loop Control System
Scale Resolution	0.5mm
Maximum Permissible Error of Indication(MPE_E)	3.5+1L/200mm
Maximum Permissible Probing Error (MPE_P⁾	3.5mm
3D positioning speed(mm/s)	500
3D Positioning acceleration(mm/s²)	1000
Max Load Capacity	80Kg
Probe System	Renishaw MH20I
Computer System	WIN10 System
Measuring Software	Haquinasoft
Working Environment	Temperature：20+2℃，Relative humidity：40%-70%
Dimension (mm)	11798401714
Net Weight	300Kg
Gross Weight	500Kg
Power Supply	220V+10%, 50HZ-60HZ
