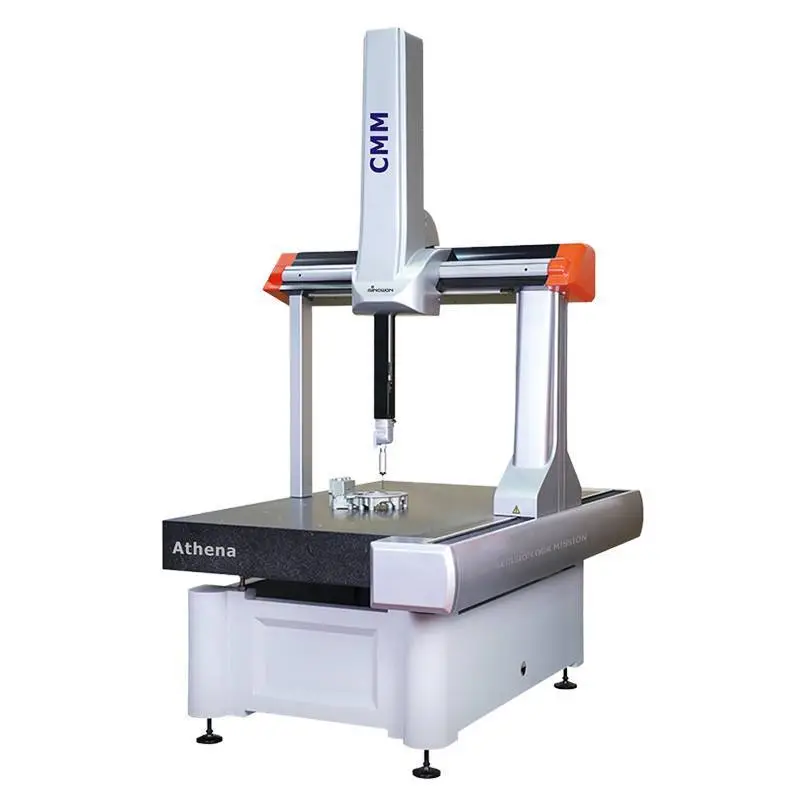

    Coordinate Measuring Machine Athena Series 3

    From the base machine structure point of view, Athena features all-aluminum construction and utilized comprehensive CAD techniques, including Finite Element Analysis (FEA) and Module Analysis, with the result of improved thermal, dimensional/torsional, and geometrical stability and reduces structural deflection and the effects of vibrations and thermal variation on measuring performance. Wrap-around air bearing design optimizes the axis kinematics movement. Therefore, the whole system characterizes the optimum measuring repeatability and long-term system consistency.




    Product Characteristics


    lX beam has adopted the ultra-rigid  technology. This structure is the best solution to lighten main carriage’s weight and improve main carriage’s stability and rigidity, so can greatly improves CMM’s performance.

    lAll machine axes’ transmission mode is timing belt, whose compact, nonskid structure makes it has excellence of high speed, low noise, and easy maintenance.

    lPneumatic counterbalance ((adjustable) for Z axis, which makes Z axis operate stably, with automatic brake on emergency condition and keep CMM in safety.

    lRemote mounted drive motors reduce moving mass for faster setting; dissipate heat away from the machine frame.

    lEquipped with the powerful measuring software which second to none, EXPLORER can handle any common shop measurement and test tasks.

    lSerein could provide professional integrated solution, including foundation, damping, air-condition room, load and unload system, etc.


    Technical Specification




    Model

    Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2)

    3D Max. Speed (mm/s)

    3D Max. Acceleration (mm/)

    HP-TMe

    HP-THDe

    HP-S-X1

    MPEE

    MPEP

    MPEE

    MPEP

    MPEE

    MPEP

    MPETHP/T

    Athena 564

    2.3+L/300

    2.5

    2.1+L/300

    2.3

    1.9+L/300

    2.1

    3.0/68

    520

    1730

    Athena 686

    2.3+L/300

    2.5

    2.1+L/300

    2.3

    1.9+L/300

    2.1

    3.0/68

    520

    1730

    Athena 8106

    2.4+L/300

    2.6

    2.2+L/300

    2.5

    2.0+L/300

    2.2

    3.5/68

    520

    1730

    Athena 8126

    2.4+L/300

    2.6

    2.2+L/300

    2.5

    2.0+L/300

    2.2

    3.5/68

    520

    1730

    Athena 8156

    2.4+L/300

    2.6

    2.2+L/300

    2.5

    2.0+L/300

    2.2

    3.5/68

    520

    1730

    Athena 10128

    2.6+L/300

    2.8

    2.4+L/300

    2.7

    2.3+L/300

    2.5

    4.0/68

    520

    1730

    Athena 10158

    2.6+L/300

    2.8

    2.4+L/300

    2.7

    2.3+L/300

    2.5

    4.0/68

    520

    1730

    Athena 10218

    2.6+L/300

    2.8

    2.4+L/300

    2.7

    2.3+L/300

    2.5

    4.0/68

    520

    1730

    Athena 10308

    2.6+L/300

    2.8

    2.4+L/300

    2.7

    2.3+L/300

    2.5

    4.0/68

    520

    1730

    Athena 121510

    2.9+L/300

    3.4

    2.7+L/300

    3.3

    2.6+L/300

    3.1

    5.0/68

    433

    1040

    Athena 122210

    2.9+L/300

    3.4

    2.7+L/300

    3.3

    2.6+L/300

    3.1

    5.0/68

    433

    1040

    Athena 123010

    2.9+L/300

    3.4

    2.7+L/300

    3.3

    2.6+L/300

    3.1

    5.0/68

    433

    1040

    Athena 152210

    3.4+L/300

    3.9

    3.2+L/300

    3.8

    3.1+L/300

    3.6

    5.2/68

    433

    1040

    Athena 153010

    3.4+L/300

    3.9

    3.2+L/300

    3.8

    3.1+L/300

    3.6

    5.2/68

    433

    1040

    Athena 152212

    3.9+L/300

    4.4

    3.7+L/300

    4.3

    3.6+L/300

    4.1

    5.2/68

    433

    1040

    Athena 153012

    3.9+L/300

    4.4

    3.7+L/300

    4.3

    3.6+L/300

    4.1

    5.2/68

    433

    1040


    Model

    Range of Travel(mm)

    Dimensions(mm)

    Daylights(mm)

    Maximum weight of the measured workpiece (Kg)

    Machine Weight (Kg)

    X

    Y

    Z

    Lx

    Ly

    Lz

    Dx

    Dz

    Dz1

    Athena 564

    500

    600

    400

    1055

    1535

    2247

    634

    114

    594

    300

    590

    Athena 686

    600

    800

    600

    1150

    1735

    2630

    734

    114

    794

    300

    730

    Athena 8106

    800

    1000

    600

    1350

    1935

    2640

    934

    114

    794

    500

    1074

    Athena 8126

    800

    1200

    600

    1350

    2135

    2640

    934

    114

    794

    500

    1196

    Athena 8156

    800

    1500

    600

    1350

    2435

    2640

    934

    114

    794

    500

    1379

    Athena 10128

    1000

    1200

    800

    1615

    2220

    2940

    1130

    118

    940

    1300

    1785

    Athena 10158

    1000

    1500

    800

    1615

    2520

    2940

    1130

    118

    940

    1500

    2090

    Athena 10218

    1000

    2100

    800

    1615

    3120

    2950

    1130

    118

    940

    1800

    2625

    Athena 10308

    1000

    2980

    800

    1615

    4020

    3010

    1130

    118

    940

    2000

    4400

    Athena 121510

    1200

    1500

    1000

    1840

    2895

    3360

    1339

    150

    1173

    1800

    3792

    Athena 122210

    1200

    2200

    1000

    1840

    3595

    3410

    1339

    150

    1173

    2250

    5696

    Athena 123010

    1200

    3000

    1000

    1840

    4395

    3440

    1339

    150

    1173

    2250

    7637

    Athena 152210

    1500

    2200

    1000

    2140

    3595

    3410

    1639

    150

    1173

    2250

    6730

    Athena 153010

    1500

    3000

    1000

    2140

    4395

    3440

    1639

    150

    1173

    2250

    9046

    Athena 152212

    1500

    2200

    1200

    2140

    3595

    3810

    1639

    150

    1373

    2250

    6760

    Athena 153012

    1500

    3000

    1200

    2140

    4395

    3840

    1639

    150

    1373

    2250

    9076

    Probe configuration for performance testing:

    HP-TMe/HP-THDe: Standard force measurement, The probe is 10mm long,The tip diameter is 4 mm.

    HP-S-X1HP-S-X1S/HP-S-X1H/HP-S-X1C, The probe is 50mm long,The tip diameter is 5 mm.

    Performance metrics are valid under the following conditions:

    Standard ambient temperature: 18 - 22°C

    Ambient temperature changes : 1°C/h - 2°C/24h

    Temperature gradient: 1°C/m

    Relative humidity: 25% - 75%

    Structure Diagram:

    Coordinate Measuring Machine Athena Series 4Coordinate Measuring Machine Athena Series 5


    RationalDMIS2 Measuring Software:

    It has obtained ANSI, ISO, GB, PTB standard certification, always synchronized with advanced standards and advanced design concepts, and fully supports the internationally popular I++ control protocol.It has a user-friendly and simple software interface, unique drag-and-drop quick operation, and seamless connection with CAD data. 100% graphical visualization from measurement to output report, which provides a complete measurement solution for enterprises.

    Rational DMIS software integrates CAD, thin-walled, and scanning modules to meet the growing measurement needs of our customers.

    Features of Rational DMIS:

    lSupports IGES, STEP, DXF, STL, XYZ and other formats;

    lSupports CATIA, UG, PRO-E, Solidworks, Parasolid direct reading interface;

    lIntelligent Detection: real-time simulation of the detection path, automatic optimisation of the detection path;

    lComplete and fast tolerance calculation: in line with GB, ISO, Y14.5, ANSI, DIN, AGMA and other standards;

    lDiverse report output; Support HTML, Excel, PDF, OUT, TXT format;

    lAbundant special modules: SPC statistical analysis, CCD composite image, line laser scanning, blade analysis, cylindrical involute gear analysis, cam analysis, network programming, network report;

    lThe core algorithm is certified by the Physikalisch-Technischen Bundesanstalt (PTB).


    Detection System:

    HH-A-T/HH-AS-T Motorised indexable probe head

    The HH-A-T/HH-AS-T automatically rotates in both vertical and horizontal directions, with a fine indexing of 7.5° ensuring up to 720 probe angle combinations. Available with probe extensions up to 300mm; can be connected to HP-TM touch probe or HP-S-X1 scanning probe.

    Indexable axis A (Pitch)


    From 0° to 105°, step of 7.5°

    Indexable axis B (Roll)

    ±180°, step of 7.5°

    Total number of position

    720

    Weight

    800 g

    Rotation Torque

    1.4Nm

    Positioning repeatability


    0.5µm

    Max. time for turning 1 index step

    1s

    Max. time for turning 90°

    2s

    Max. Extension bar

    300 mm


    HP-S-X1  Scanning probe

    HP-S-X1 is a high-speed, high-precision 3D scanning analogue probe, compatible with both triggering and scanning functions. It supports single point measurement, self-centering measurement and continuous high-speed scanning measurement for complex measurement tasks of all sizes, positions and shapes. Offering both the precision metrology of a high-precision probe and a perfect match to the HH-A auto-rotating head, it is the ideal solution for inspection of medium sized workpieces with complex edges and curved surfaces.

    Model

    HP-S-X1S

    HP-S-X1H

    HP-S-X1C

    Probe type

    Analogue

    Analogue

    Analogue

    Probe connector

    TKJ (kinematic joint)

    TKJ (kinematic joint)

    Centre mounted

    Dimensions

    TKJ (kinematic joint)

    TKJ (kinematic joint)

    TKJ (kinematic joint)

    Weight

    100g

    100g

    100g

    Resolution

    <01 um

    <01 um

    <01 um

    Measuring range

    +2 mm in all axes

    +2 mm in all axes

    +2 mm in all axes

    Linear stiffness

    1.2 N/mm

    1.2 N/mm

    1.2 N/mm

    Stylus holder thread

    M3

    M3

    M3

    Max. stylus weight

    (Including stylus clamping)

    20g

    33g

    33g

    Max. stylus length

    Axial: Up to 115 mm

    Lateral: Up to 20 mm

    Axial: Up to 225 mm

    Lateral: Up to 100 mm

    Axial: Up to 225 mm

    Lateral: Up to 100 mm
