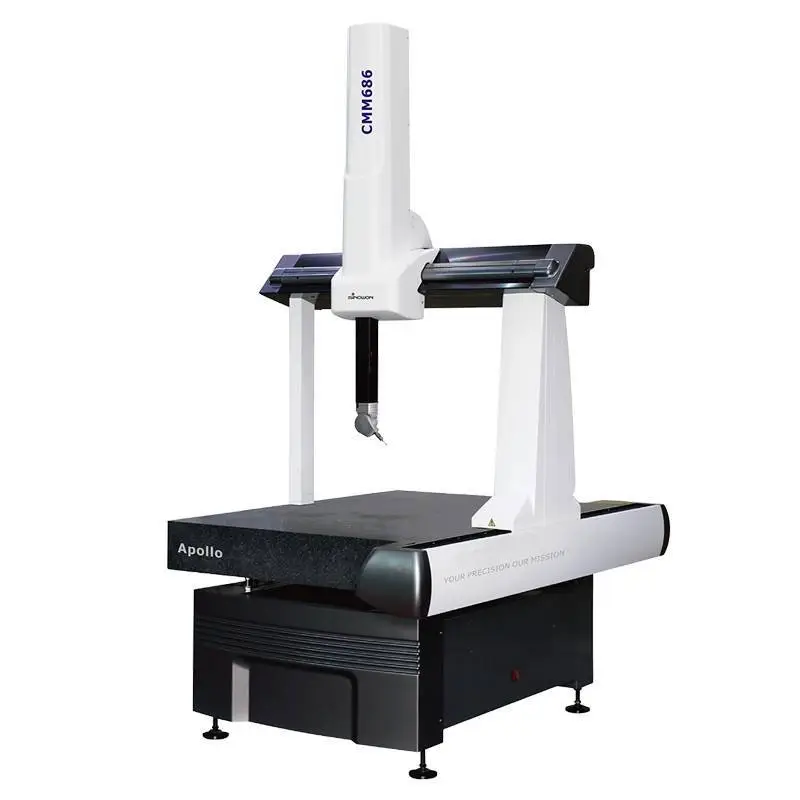

Coordinate Measuring Machine Apollo Series

    oops...!

    no product data.

    Go to homepage

    Coordinate Measuring Machine Apollo Series 5

    Apollo is a highly competitive fully automatic CMM. Equipped with powerful Rational-DMIS measurement software, intuitive, intelligent and efficient, with rich measurement modules, strong editability, strong compatibility, fully meet the personalized measurement needs.

    It is widely used in: auto parts industry, injection molding and mold industry, 3C electronics industry, cutting and tool industry, precision machining industry and other industrial metrology applications, including product inspection and fixture inspection.




    Product Characteristics


    lPneumatic balance: The Z-axis adopts adjustable pneumatic balance, which moves smoothly and automatically brakes to ensure safety.

    lTable: Heavy, stable monolithic granite table reduces the effects of vibration.

    lStructure: Movable bridge structure provides a more open measuring space.

    lGuide rail: integrated dovetail guide rail, which improves the running accuracy of the whole machine.

    lPrecision triangular beam design: improve the rigidity of the machine and lower the center of gravity of the beam, improve the accuracy and repeatability of the machine.

    lAll-aluminium frame design: Consistent deformation of all parts in case of temperature changes for easy compensation.

    lRemote placement of the drive motor: reduce the moving mass, increase the speed, and avoid the impact of the motor heating on the performance of the machine.



    Technical Specification



    Apollo 564 /686 /8xx6 Specification:

    Model

    Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2)

    3D Max. Speed (mm/s)

    3D Max. Acceleration (mm/)

    HH-MI

    HP-TMe

    HP-THDe

    MPEE

    MPEP

    MPEE

    MPEP

    MPEE

    MPEP

    Apollo 564

    2.8+L/300

    3.1

    2.6+L/300

    2.9

    2.4+L/300

    2.7

    520

    1730

    Apollo 686

    2.8+L/300

    3.1

    2.6+L/300

    2.9

    2.4+L/300

    2.7

    520

    1730

    Apollo 8106

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    2.6+L/300

    2.8

    520

    1470

    Apollo 8126

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    2.6+L/300

    2.8

    520

    1470

    Apollo 8156

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    2.6+L/300

    2.8

    520

    1470




    Probe configuration for performance testing:

    HHH-MI: The probe is 21mm long,The tip diameter is 4 mm;

    HP-TMe/HP-THDe: Standard force measurement, The probe is 10mm long,The tip diameter is 4 mm.

    Performance metrics are valid under the following conditions:

    Standard ambient temperature: 18 - 22°C

    Ambient temperature changes : 1°C/h - 2°C/24h

    Temperature gradient: 1°C/m

    Relative humidity: 25% - 75%



    Structure Diagram:

     Coordinate Measuring Machine Apollo Series 6

    Model

    Range of Travel(mm)

    Dimensions(mm)

    Daylights(mm)

    Maximum weight of the measured workpiece (Kg)

    Machine Weight (Kg)

    X

    Y

    Z

    Lx

    Ly

    Lz

    Dx

    Dz

    Dz1

    Apollo 564

    500

    600

    400

    1055

    1535

    2247

    634

    114

    594

    300

    590

    Apollo 686

    600

    800

    600

    1150

    1735

    2630

    734

    114

    794

    300

    730

    Apollo 8106

    800

    1000

    600

    1350

    1935

    2640

    934

    114

    794

    500

    1074

    Apollo 8126

    800

    1200

    600

    1350

    2135

    2640

    934

    114

    794

    500

    1196

    Apollo 8156

    800

    1500

    600

    1350

    2435

    2640

    934

    114

    794

    500

    1379



    Apollo 10xx8 Specification:


    Model

    Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2)

    3D Max. Speed (mm/s)

    3D Max. Acceleration (mm/)

    HH-MI

    HP-TMe

    HP-THDe

    MPEE

    MPEP

    MPEE

    MPEP

    MPEE

    MPEP

    Apollo 10128

    3.2+L/300

    3.4

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    520

    1470

    Apollo 10158

    3.2+L/300

    3.4

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    520

    1470

    Apollo 10218

    3.2+L/300

    3.4

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    520

    1470

    Apollo 10308

    3.2+L/300

    3.4

    3.0+L/300

    3.2

    2.8+L/300

    3.0

    520

    1470


    Probe configuration for performance testing:

    HHH-MI: The probe is 21mm long,The tip diameter is 4 mm;

    HP-TMe/HP-THDe: Standard force measurement, The probe is 10mm long,The tip diameter is 4 mm.

    Performance metrics are valid under the following conditions:

    Standard ambient temperature: 18 - 22°C

    Ambient temperature changes : 1°C/h - 2°C/24h

    Temperature gradient: 1°C/m

    Relative humidity: 25% - 75%



    Structure Diagram:

    Coordinate Measuring Machine Apollo Series 7

    Model

    Range of Travel(mm)

    Dimensions(mm)

    Daylights(mm)

    Maximum weight of the measured workpiece (Kg)

    Machine Weight (Kg)

    X

    Y

    Z

    Lx

    Ly

    Lz

    Dx

    Dz

    Dz1

    Apollo 10128

    1000

    1200

    800

    1615

    2220

    2940

    1130

    118

    940

    1300

    1785

    Apollo 10158

    1000

    1500

    800

    1615

    2520

    2940

    1130

    118

    940

    1500

    2090

    Apollo 10218

    1000

    2100

    800

    1615

    3120

    2950

    1130

    118

    940

    1800

    2625

    Apollo 10308

    1000

    2980

    800

    1615

    4020

    3010

    1130

    118

    940

    2000

    4400



    Apollo 12xx10 /15xx10/15xx12 Specification

    Model

    Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2)

    3D Max. Speed (mm/s)

    3D Max. Acceleration (mm/)

    HH-MI

    HP-TMe

    MPEE

    MPEP

    MPEE

    MPEP

    Apollo 121510

    3.3+L/300

    3.8

    3.1+L/300

    3.6

    433

    1040

    Apollo 122210

    3.3+L/300

    3.8

    3.1+L/300

    3.6

    433

    1040

    Apollo 123010

    3.3+L/300

    3.8

    3.1+L/300

    3.6

    433

    1040

    Apollo 152210

    3.8+L/300

    4.3

    3.6+L/300

    4.1

    433

    1040

    Apollo 153010

    3.8+L/300

    4.3

    3.6+L/300

    4.1

    433

    1040

    Apollo 152212

    4.3+L/300

    4.8

    4.1+L/300

    4.6

    433

    1040

    Apollo 153012

    4.3+L/300

    4.8

    4.1+L/300

    4.6

    433

    1040


    Probe configuration for performance testing:

    HHH-MI: The probe is 21mm long,The tip diameter is 4 mm;

    HP-TMe/HP-THDe: Standard force measurement, The probe is 10mm long,The tip diameter is 4 mm.

    Performance metrics are valid under the following conditions:

    Standard ambient temperature: 18 - 22°C

    Ambient temperature changes : 1°C/h - 2°C/24h

    Temperature gradient: 1°C/m

    Relative humidity: 25% - 75%



    Structure Diagram:

    Coordinate Measuring Machine Apollo Series 8



    Model

    Range of Travel(mm)

    Dimensions(mm)

    Daylights(mm)

    Maximum weight of the measured workpiece (Kg)

    Machine Weight (Kg)

    X

    Y

    Z

    Lx

    Ly

    Lz

    Dx

    Dz

    Dz1

    Apollo 121510

    1200

    1500

    1000

    1840

    2895

    3360

    1339

    150

    1173

    1800

    3792

    Apollo 122210

    1200

    2200

    1000

    1840

    3595

    3410

    1339

    150

    1173

    2250

    5696

    Apollo 123010

    1200

    3000

    1000

    1840

    4395

    3440

    1339

    150

    1173

    2250

    7637

    Apollo 152210

    1500

    2200

    1000

    2140

    3595

    3410

    1639

    150

    1173

    2250

    6730

    Apollo 153010

    1500

    3000

    1000

    2140

    4395

    3440

    1639

    150

    1173

    2250

    9046

    Apollo 152212

    1500

    2200

    1200

    2140

    3595

    3810

    1639

    150

    1373

    2250

    6760

    Apollo 153012

    1500

    3000

    1200

    2140

    4395

    3840

    1639

    150

    1373

    2250

    9076




    RationalDMIS2 Measuring Software:

    It has obtained ANSI, ISO, GB, PTB standard certification, always synchronized with advanced standards and advanced design concepts, and fully supports the internationally popular I++ control protocol.It has a user-friendly and simple software interface, unique drag-and-drop quick operation, and seamless connection with CAD data. 100% graphical visualization from measurement to output report, which provides a complete measurement solution for enterprises.

    Rational DMIS software integrates CAD, thin-walled, and scanning modules to meet the growing measurement needs of our customers.

    Features of Rational DMIS:

    lSupports IGES, STEP, DXF, STL, XYZ and other formats;

    lSupports CATIA, UG, PRO-E, Solidworks, Parasolid direct reading interface;

    lIntelligent Detection: real-time simulation of the detection path, automatic optimisation of the detection path;

    lComplete and fast tolerance calculation: in line with GB, ISO, Y14.5, ANSI, DIN, AGMA and other standards;

    lDiverse report output; Support HTML, Excel, PDF, OUT, TXT format;

    lAbundant special modules: SPC statistical analysis, CCD composite image, line laser scanning, blade analysis, cylindrical involute gear analysis, cam analysis, network programming, network report;

    lThe core algorithm is certified by the Physikalisch-Technischen Bundesanstalt (PTB).


    Detection System:

    HH-MI Manual indexing head

    The HH-MI is a manually indexable probe head featur-ing an integrated high precision touch trigger probe. The probe head is capable of indexing in 15° increments and can achieve 168 unique positions without the need of requalification. The head can be easily locked, unlocked and rotated with one hand. The built in touch trigge probe can be manually adjusted to allow for a wide range of probe combina- tions.


    Position Repeatiaility

    1.5µm

    Increments

    15°

    Angular Rotation

    A=0°-90° B=±180°

    Measuring Directions

    ±X ±Y +Z

    Adjustable trigger force

    0.1N-0.3N

    Max. stylus length

    100mm


    HH-MI-M Manual indexing head

    The  HH-MI-M is a manually indexable probe head.HH-MI-M has similar performance indicators to HH-MI, but instead of being an integrated head system, it comes with its own adapter and is compati- ble with any of the matching probes.


    Position Repeatiaility

    1.5µm

    Increments

    15°

    Total number of Positions

    168

    Angular Rotation

    A=0°-90° B=±180°

    Maximum Extension Length

    50mm


    HH-A-M7.5 Auto-rotating head

    The HH-A-T5 is a motorised indexable probe head featuring high speed operation & high rotational torque. The probe head is fitted with a Kinematic Joint (TKJ) which can be connected to a Multiwire to give multi sensor support. The TKJ can be changed either manually or automatically without the need for requalification. The probe is capable of indexing in 7.5° increments and can achieve 720 unique positions.

    Position Repeatiaility


    0.5µm

    Increments

    7.

    Total number of Positions

    720

    Angular Rotation

    A=0°-105° B=±180°

    Rotations Speed

    90° in 2s

    Maximum Extension Length

    300mm
