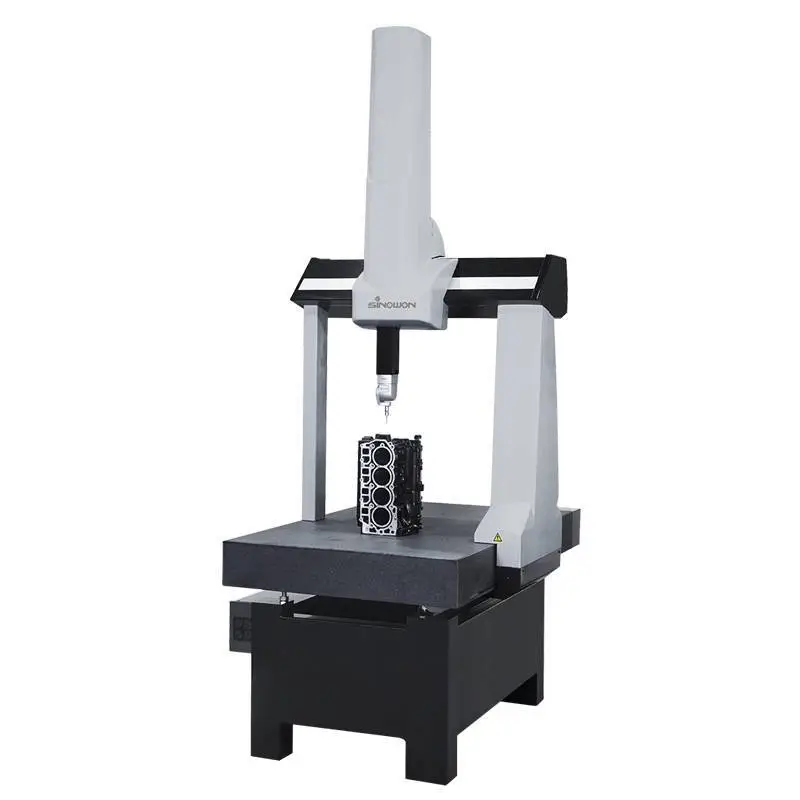

Economical Coordinate Measuring Machine  Ares Series 1
Economical Coordinate Measuring Machine  Ares Series 1

Economical Coordinate Measuring Machine Ares Series

    oops...!

    no product data.

    Go to homepage

    Economical Coordinate Measuring Machine  Ares Series 2

    The Ares main unit adopts an all-aluminum structure, and at the same time, a wide range of computer-aided design finite element analysis principles and modular design principles are applied in the design process. This makes the whole machine system have improved temperature resistance and deformation/torsion resistance, improve the stability of the spatial structure of the whole machine, and reduce the influence of structural micro-deformation, vibration and temperature gradient changes on the measurement performance. The closed-loop distributed air bearing design optimizes the mechanical movement of the measuring machine's axis. As a result, the complete system exhibits a high degree of repeatability during the measurement process and the long-term stability of the system.



    Product Characteristics


    ◆The X-direction beam adopts ultra-high rigidity precision triangular beam (Tricision ®) technology. The performance of the whole machine is improved by reducing the moving load, and it is the best structural design to ensure stability and rigidity.

    ◆The three axis are all driven by synchronous belts, which are compact, non-slipping, fast, low noise and easy to maintain.

    ◆Equipped with coordinate measuring software, it can meet any general shop floor inspection needs.

    ◆We can provide professional integrated design solutions (including foundation, vibration reduction, air-conditioned room, loading and unloading, etc.).


    Technical Specification




    Model

    Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2)

    3D Max. Speed (mm/s)

    3D Max. Acceleration (mm/)

    HP-TMe

    HP-THDe

    E0/E150

    PFTU

    R0

    E0/E150

    PFTU

    R0

    Ares 696

    2.5 + L/300

    2.8

    2.5

    2.3+ L/300

    2.6

    2.3

    520

    1730

    Ares 8116

    2.7+ L/300

    2.9

    2.7

    2.5+ L/300

    2.7

    2.5

    520

    1730


    Model

    Range of Travel(mm)

    Dimensions(mm)

    Maximum weight of the measured workpiece (kg)

    Machine Weight (kg)

    X

    Y

    Z

    Lx

    Ly

    Lz

    Ares 696

    600

    900

    600

    991

    1488

    2610

    300

    730

    Ares 8116

    800

    1100

    600

    1191

    1688

    2610

    500

    1080

    Probe configuration for performance testing:

    HP-TMe/HP-THDeStandard force measurement. The probe is 10mm longThe tip diameter is 4 mm.

    Performance metrics are valid under the following conditions:

    Standard ambient temperature18 - 22°C

    Ambient temperature changes1°C/h - 2°C/24h

    Temperature gradient1°C/m

    Relative humidity25% - 75%

    Structure Diagram:

    Economical Coordinate Measuring Machine  Ares Series 3


    RationalDMIS2 Measuring Software:

    It has obtained ANSI, ISO, GB, PTB standard certification, always synchronized with advanced standards and advanced design concepts, and fully supports the internationally popular I++ control protocol.It has a user-friendly and simple software interface, unique drag-and-drop quick operation, and seamless connection with CAD data. 100% graphical visualization from measurement to output report, which provides a complete measurement solution for enterprises.

    Rational DMIS software integrates CAD, thin-walled, and scanning modules to meet the growing measurement needs of our customers.

    Features of Rational DMIS:

    lSupports IGES, STEP, DXF, STL, XYZ and other formats;

    lSupports CATIA, UG, PRO-E, Solidworks, Parasolid direct reading interface;

    lIntelligent Detection: real-time simulation of the detection path, automatic optimisation of the detection path;

    lComplete and fast tolerance calculation: in line with GB, ISO, Y14.5, ANSI, DIN, AGMA and other standards;

    lDiverse report output; Support HTML, Excel, PDF, OUT, TXT format;

    lAbundant special modules: SPC statistical analysis, CCD composite image, line laser scanning, blade analysis, cylindrical involute gear analysis, cam analysis, network programming, network report;

    lThe core algorithm is certified by the Physikalisch-Technischen Bundesanstalt (PTB).
