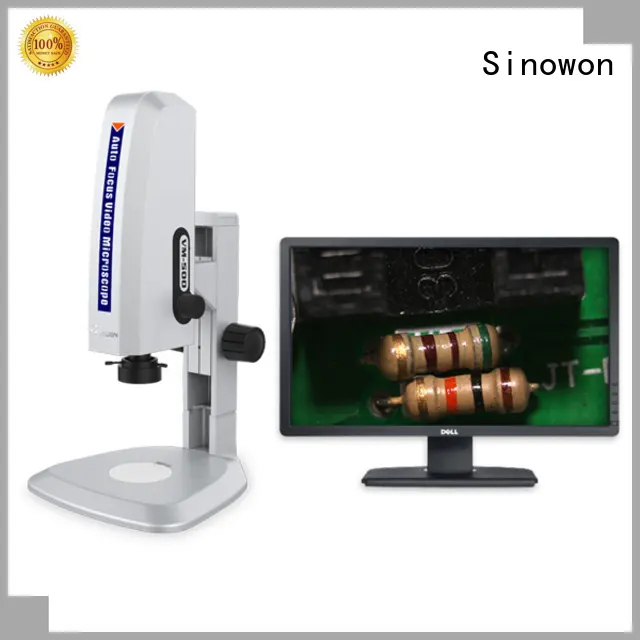

Sinowon digital microscope camera factory price for cast iron
1. Sinowon digital microscopes for sale is developed with an efficient production process. The production time of each product is greatly optimized and the loss and waste of raw materials are effectively reduced. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
2. Our quality products have a large reputation in the market. A quality control system is implemented for the product
3. This product must undergo an internal quality assurance program by our quality inspectors to ensure defect-free quality. The product is well known for high accuracy and great stability
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Specification
| Product Name | Auto Focus Video Microscope |
| Model | VM-500 |
| Code# | 451-450 |
| Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor；） |
| Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount Camera Adapter | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.86” | |
| Frames Per Second：30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output： HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |
| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Accessories:
| Product Name | Specification |
| Microscope Main Body | VM-500 |
| Power Adapter | DC5V（Camera）、DC12V（Illumination） |
| Monitor | Optional 4:3 21.5” |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-500 |
Field of View:
| Auxiliary objective | Field of view （0.5X Camera Adapter) | ||||||||||||||||||||
| 0.7X | 1X | 2X | 3X | 4X | 4.5X | Remark | |||||||||||||||
| Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
| 0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
| 25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
| 1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
| 12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
| 2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
| 6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 | ||||
