Application:
◆ Integral design, exquisite, fashion, generous;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.

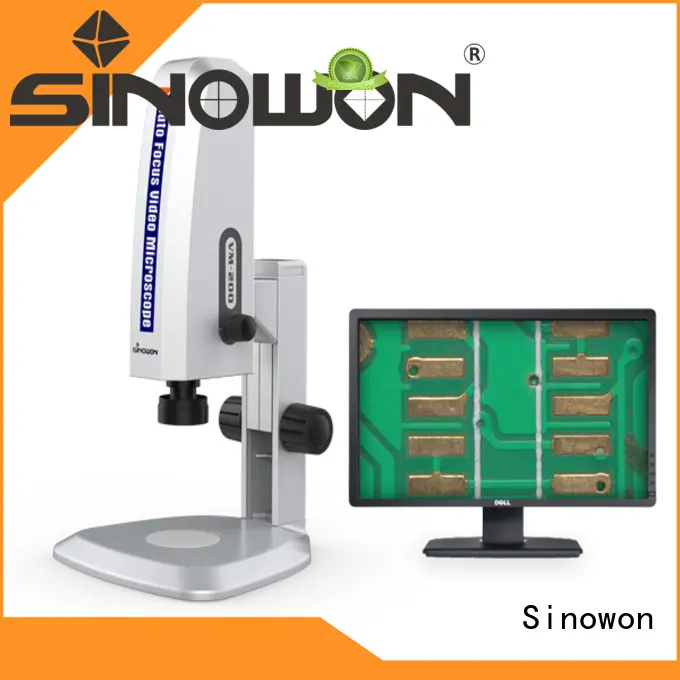

Product Name | Auto Focus Video Microscope |
Model | VM-200 |
Code# | 451-420 |
Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor;) |
Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
Zoom ratio:6.5:1 | |
0.5X C-mount Camera Adapter | |
Camera Parameters | 2 million pixel (1920*1080) |
Image Size:1/2.86” | |
Frames Per Second:30fps | |
Camera Function | Auto Focus |
Cross Line | |
Photograph and Video Record | |
Output: HDMI | |
White Balance; Brightness Control; Digital Noise Reduction | |
Illumination | Surface: Adjustable LED Surface Illumination |
Ring Fiber Illumination Optional | |
Microscope Stand | Z-axis Travel: 100mm |
Coarse Lifting System | |
Electrical Parameters | AC90~240V;50~60HZ |
Dimension | 310*285*500 mm |
Weight | 6Kg |
Accessories:
Product Name | Specification |
Microscope Main Body | VM-200 |
Power Adapter | DC5V(Camera)、DC12V(Illumination) |
Monitor | Optional 4:3 21.5” |
Operation Manual/Warranty Card/Certificate/Packing list | VM-200 |
Field of View:
Auxiliary objective | Field of view (0.5X Camera Adapter) | Remark | |||||||||||||||||||
0.7X | 1X | 2X | 3X | 4X | 4.5X | ||||||||||||||||
Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 |
