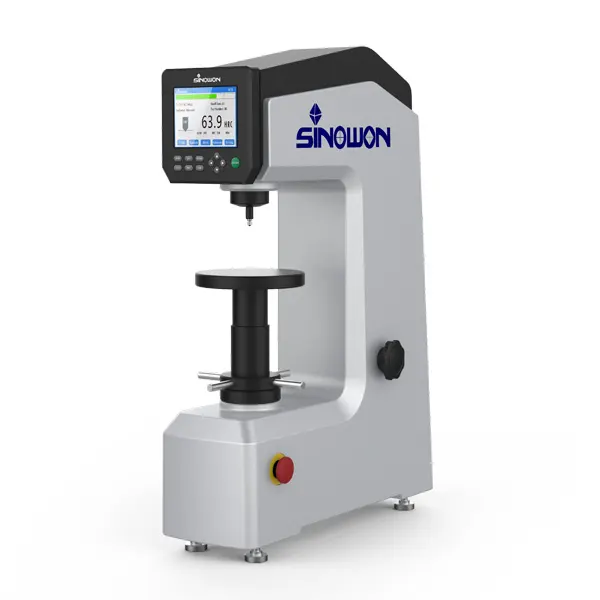

Sinowon digital rockwell hardness scale customized for thin materials

Model:
DigiRock DS3
Code#:
811-230
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
GB/T230.2, EN-ISO 6508 , ASTM E-18
Certificate:
CE
Inquiry
Company Advantages
1. The production processes of Sinowon hardness measuring device consist of these following major steps: cutting, casting, welding, coarse grinding, accurate grinding, plating, and polishing. It is supported by multiple languages say English, Turkish, and German
2. Sinowon Innovation Metrology Manufacture Limited. has a wealth of design and manufacturing experience. The product is analyzed and tested cautiously before packing
3. As a result of the implementation of a complete quality management system, products meet the most stringent quality standards. The product is verified by ISO9001:2015 to be quality ensured
4. The product meets standards in terms of quality and performance. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
5. This product is high in accordance with the first-class quality standards. It is certified under the internal and external standards and therefore it will be widely accepted by the market. Many international famous manufacturers choose this product for its premium quality

Sinowon digital rockwell hardness scale customized for thin materials 5



Product Feature


 Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.

 Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.

 Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.

 Auto hardness conversion to others scales, no need to check table and improve working efficiency.

 Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.

  With 2000 single testing results and 1000 group results. Reviewing results and analysis.

 Optional bluetooth mini printer is available.


Specification



Product NameDigital Superficial Rockwell Hardness Tester
ModelDigiRock DS3
Code#811-230
Rockwell ScalesHR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Preliminary Test Force3Kgf(29.42N)  Permitted Error:±2.0%
Addtional Test Fore147.1N(15kg)、294.2N(30kg)、441.3N(45kg)   Permitted Error:±1.0%
Dwell TimeAdjustable 1-60s
Hardness Indication5.2” Touch Screen, Resolution:640x480
Resolution0.1HR
Loading ControlAuto Loading/Dwell/Unloading
Hardness ConversionHRC、HV、HBS、HBW、HK、HRA、HRD、HRB
Conversion StandardASTM、DIN
Language OptionChinese, English, German, Portuguese, Turkish, Czech, Korean
Correction Range-3.0HR to +3.0HR, Step 0.1HR
Data Memory2000 Single Measuring Result, Curve Analysis, Results
Reviewing And Analysis
Data OutputOptional Blue Tooth Mini Printer
Max. Height Of Specimen175mm
Instrument Throat165mm
Power supplyAC220V/50Hz;AC110V/60Hz
Dimension(LxWxH)546x182x755mm
Packing Dimension620x460x870mm
Gross/Net Weight120Kg/90Kg
Execution StandardGB/T230.2, EN-ISO6508, ASTME-18


Application



Sinowon digital rockwell hardness scale customized for thin materials 6
Sinowon digital rockwell hardness scale customized for thin materials 7





Company Features
1. Sinowon has always topped and will continue topping the rockwell hardness scale market. Sinowon Innovation Metrology Manufacture Limited. has rapid expansion for customers with the help of high quality rockwell hardness and advanced technology.
2. With these core technologies, customers can always find suitable rockwell hardness examples products at Sinowon Innovation Metrology Manufacture Limited..
3. Advanced manufacturing and testing equipment can be seen in Sinowon's factory. Sinowon Innovation Metrology Manufacture Limited. adheres to the service theory of hardness measuring device . Please contact us!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
