Sinowon durable hardness testing machine series for small parts
1. Sinowon universal hardness testing machine is well developed using modern machinery and production technology.
2. The product is robust. It is able to prevent possible leaks and lost energy capacity while enduring various harsh environments.
3. The product not only brings practical value for daily life, but also it enhances people's spiritual pursuit and enjoyment. It will greatly bring a refreshing feeling to the room.
Product Feature

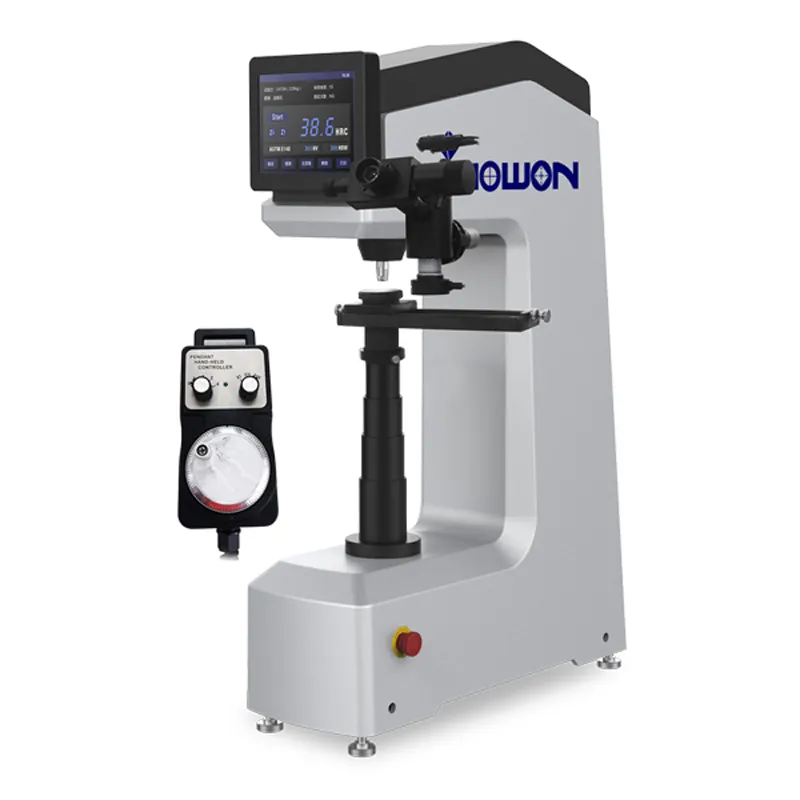

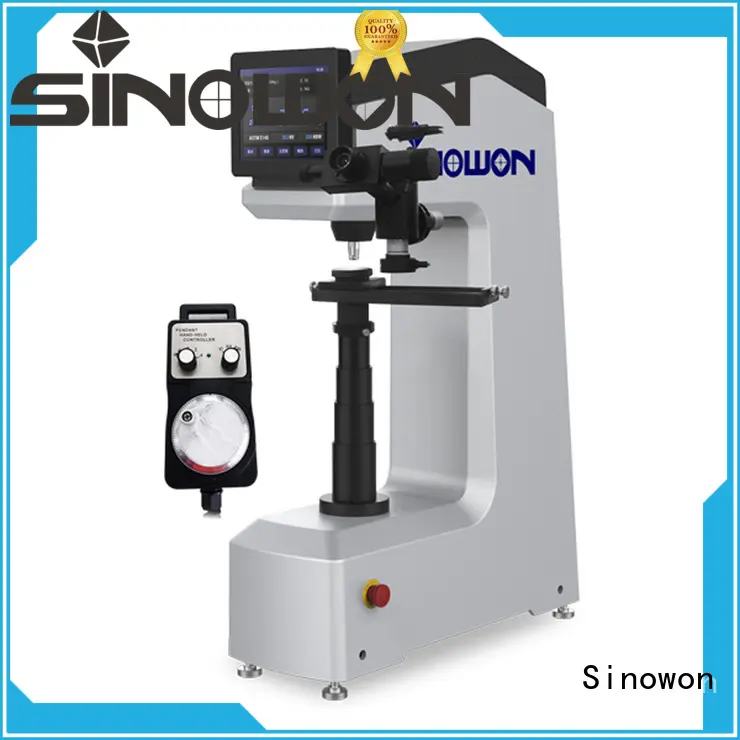

◆ DigiRock BRV3 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
◆ DigiRock BRV3 equips 7-testing-foce and 5-indenter, it is universal to measure most of metal material.
◆ DigiRock BRV3 dwell time from 2 to 60S can be setup on LCD panel, it is much convenient than the setup on the manual hardness tester;
◆ DigiRock BRV3 loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum ;
◆ DigiRock BRV3 doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.
Specification
| Product Name | Digital Universal Hardness Tester |
| Model | DigiRock BRV3 |
| Code# | 811-160 |
| Rockwell Scales | HRA, HRB, HRC |
| Rockwell Testing Force | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
| Brinell Scales | HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
| Brinell Testing Force | 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
| Vickers Scales | HV 30、HV100 |
| Vickers Testing Force | 30Kgf(294.2N)、100Kgf(980.7N) |
| Rockwell Hardness Indication | Digital LCD display |
| Rockwell Resolution | 0.1HR |
| Loading Control | Automatic |
| Magnification of Microscope | Brinell:50x; Vickers:100x |
| Dwell Time | Adjustable 2~60s |
| Max. Height Of Specimen | Rockwell:170mm; Brinell, Vickers:140m |
| Instrument Throat | 170mm |
| Dimension(LxWxH) | 620x210x900mm |
| Packing Dimension | 735x525x1025mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 140Kg/125Kg |
| Execution Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T230 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. holds a paramount position in Chinese hardness testing machine market.
2. The company embraces a pool of product development employees. They have a keen market sense and unique understanding of products, which enables them to develop creative products that other competitors can't invent.
3. The mission of Sinowon is to improve the quality of rockwell hardness testing machine with a more competitive price. Ask! Sinowon Innovation Metrology Manufacture Limited. is still working on to offer the distinguished rockwell hardness scale . Ask!
