Sinowon durometer design for small parts1

Company Advantages
1. Sinowon microhardness testing machine is manufactured applying technical method and advanced production equipment. The product is well known for high accuracy and great stability
2. Whether it is used as an event tent, festival tent or wedding marquee, this product will set the stage for a flawless occasion every time. The product is designed by professional designers to be user-friendly
3. The product has good environmental adaptability. It is not easily affected by vibration, shock, bump, extrusion, dropping, and temperature. It, up to the requirements from different industries, is widely applied

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Manually reading indentation, then input dialog length to calculate hardness value;

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

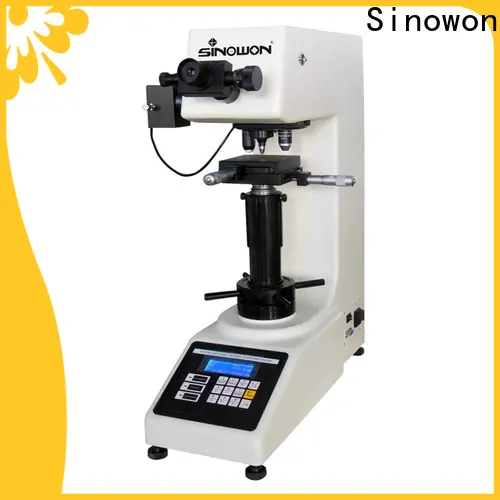

Product Name		Vickers hardness tester
Model		V-5	V-10	V-30	V-50
Code#		821-101	821-111	821-121	821-131
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x mechanical eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. As a modern enterprise in this society, Sinowon offers the first-rate durometer with competitive price.
2. We are honored with the award 'China credible complaint-free enterprise'. This award gives the expression to our overall quality and our comprehensive manufacturing strength.
3. Every vickers hardness testing machine before delivery will conduct professional debugging to ensure it's perfect in function. Call now!
