Sinowon efficient durometer manufacturer for small areas

Model:
MV-10V
Code#:
821-101V
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon digital hardness tester has passed the following physical and mechanical tests. These tests include a strength test, fatigue test, hardness test, bending test, and rigidity test. The quality is reliable and the service life is long
2. People who use this product to store food or cooking items can free of the worry of rodents and other insects to spoil them. Imported materials and accessories are used in product manufacturing
3. This product has premium quality and rich functionality. The product is well known for high accuracy and great stability
4. Its quality will be fully tested by our experienced staff before it gets loaded. It, up to the requirements from different industries, is widely applied
5. The product has attracted many customers with its high quality assurance and performance. The product has been installed in many countries such as the US, Canada, Mexico, and Germany


Sinowon efficient durometer manufacturer for small areas 3

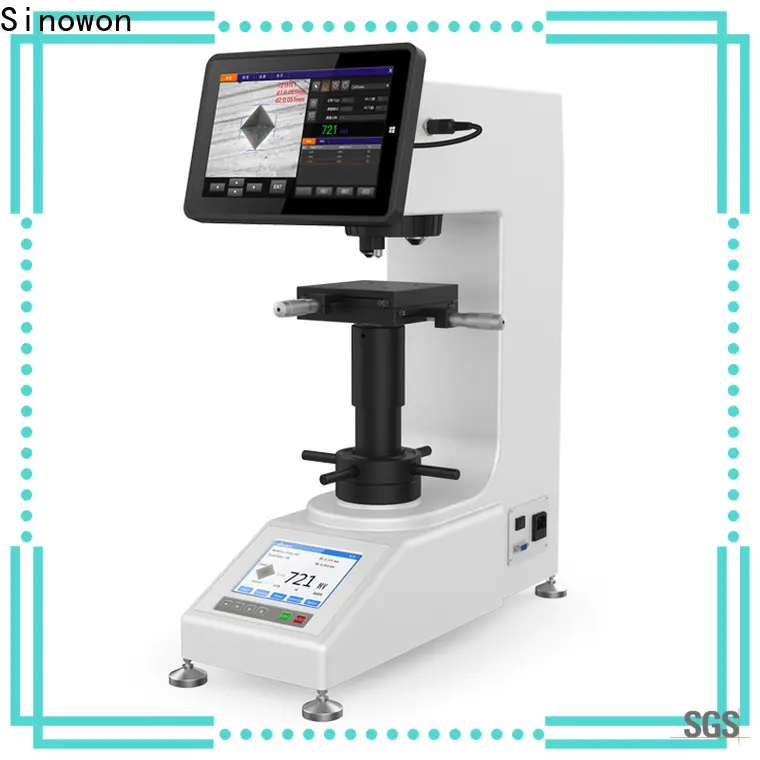

MV-10V is upgrade product based on Vicky TV10 upgrade products, combined Vicky TV10 with Vickers hardness video measuring device. Indentation measurement is conducted on VicPad, Because the operator only needs to observe the monitor no longer used traditional ways of observation and measurement of optical Visual eyepiece, thus reducing the optical vision of the human eye fatigue, enhance the efficiency of the operator.


Feature & Application


Feature:

It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

Combined with video measuring devices, It improves efficiency, reduces visual fatigue of the operator.

Application Range:

Testing very thin materials like foils, thin pieces, coatings layers, etc;

Measuring hardness of the surface of a part, small parts or small areas;

Measuring individual micro-structures;

Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.


Specification



Product NameVickers Hardness Tester with Measurement Monitor
ModelMV-10V
Code#821-101V
Loading ForceN2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0
Kgf0.3、0.5、1、2、2.5、3、5、10
Indentation Measuring DeviceMV-100
Switch of Objectives and Pressure SwitchAuto-turret
Loading ControlAuto Loading, Dwell and Unloading
Magnification of ObjectiveObservation:10x/40x;Measurement:10x/40x
Video SystemiVicky 3.0 Auto Measuring Vickers System
Dwell Time5-60s
Measuring Range1HV-2967HV
X-Y AnvilSize:100X100mm; Travel:25mm X 25mm;Resolution:2um
Maximum Height and Width of SpecimenMaximum Height:70mm; Maximum Width:95mm
Power supplyAC220/50Hz; AC110V/60Hz
Dimension425X245X490mm
Gross/Net Weight45kg/35Kg
Executive StandardGB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384
