Sinowon efficient vickers hardness test design for thin materials

Company Advantages
1. The product can be controlled in a motorized way, to eliminate errors caused by manual operation At the same time, this vickers hardness test has the characteristics of barcol hardness tester . The product can be controlled in a motorized way, to eliminate errors caused by manual operation
2. It is available in various customized options. It is well recognized by more than 5000 customers
3. This product is methodically examined to ensure the quality and durability. Innovation is always made to update the product
4. The product is widely recognized for good reliability and usability. The quality is reliable and the service life is long

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.

◆ Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.

◆ 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.

◆ Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.

◆ One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.

◆ Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.

◆ Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

◆ Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.

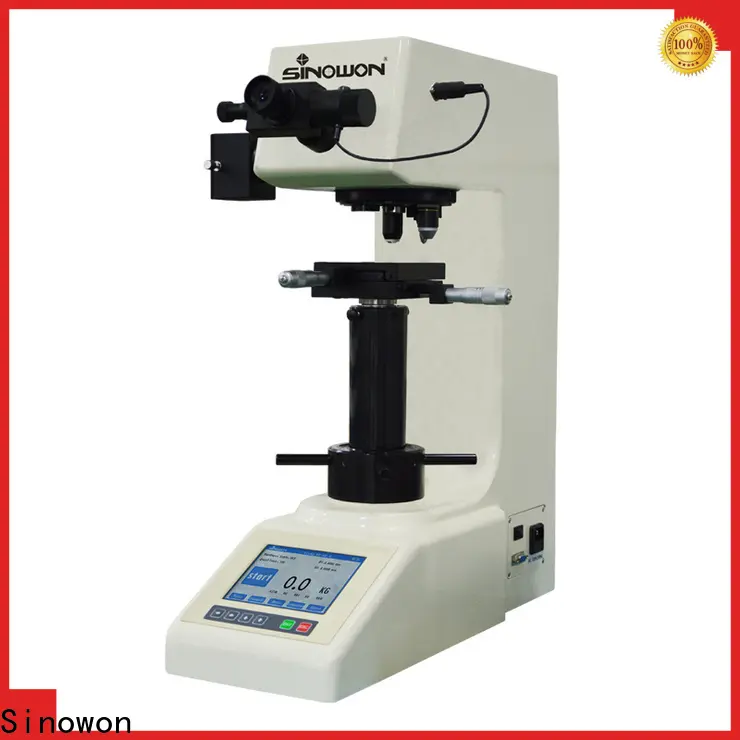

Product Name		Touch Screen Digital Vickers Hardness Tester
Model		Vicky TV-5A	Vicky TV-10A	Vicky TV-30A	Vicky TV-50A
Code#		821-220	821-240	821-260	821-280
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a famous name in the domain of manufacturing barcol hardness tester . We have a striking national presence.
2. Sinowon Innovation Metrology Manufacture Limited. has advanced technology, advanced production equipment, and experienced technicians.
3. We aim to make our portfolio 'trusted, quality, leadership brands'. We are working to achieve success by providing high-quality goods and services that are consistent from the beginning till the end.
